FERMOD KIT 5000 - 8 Motor Mounting

Kit5000_GB-A
8 - 90° MOTOR MOUNTING
Depending on the system installation, the space available in the right end rail can be short
for mounting the motor in its standard conguration .
In that event it’s possible to mount the motor in 90° direction.
- 26 -
Fermatic
2120-2130-2150
2320-2420
Fermatic
3430
3530-7530
. Rail preparing
. Belt adjuster
. Driving assembly
Follow the steps
6 to 6.3
pages 8 to 10
Follow the steps
7 to 7.2
pages 15 to 17
1
2
3

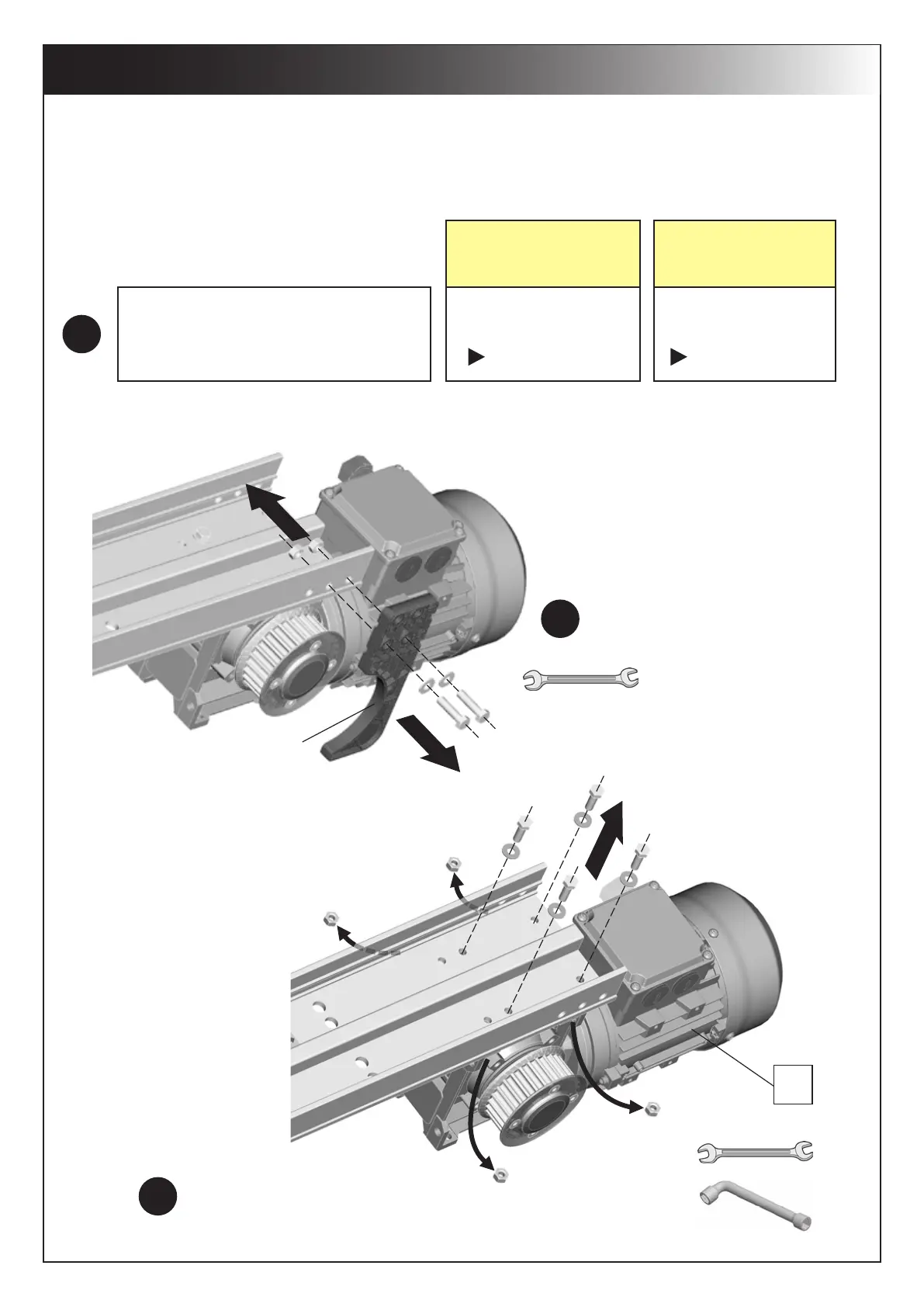

Remove the belt guide (A).
Separate the motor and its bracket.
M6
A
10
10
10
