Tighten the belt
PASSIVE EDGEMOUNT SECURITY Voir page 31
COMMAND BOX/WIRING/PARAMETERS Voir page 32
C
B
D
A
17
10

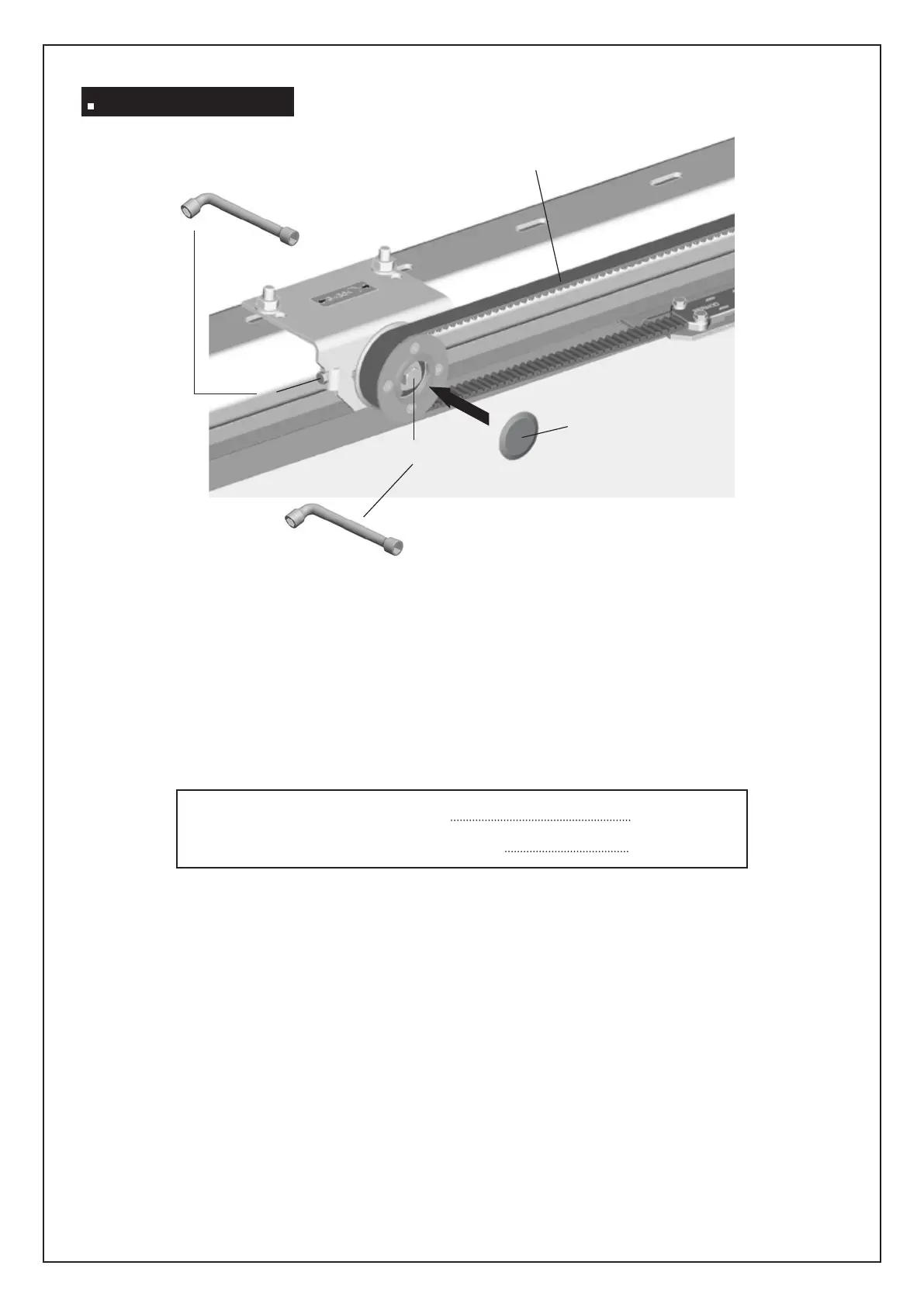

1 - Remove cover (A) with a screwdriver
2 - Loosen screw (B) of about 1/4turn
3 - Tighten the screw (C) of the belt adjuster to tighten the belt:
the upper strand (D) must be horizontal.
4 - When the belt is tensioned, block the screw (B) .
5 - Mount cover (A).
