FERMOD KIT 5000 - Door Driving Assembly

Kit5000_GB-A
- 17 -- 17 -

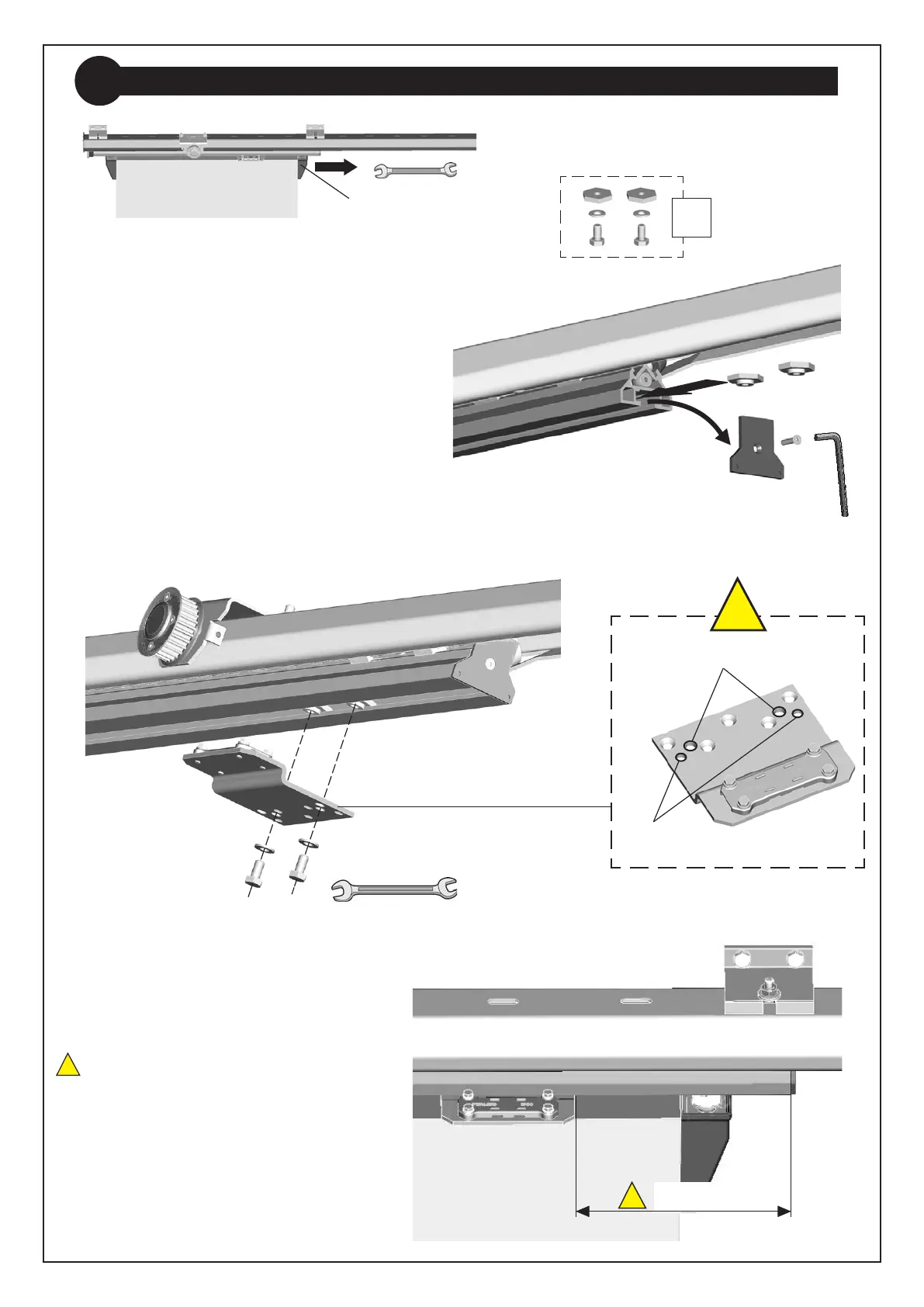

DOOR DRIVING ASSEMBLY
7.2
300
M5
5 - Fix the door driving assembly (M4)
under the mobile part with the 2
screws and washers from (M5).
Dimension 300 mm imperative.
6 - Mount the door bracket.
7 - Mount the end cover.
Remove the blocks.
!
!
When mounting a Kit 5000 onto a manual Fermatic
system already installed:
1 - Wedge the door.
2 - Remove the right end cover of the mobile part.
3 - Unscrew the door bracket/right side (A)
to remove it .
4 - Insert the 2 nuts from small bag (M5)
into the groove of the mobile part.
A
3530 - 7530
3430
!
30
4
17
