FERMOD KIT 5000 - Door Driving Assembly

Kit5000_GB-A
600
- 10 -
DOOR DRIVING ASSEMBLY
6.3
Central
bracket
M2
M1
Drilling
A
DOOR/OUTSIDE
1020
32,5
32,5
32,5
32,5
32,5
210
5 holes for
screws Ø 8
13
Fixing
M4
5 countersunk
screws Ø 8

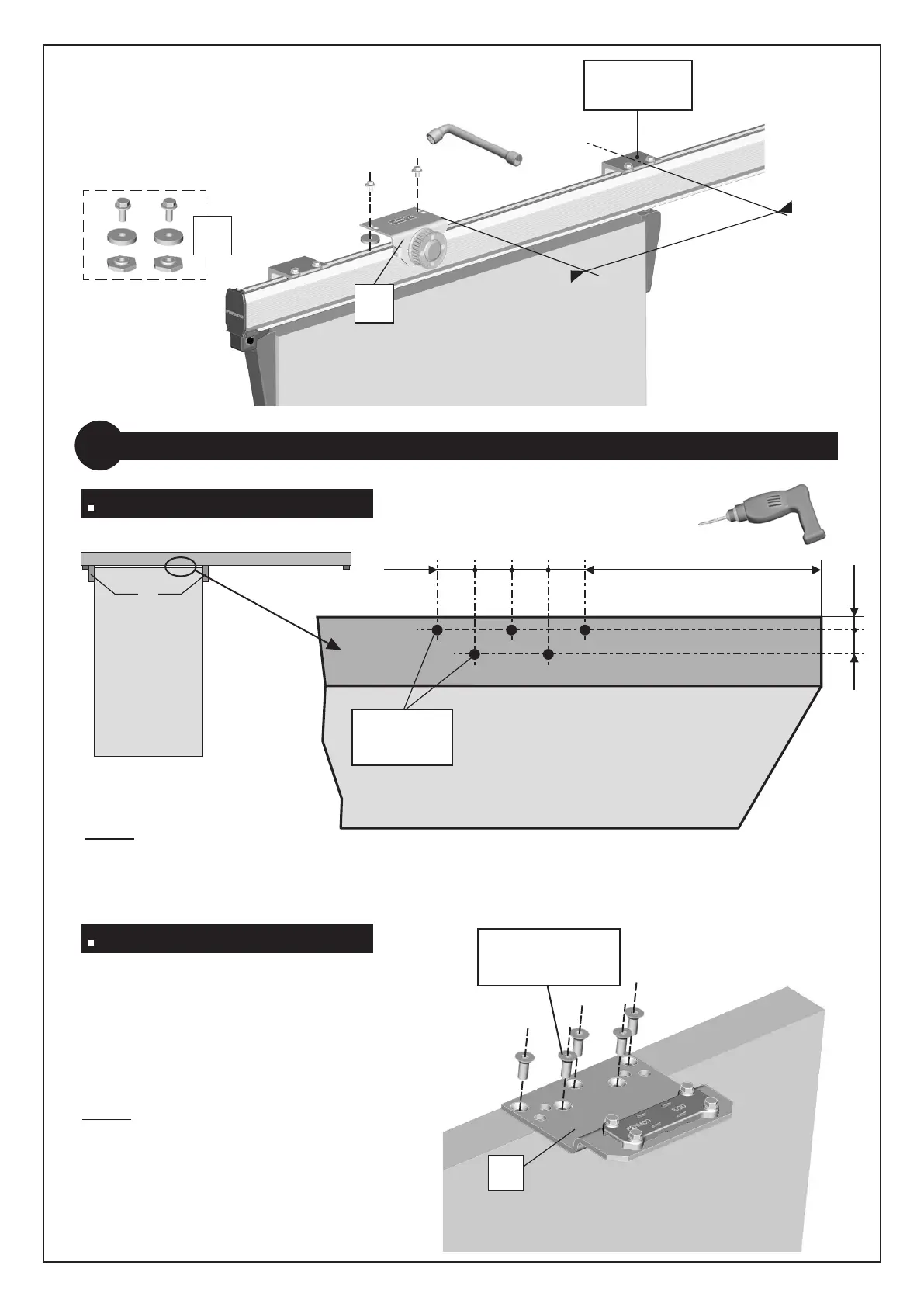

1 - Fix the belt adjuster (M1)
on the top of the rail:
600mm to central bracket.
Block the 2 screws.
Nota :
When mounting a Kit 5000 onto a manual Fermatic system already installed:
wedge the door, unscrew the 2 door brackets (A) and push them aside to access the upper edge
of the door.
1 - Fix door driving assembly (M4)
on the top of the door with
5 countersunk screws Ø8
(screws not supplied).
2 - Block the screws.
DOOR/OUTSIDE
Nota :
When mounting a Kit 5000 onto a
manual Fermatic system already installed:
mount the 2 door brackets (A) and block
them.
Remove the blocks.
