FERMOD KIT 5000 - Belt

Kit5000_GB-A
BELT
7.4
1
2
3
OK
- 24 -

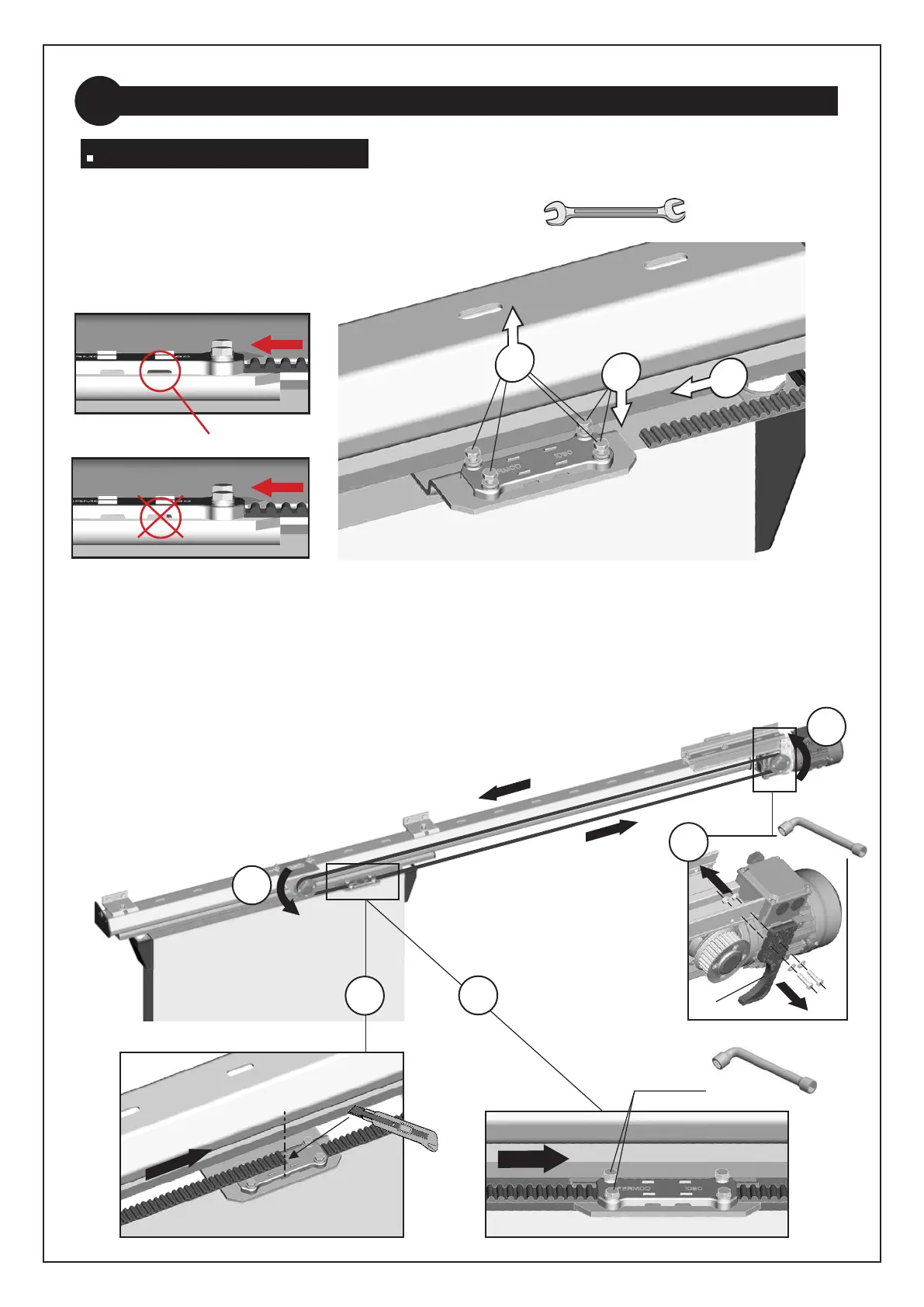

Link belt/door
1 - Unscrew the 4 screws of the driving assembly ange.
2 - Engage the belt into the ange to its middle.
3 - Tighten the 2 screws of the ange to block the belt.
8
5
5
6
7
8
Block
A
4
10
4 - Remove the belt guide (A).
5 - Engage the belt around the motor pulley, then around the belt adjuster pulley.
6 - Tighten the belt. Cut the belt at the middle of the driving assembly ange.
7 - Engage the belt into the ange as seen above.
Tighten the 2 screws of the ange to block the belt.
8 - Mount the belt guide (A).
