9 - LEFT SIDE MOTOR MOUNTING
- 28 -
Depending on the system installation, the space available in the right end rail can be short
for mounting the motor in its standard conguration .
In that event it’s possible to mount the motor left side of the rail.
Nota: The left side motor mounting is the same regardless of the opening side of the door.
Motor transformation

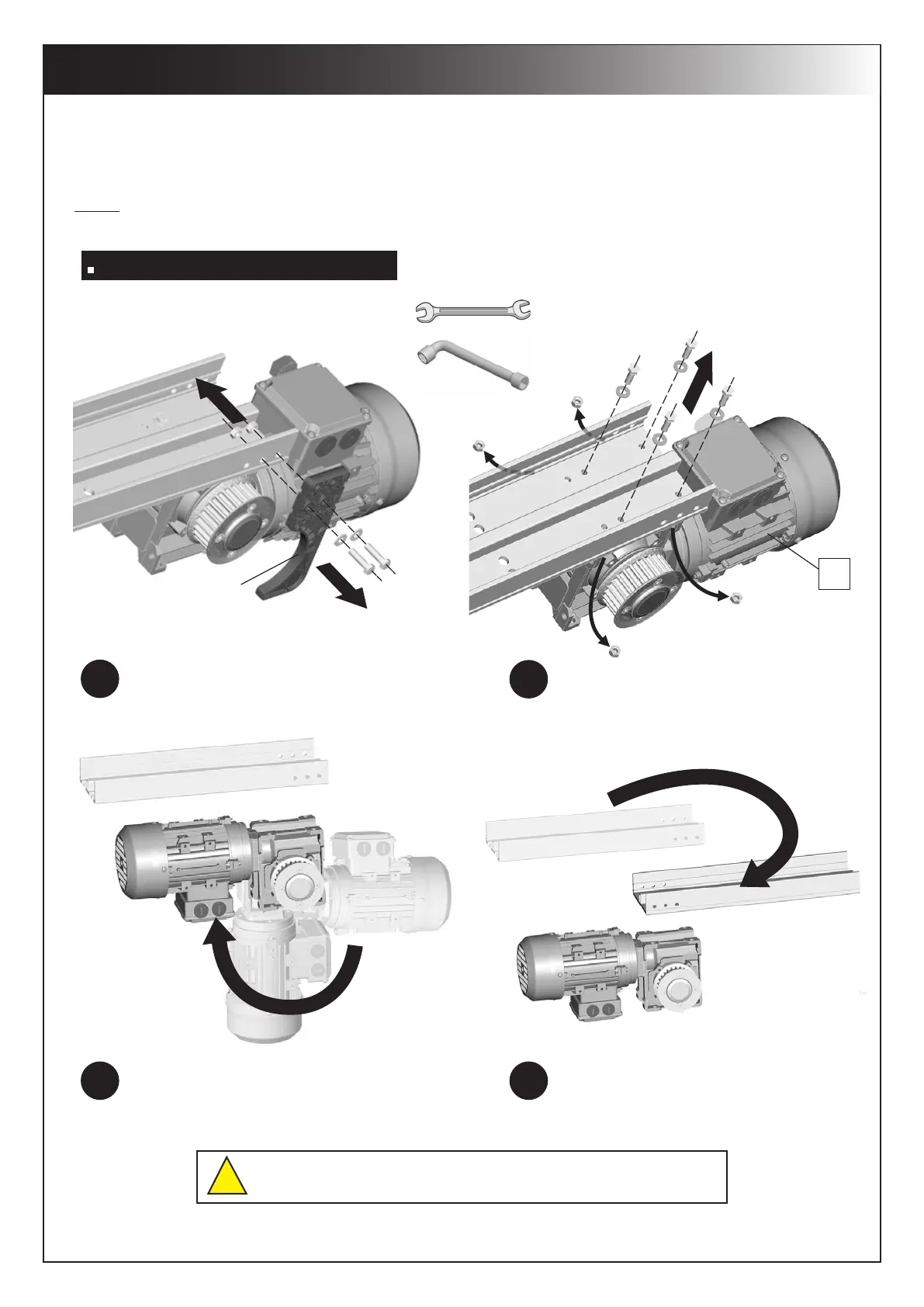

Remove the belt guide (A). Separate the motor and its bracket.
Rotate 180° to the motor. Rotate 180° to the motor bracket.
180°
3
1
4
2
180°
M6
10
10
DO NOT DISMOUNT THE PULLEY NOR THE ENCODER
!
