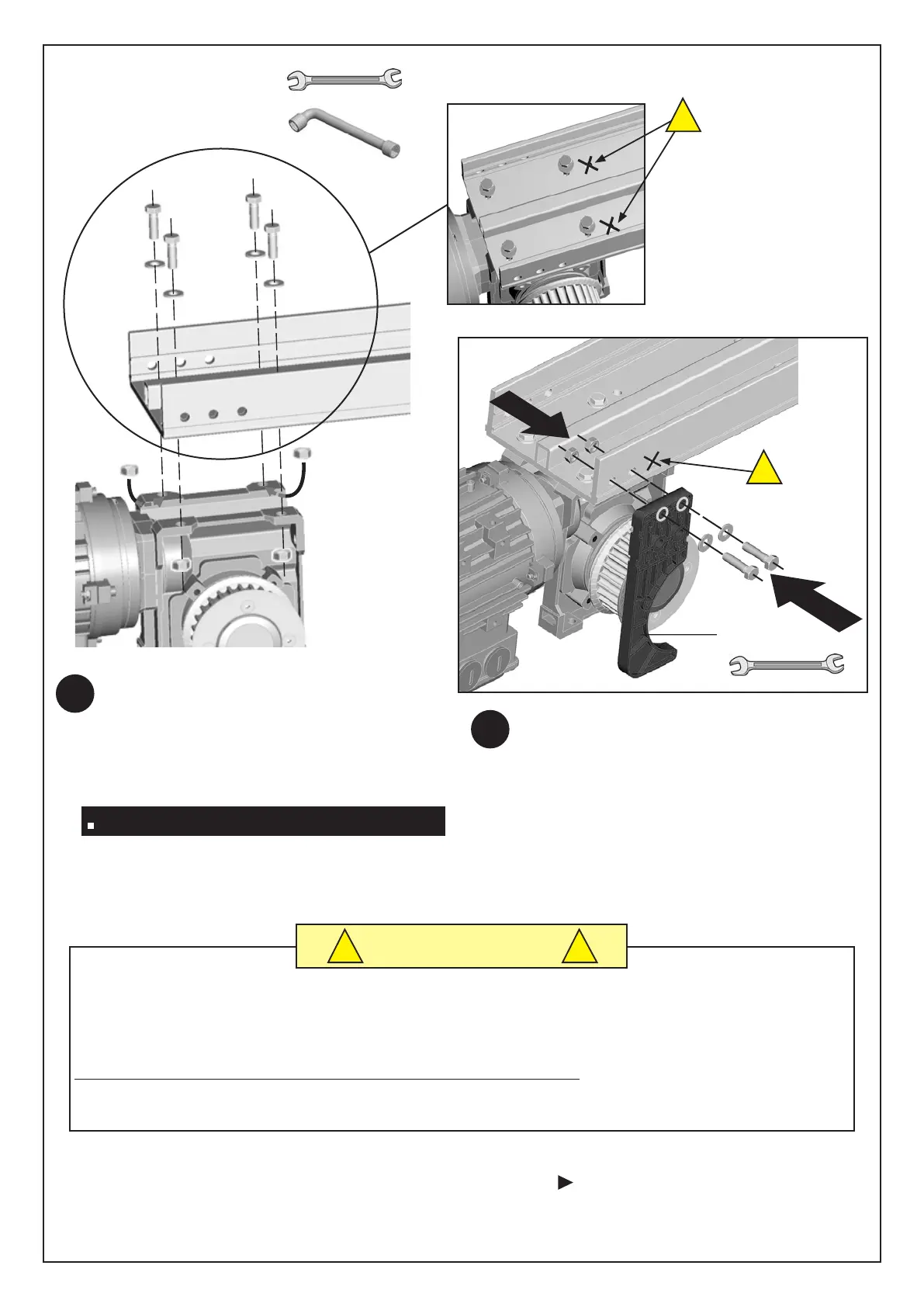

Fix the belt guide (A).
6
Mount the motor on it’s bracket.
5
!
A
!
For a left side motor mounting, it’s necessary to reverse the belt adjuster (M1) position and the
driving assembly (M4) position compared with standard mounting.
To mount the dierent parts of the Kit, see the drawings next page.
Remember to reverse the drawings of the standard mounting.
Reverse the adjustment screw (A) of the belt adjuster.
Left side motor mounting
WARNING
! !
- 29 -
10
10
10
See drawings next page
