FERMOD KIT 5000 - Motor; 7 Mounting Onto 3430; 3530; 7530 Systems

Kit5000_GB-A
Installation of the Kit 5000 • is the same regardless of the opening side of the
door. It’s recommended to install the motor right side of the rail.
Motor can be mounted in standard or 90° direction.•
90° MOTOR MOUNTING See page 26
Depending on the system installation, the space available in the right end rail•
can be short for mounting the motor in its standard conguration.
In that event it’s possible to mount the motor left side of the rail.
LEFT SIDE MOTOR MOUNTING See page 28
CAUTION
MOUNTING ONTO 2120 / 2130 / 2150 - 2320 / 2420 SYSTEMS ............... See page 8
Door driving
assembly p. 17
Motor
p. 18
- 15 -
Screws
M2
M1 M4 M6
M7 M8
M3
M5

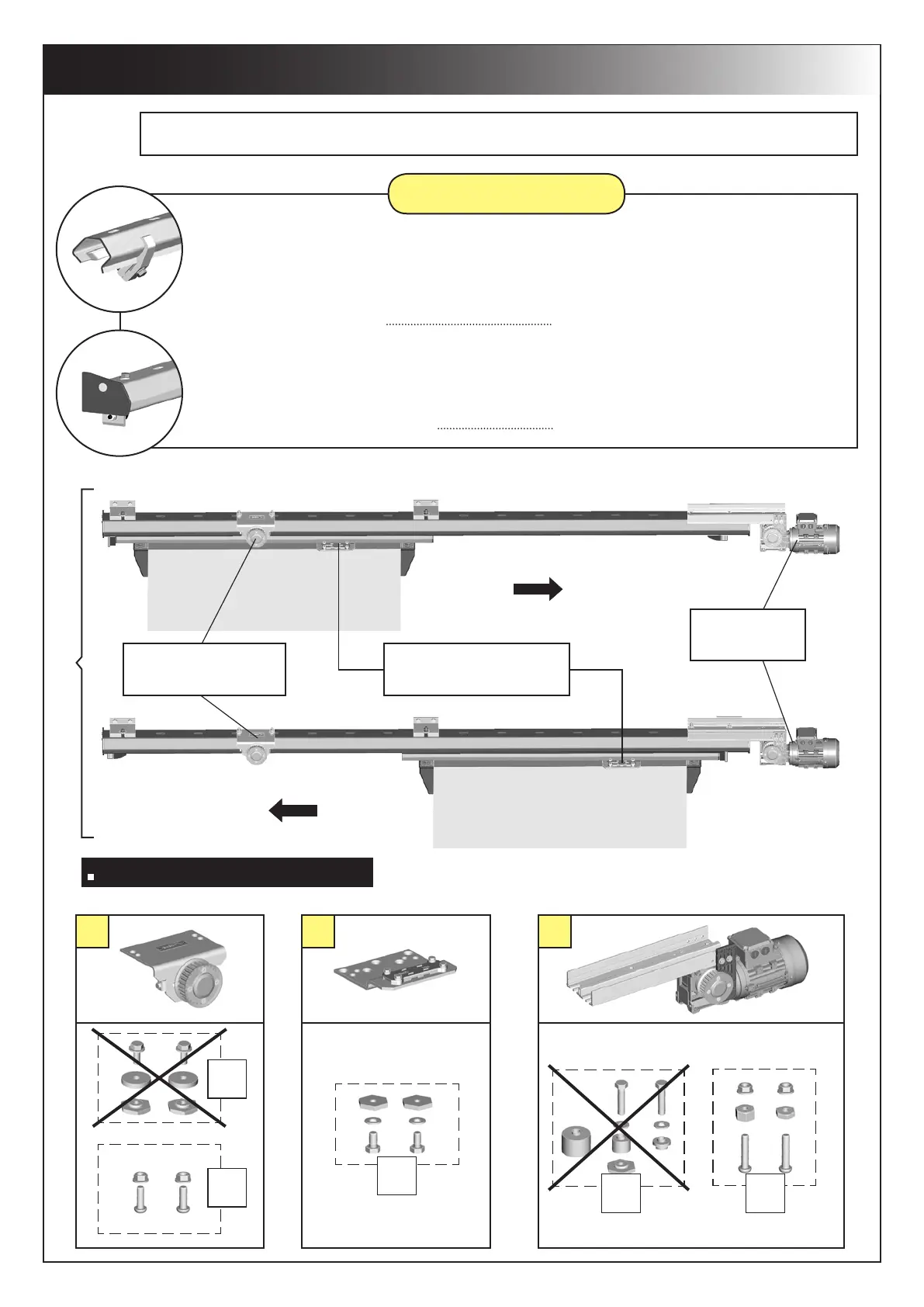

7 - MOUNTING ONTO FERMATIC 3430 / 3530 / 7530 SYSTEMS
3430
3530
7530
Belt adjuster
p. 16
STANDARD MOUNTING
Opening
side (RH)
Opening
side (LH)
