XT-Floating Extrication Device
CONFIGURATION OF THE EXTRICATION DEVICE
7.1 Preparation procedures
Warning!
Headfasteningsystems,triangularheadimmobiliserandchinstrapareattachedtothehead-endoatandtotheconnection
abovethemainoatsbymeansofspecialrings.

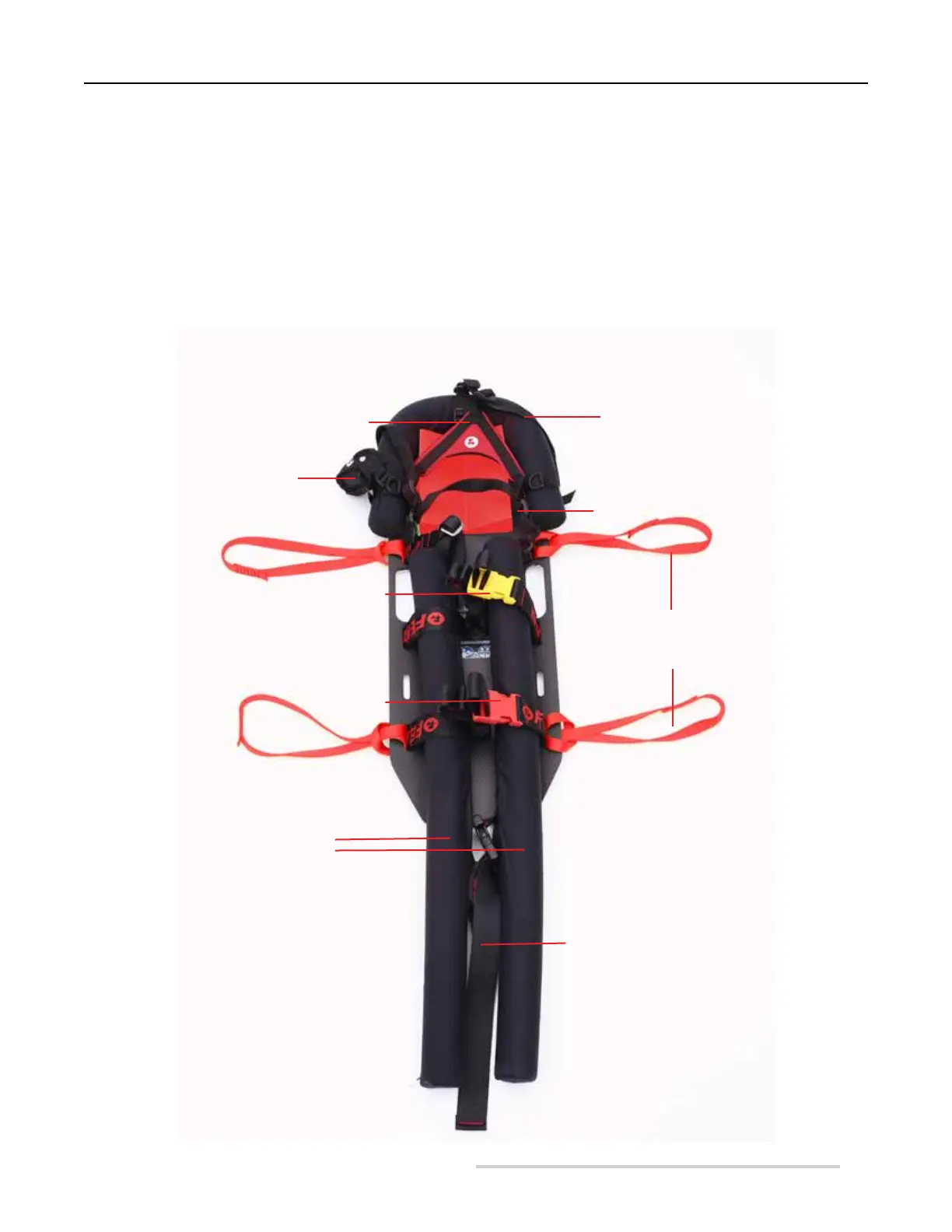

Figure 1 - Restraint conguration (operator view)
HEAD END
HEADEND
FLOAT
QHI HEAD CUSHION
CARRYING
HANDLES
TRIANGLE
HEAD IMMOBILISER
CHIN STRAP
YELLOW TRANSVERSE
RETAINING STRIP
RED TRANSVERSE
RETAINING STRIP
LONGITUDINAL RETAINING
STRIP
BREAST FLOATS
FOOT END
RIGHT
SIDE
LEFT
SIDE
