4  CONFIGURATION OF THE EXTRICATION DEVICE
4.1 QHI (Quick Head Immobilizer)
application
The Quick Head Immobilizer must be applied before using
the XT device.
1. Before its application, make sure that the extrication
deviceisplacedonaatsurfaceandthepartwheretheQHI
head immobilizer will be applied is clean and dry.
2.PeeloffthestickerlmplacedundertheQHI,ensuring
that the black part stays on the QHI (Figure 1A).
3. Centre the QHI (Figure 1B) on the upper part of the
extrication device, close to the head end hole no. 1 (to
identify the hole see Figure 4, page 10).
4. Press the QHI so that its sticker perfectly adheres to the
surface (Figure 1C).

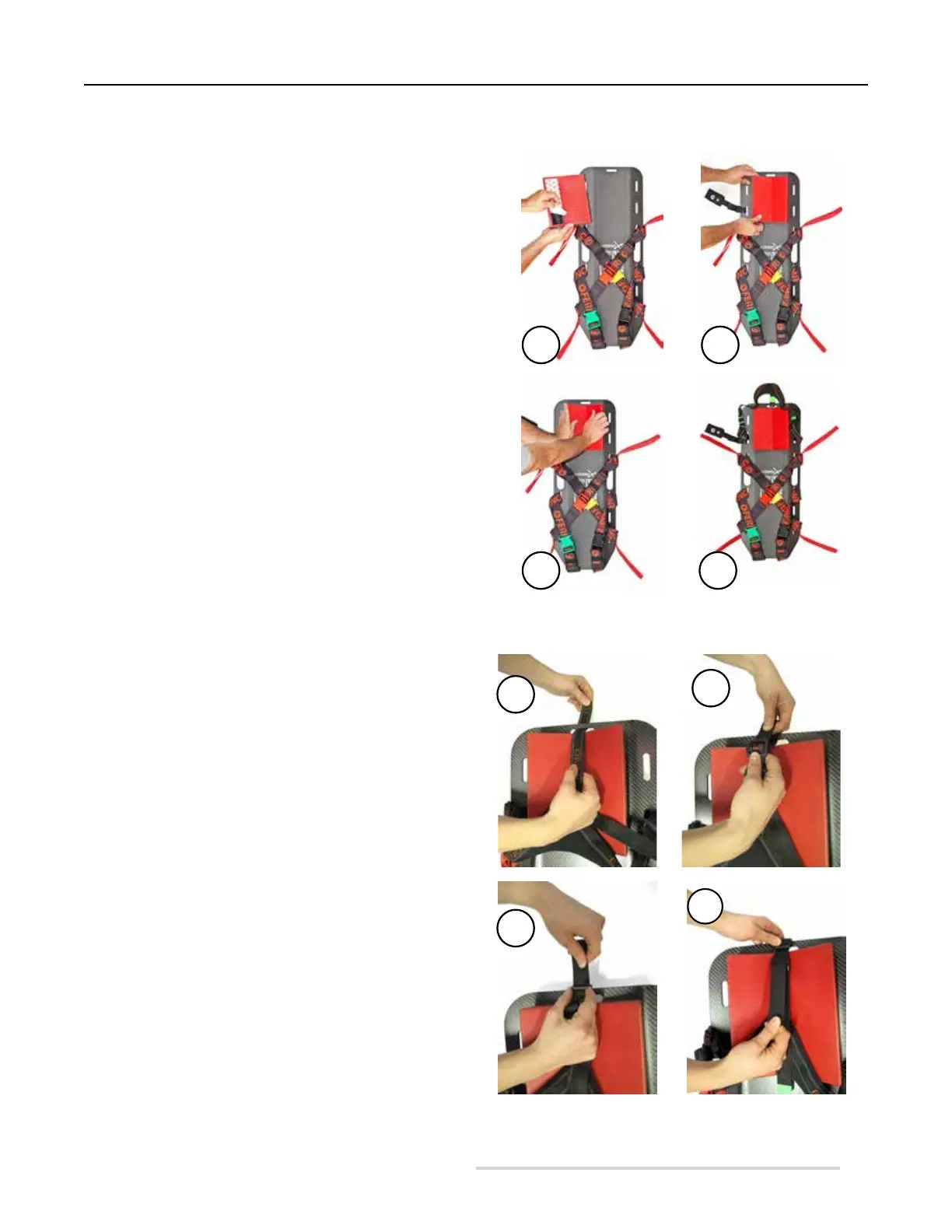

Figure 1 - QHI application
Detail 1D - QHI applied correctly
1A 1B
1C 1D
4.2 Triangular head immobiliser
application
In order to apply the triangular head immobiliser correctly,
follow these instructions. Starting from the top (head end):
1. Insert the strap (Figure 2A) in the head end hole from
inside the device.
2.Insert thestrap intherstloopof thefastening buckle
(Figure 2B).
3. Then insert it in the second loop (Figure 2C) and pull to
fasten the strap (Figure 2D).
2. Repeat the same operations with the other two straps in
the two side holes no. 3 and 14 (to identify the holes see
Figure 4, page 10).
2A
2B
2C
2D
Figure 2 - Triangular head immobiliser application
