ows into the oil tank underneath. The
remaining gases, thanks to the vacuum
generated by the engine, are aspirated
through the connection pipes and conveyed
to the plenum chambers.
A dedicated pipe in the system releases the
pressure that accumulates in the oil tank.
Replacing the engine oil and lter
The oil and lter must be replaced at the
intervals indicated in the Service Time
Schedule at an Authorised Ferrari
Service Centre.
It is recommended to exclusively use
lubricants approved by
Ferrari.

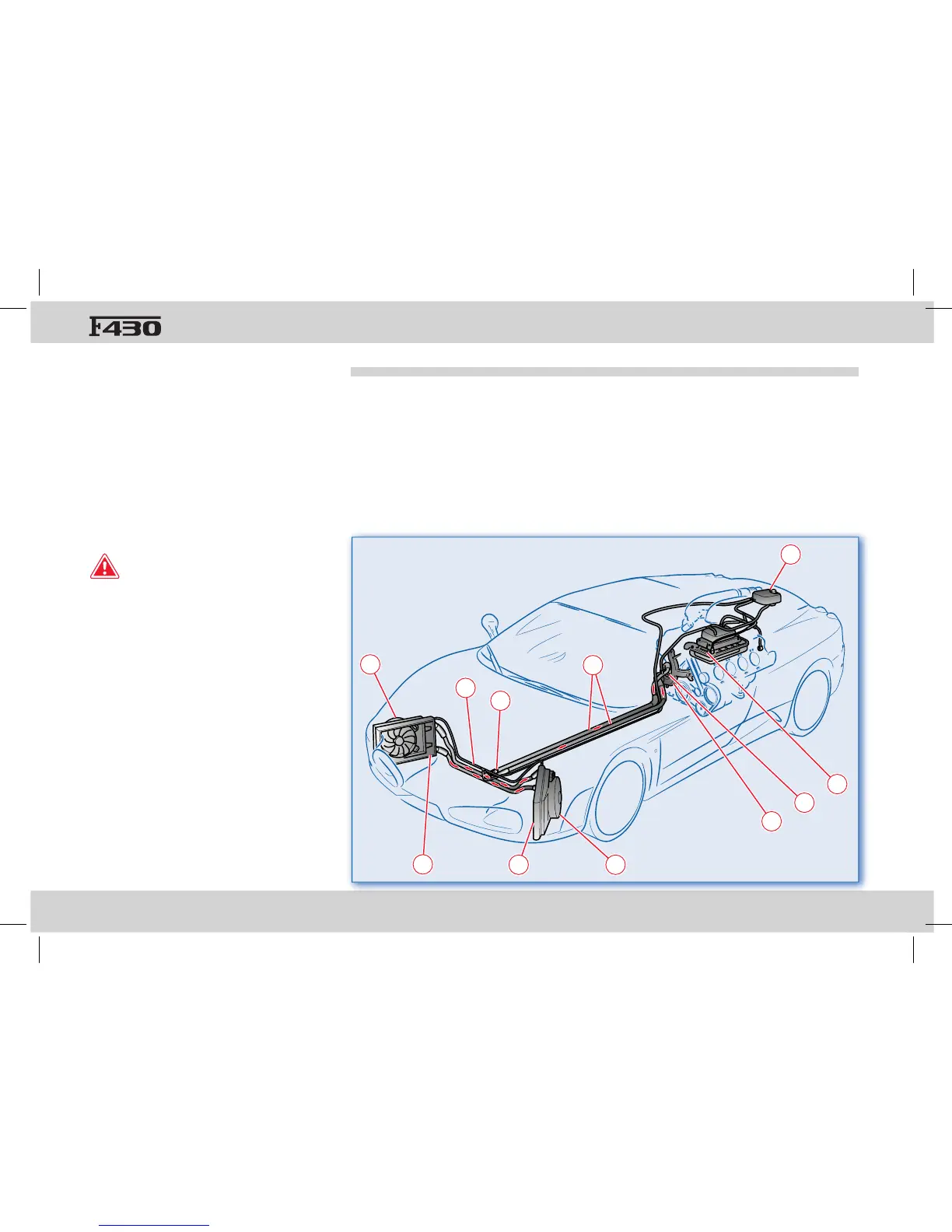

Centrifugal pump with thermostatic
valve
Right-hand radiator
Left-hand radiator
Electric fan
Bleeder pipe
Under oor pipes
Twin contact fan on/off switch
Water temperature sensor
Oil/water heat exchanger
Expansion tank
Cooling system
