Starting with the auxiliary battery
Use an external 12V battery with the same
power or slightly higher than the one
provided. A lead acid battery charger of
adequate power may be used by quali ed
persons only.
Use cables with suitable characteristics.
• First connect the terminals of one cable
to the positive poles (+) and then the
terminals of the other cable to the
negative poles (–) of the two batteries.
• Start the engine.
• When the engine has started, rst remove

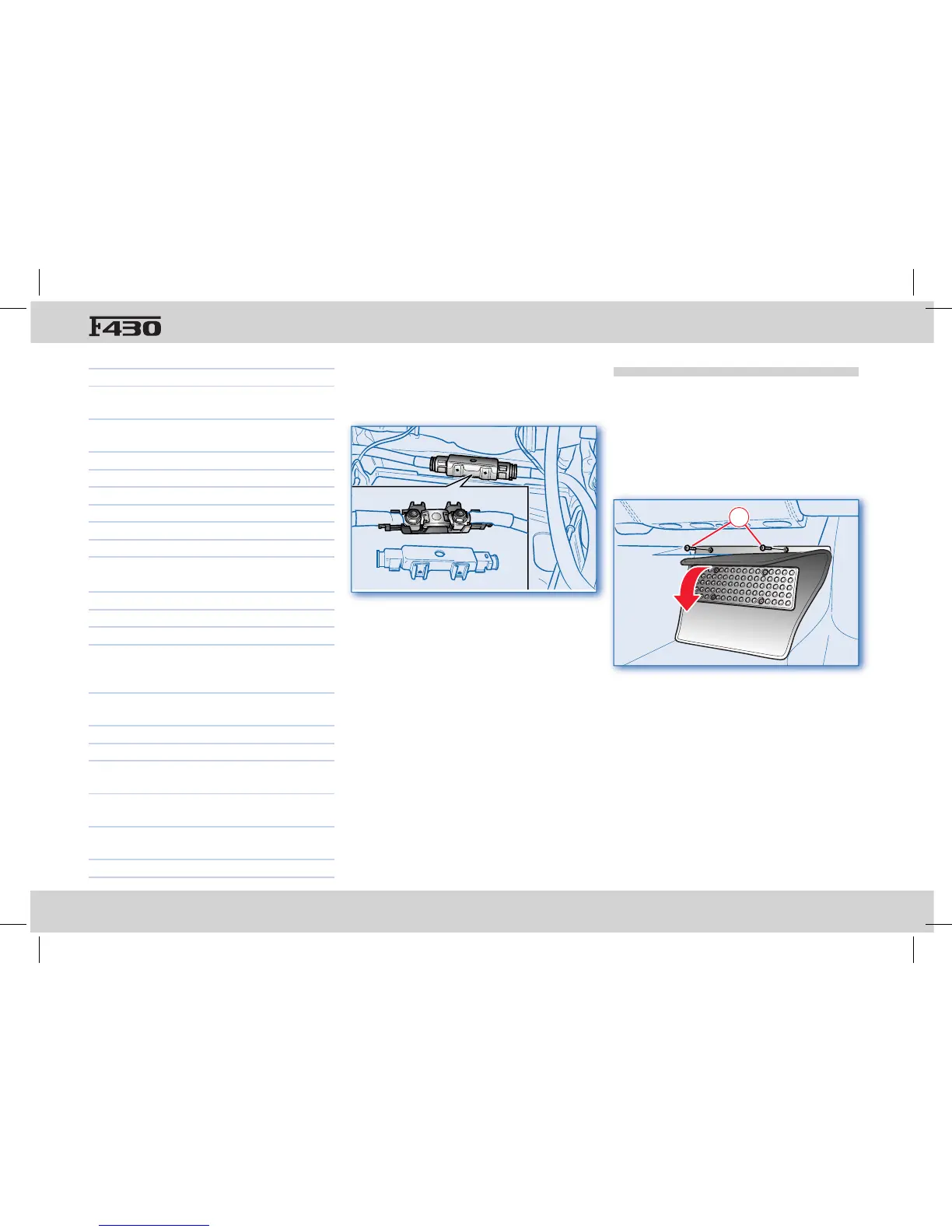

E - Megafuse
Located behind the battery, on the
connection cable between the alternator
and the battery positive terminal.
PSF23 30A LH Motronic. (main)
PSF24 15A Power socket
PSF25 15A +30 fuel pump relay 1 (PSR8)
and fuel pump relay 2 (PSR9)
PSF26 5A +15 connected devices relay
(excluding ignition)
PSF27 20A +Heated seats
PSF28 60A +30 rear LH module guard
PSF29 60A +30 rear RH module guard
PSF30 — Position available
PSF31 30A F1 Pump/E-DIFF
PSF32 — Position available
Relays:
PSR1 20A A.C. Compressor
PSR2 20A Reverse gear switch
PSR3 20A Key-operated devices
PSR4 20A Cutout switch for disabling
starting with battery charger
(normally closed)
PSR5 20A Connected devices switch
(excluding ignition)
PSR6 30A Starter motor
PSR7 20A Ignition anti-repeat
PSR8 20A LH fuel pump - Speed 1
(BOSCH)
PSR9 20A LH fuel pump. - Speed 2
(BOSCH)
PSR10 20A Main for LH Motronic
(BOSCH)
PSR12 50A F1 Pump
