diagnostic pump, anti-
evaporation valve
PSF13 10A +15 Air Conditioning system,
+15 recirculation pump
PSF14 30A Starter motor
PSF15 15A Ceiling light, door lights,
glove compartment lights,
parking light control
PSF16 15A LH ignition coil LH injectors
PSF17 — Position available
PSF18 — Position available
PSF19 15A A.C. compressor
PSF20 10A LH timing variator
PSF21 7,5A +30 LH Motronic
PSF22 10A Reverse light
PSF5 7.5A +15 shock absorber damping
(Skyhook), +15 alternator,
+15 electric differential
PSF6 15A +30 Door locking system
PSF7 30A +30 LH power window
PSF8 10A Positive from main LH
Motronic relay. (PSR10)
PSF9 10A +15 Airbag
PSF10 15A Battery charger
PSF11 10A +30 Engine control system
(OBD), +30 tyre pressure
monitoring system (TPMS),
+30 electronic differential
PSF12 15A Air ow meter, exhaust bypass
valves, anti-evaporation

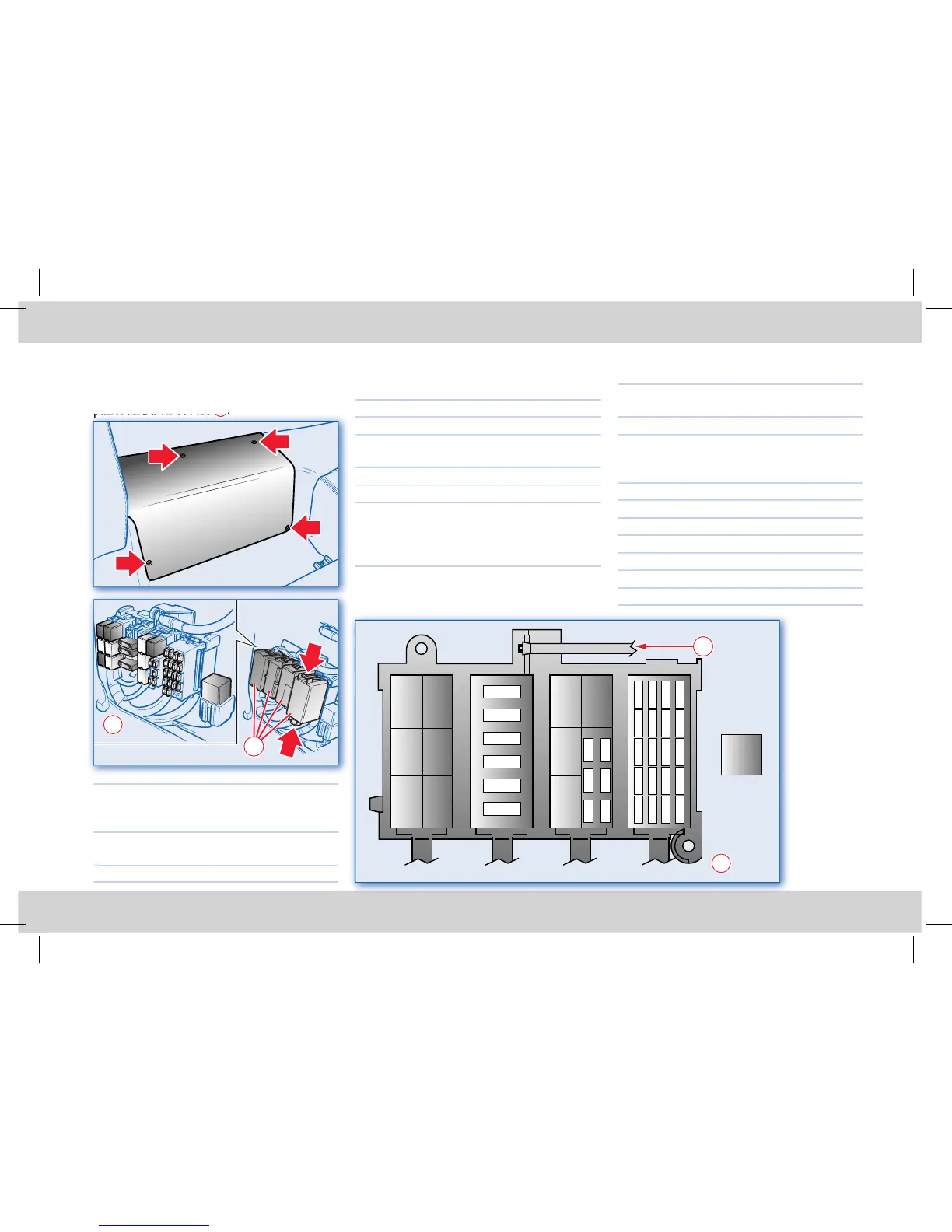

D - Left-hand side passenger compartment
fuses and relays
To access them, remove the protection
Fuses:
PSF1 10A +15 LH Motronic, +86 on LH
fuel pump relays. (PSR8 and
PSR9)
PSF2 20A F1 ECU
PSF3 30A +30 RH power window
PSF4 15A LH Lambda sensor
