Ferrari F430 - Page 92

92
   
   

  
 
 
 
   
   




































�

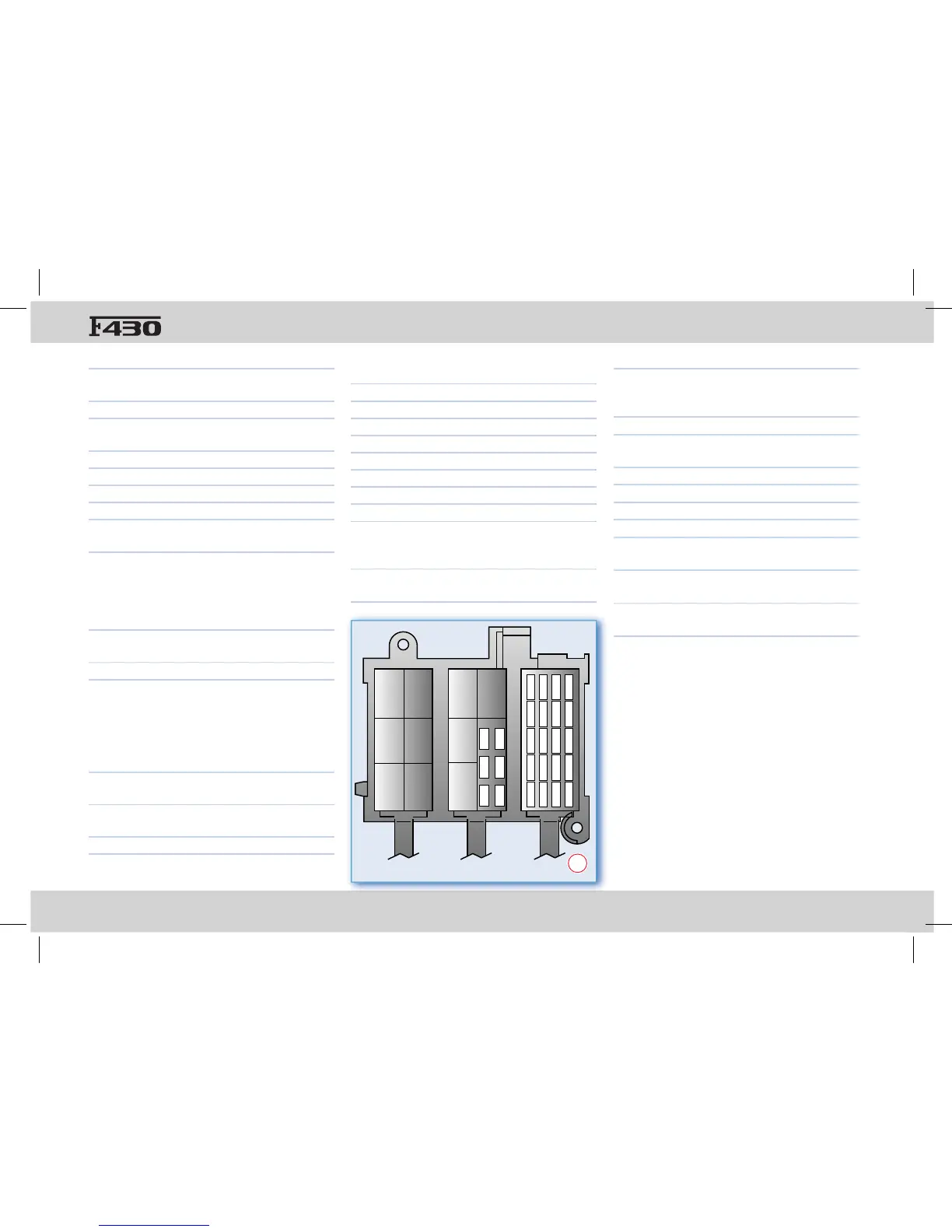

Fuses (MINI):
PDF1 10A +15 RH Motronic, Pin 86 on
PDR8 and PDR9 relays
PDF2 7,5A Rear fog lights
PDF3 7,5A External rear view mirror
defroster
PDF4 15A RH Lambda sensors
PDF5 15A Stop lights
PDF6 25A +30 Windscreen wiper
PDF7 30A Heated rear window
PDF8 10A Positive from main RH relay.
(PDR10)
PDF9 20A +15 Radio, rear view mirror
switch, fuel tank  ap,
direction indicators switch,
cigarette lighter, parking
sensors
PDF10 30A +30 Radio, radio ampli er ,
parking sensors
PDF11 — Position available
PDF12 15A Air  ow meter, exhaust
bypass valve, anti-
evaporation diagnostic
pump, anti-evaporation valve,
immobilizer relay, intake
manifold valve, A.C. relay
PDF13 5A +15 Alarm system,
immobilizer
PDF14 5A +30 Alarm system,
immobilizer
PDF15 — Position available
PDF16 15A RH ignition coils, RH
injectors
PDF17 15A Windscreen washer/ wiper
PDF18 15A +30 key
PDF19 — Position available
PDF20 10A RH Timing variators
PDF21 7,5 +30 RH Motronic
PDF22 — Position available
PDF23 30A RH Motronic (main)
PDF24 10A +15 ABS - ASR - ESP
PDF25 15A +30 Fuel pump relay 1
(PDR8) and fuel pump relay 2
(PDR9)
PDF26 10A +87 Tyre pressure monitoring
system (TPMS)
Relays:
PDR1 bosch
Immobilizer (spec. BOSCH
switch)
PDR2 30A Key-operated devices
PDR3 30A Heated rear window/ rear
view mirror defroster
PDR4 20A Rear fog lights
PDR5 30A +30 Windscreen wiper
PDR6 20A +15 Windscreen wiper
PDR7 20A +Heated seats
PDR8 20A RH fuel pump - Speed 1
(BOSCH)
PDR9 20A RH fuel pump. - Speed 2
(BOSCH)
PDR10 20A Main for RH Motronic
(BOSCH)
