13
Moving a lever forward (A) from the NEUTRAL position (B)
increases the FORWARD speed of the associated wheel, and
pulling back (C) on a lever increases the REVERSE speed.
Moving a levers outwards (D) from the NEUTRAL position
locks the levers in the NEUTRAL position.
Note: The further a lever is moved away from the neutral
position the faster the drive wheel will turn.
See the Zero-Turn Driving Practice section for steering
instructions.
Seat Adjustment Lever: The seat can be adjusted forward
and back. Move the lever towards the left, position the seat as
desired, and release the lever to lock the seat in position.
Transmission Oil Fill: Transmission oil is added through the
hydraulic oil tanks. It also serves as extra holding capacity
for oil as the transmissions heat up and the hydraulic oil
expands. See Check / Fill Transmission Oil for oil level check
and fill procedures.
Transmission Release Levers:
Icon Control Name
Transmission Release Levers
This unit is equipped with two transmission release levers.
The transmission release levers deactivate the transaxle
so that the unit can be pushed by hand. Both transmission
release levers must be in the same position whether you are
driving the unit or pushing it by hand. SeePushing the Unit by
Handfor operational information.
Fuel Tank Cap: To remove the cap, turn counter-clockwise.
Fuel Level Gauge: Displays the fuel level in the tank.
Removable Floor Plate: The floor plate can be removed
for easy access to the mower deck. To remove the plate,
remove the retainer hardware and tilt the floor pan up and
then remove from the machine. Reverse the process for re-
installation.

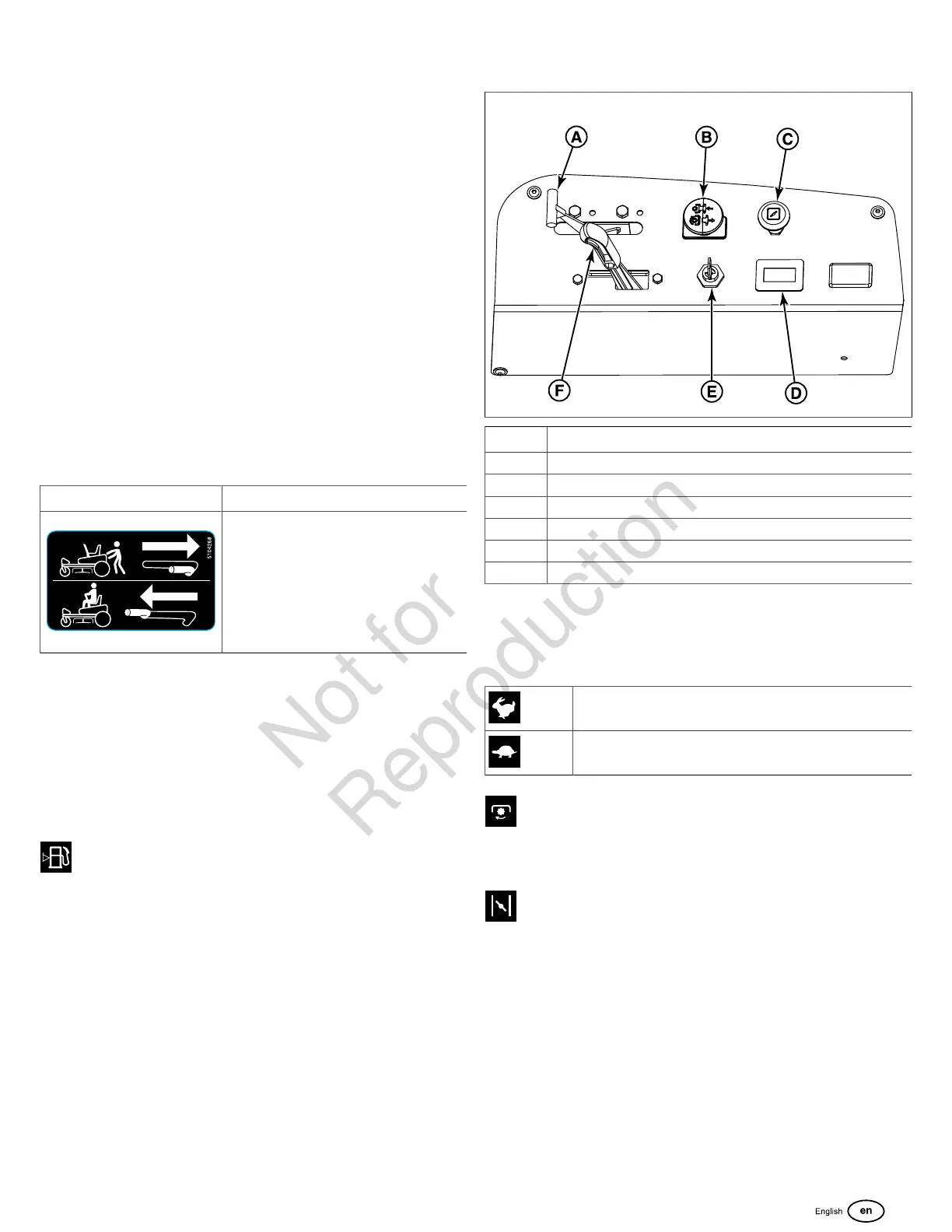

Instrument Control Panel
7
Callout Control Name
A Throttle Control
B PTO (Power Take Off) Switch
C Choke
D Hour Meter
E Ignition Switch
F Parking Brake
Throttle Control: The throttle controls engine speed. Move
the throttle forward to increase engine speed and back to
decrease engine speed. Always operate at FULL throttle
when mowing.
Fast throttle speed.
Slow throttle speed.
PTO (Power Take Off) Switch: The PTO switch
engages and disengages the mower blades. Pull UP on the
switch to engage, and push DOWN to disengage.
Choke: Close the choke for cold starting. Open the
choke once the engine starts. A warm engine may not require
choking. Pull the knob UP to close the choke. Push the knob
DOWN to open the choke.
Hour Meter: This unit is equipped with a dual function hour
meter that records the number of hours that the engine has
run and the number of hours that the PTO switch has been
engaged.
