68 EN
cod. 3540000272 - Rev. 01 - 01/2024
Connection with coaxial pipes

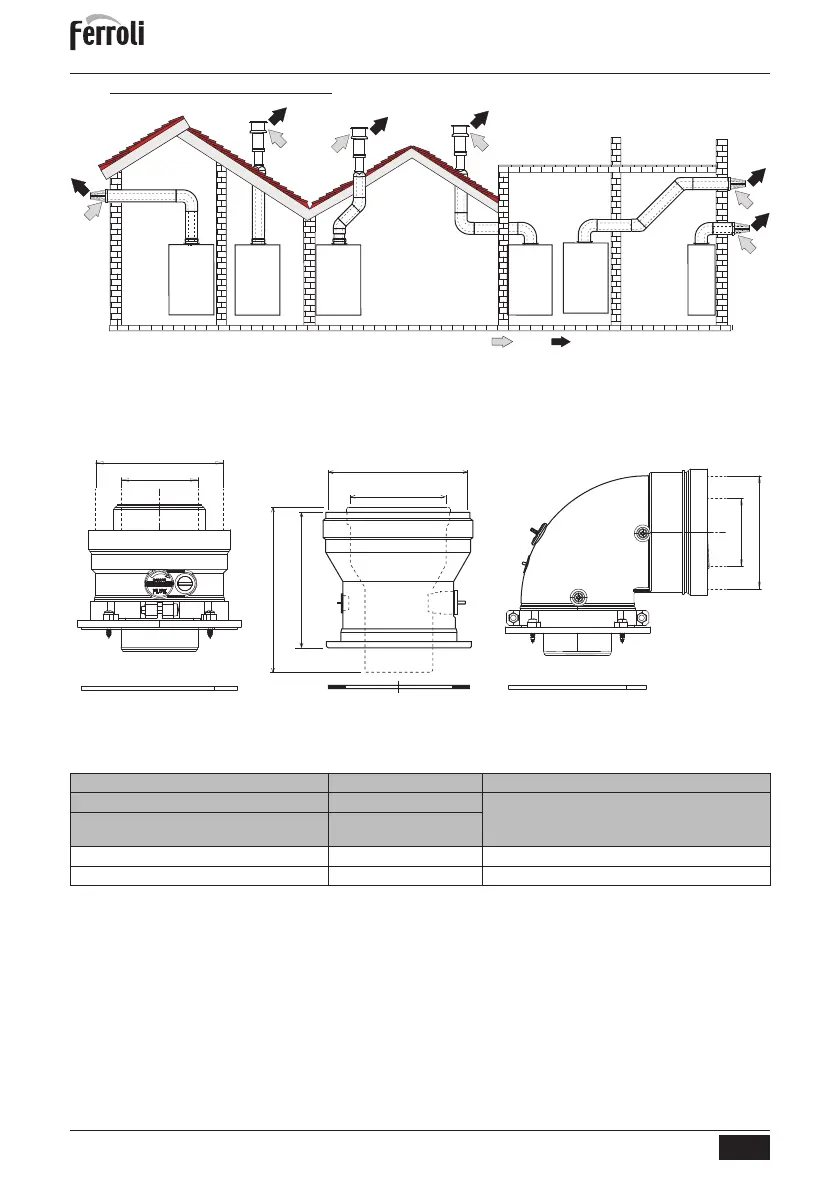

fig. 21- Examples of connection with coaxial pipes ( = Air / = Fumes)
For coaxial connection, fit the unit with one of the following starting accessories. For the wall hole
dimensions, refer to the figure on the cover. Any horizontal sections of the fume exhaust must be
kept sloping slightly towards the boiler, to prevent possible condensate from flowing back towards
the outside and causing dripping.
fig. 22- Starting accessories for coaxial ducts
Table 4- Max. length coaxial ducts
Coaxial 60/100 Coaxial 80/125
Max. permissible length (horizontal) All models 7 m 24 kW = 28 m
28 kW = 20 m
34 kw = 20 m
Max. permissible length (vertical) All models 8 m
Reduction factor 90° bend 1 m 0.5 m
Reduction factor 45° bend 0.5 m 0.25 m
C
1X
041006X0 041084X0041083X0
Ø 80
Ø 127
120
147
Ø 100
Ø 60
Ø 60
Ø 100
