4.2 General view

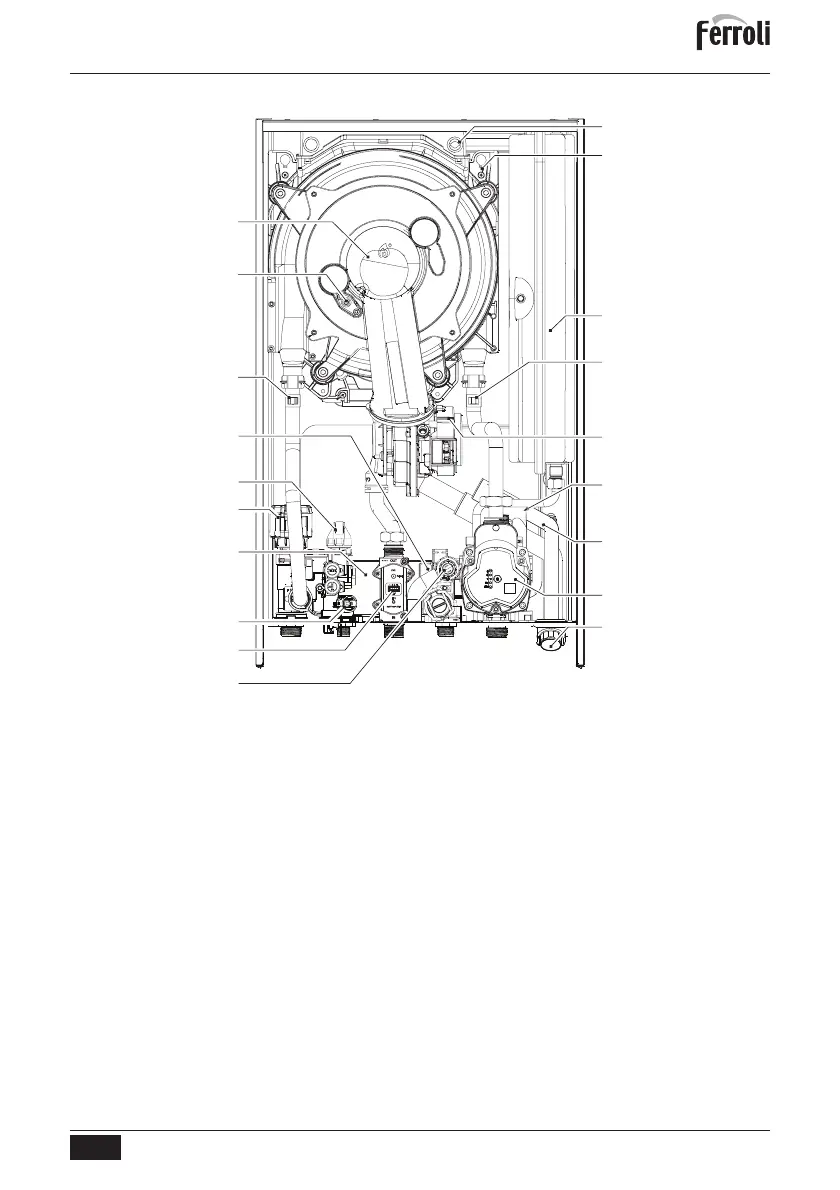

fig. 42- General view
14 Safety valve
16 Fan
32 Heating circulating pump
34 Heating temperature sensor
36 Automatic air vent
42 DHW temperature probe
44 Gas valve
56 Expansion vessel
81 Ionization/ignition electrode
95 Diverter valve
114 Water pressure switch
136 Flowmeter
145 Hydrometer
186 Return sensor
191 Fume temperature sensor
193 Trap
194 DHW exchanger
196 Condensate tray
350 Fan/Burner assembly
32
145
36
193
56
196
186
16
350
34
194
114
44
81
14
136
191
42
95
