Modello BlueHelix THETA 34 C
Key
7 Gas inlet - Ø 3/4”
8 DHW outlet - Ø 1/2”
9 Cold water inlet - Ø 1/2”
10 System flow - Ø 3/4”
11 System return - Ø 3/4”
74 System filling valve
145 Hydrometer
A6 Condensate discharge connection

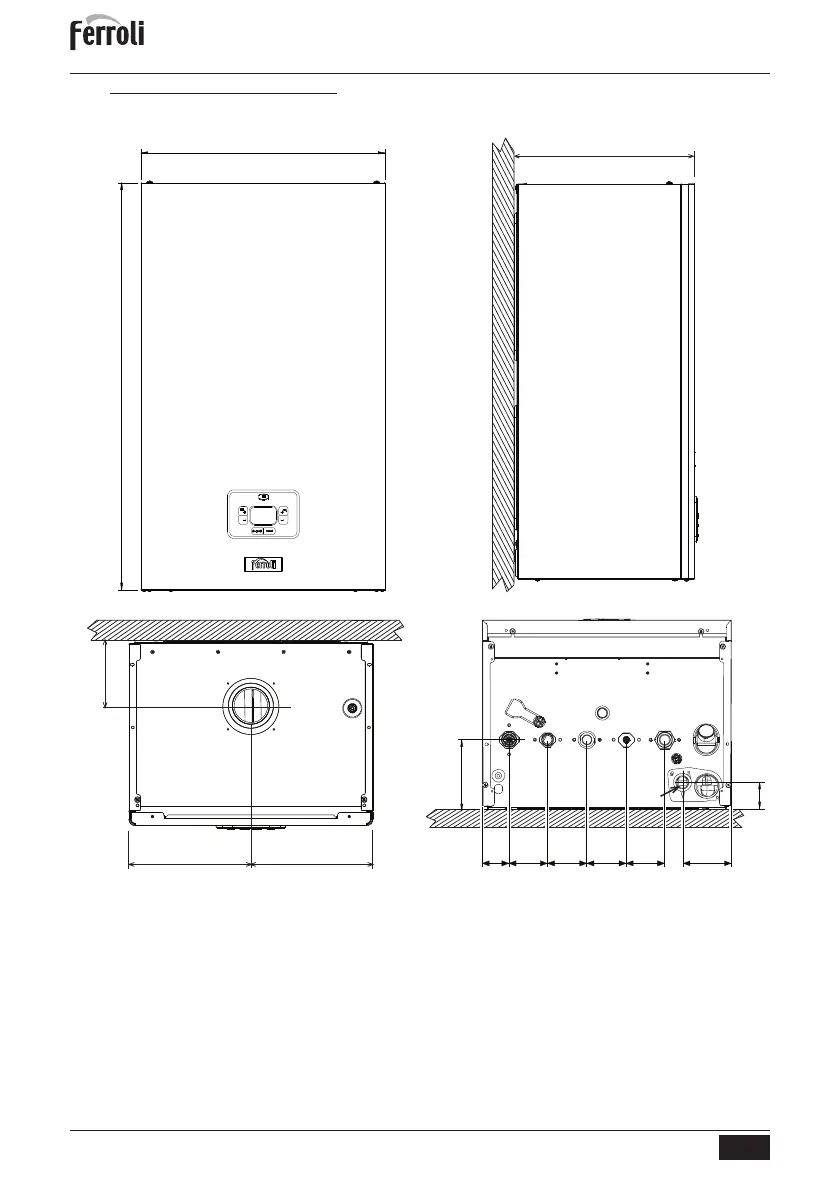

fig. 38 - Front view
fig. 39 - Side view
fig. 40 - Top view
fig. 41 - Bottom view
420
700
320
112
210 210
10 8 7 9
11
A6
74
145
120
45 65 67 67 65 80
40
