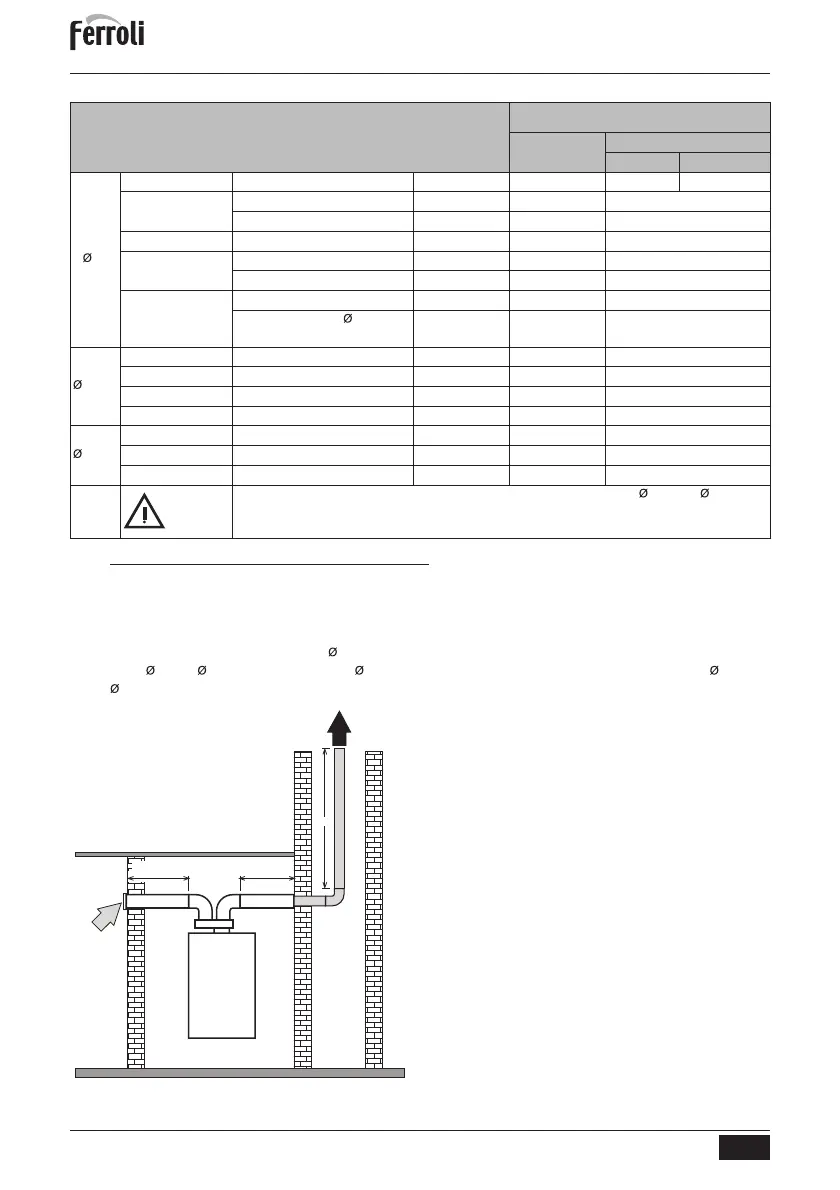

BLUEHELIX THETA C
70 EN
cod. 3540000272 - Rev. 01 - 01/2024
Table 7- Accessories
Use of Ø50 and Ø60 flexible and rigid pipes
The calculation shown in the tables below includes the starting accessories code 041087X0 for
Ø50 and code 041050X0 for Ø60.
Flexible pipe
It is possible to use up to 4 m of 80 mm flue between the boiler and the change to smaller diam-
eter ( 50 or 60), and up to 4 m of 80 mm flue on the intake (with maximum length of 50 and
60 flues).
fig. 25- Layout for ducting only with flexible pipe
BlueHelix THETA 24 C
Ø50 - 28 m MAX
Ø60 - 78 m MAX
BlueHelix THETA 28 C
Ø50 - 22 m MAX
Ø60 - 60 m MAX
BlueHelix THETA 34 C
Ø50 - 17 m MAX
Ø60 - 45 m MAX
Losses in m
eq
Air
intake
Fume exhaust
Vertical Horizontal
80
PIPE 1 m M/F 1KWMA83W 1.0 1.6 2.0
BEND 45° M/F 1KWMA65W 1.2 1.8
90° M/F 1KWMA01W 1.5 2.0
PIPE SECTION with test point 1KWMA70W 0.3 0.3
TERMINAL air, wall 1KWMA85A 2.0 -
fumes, wall with antiwind 1KWMA86A - 5.0
FLUE Split air/fumes 80/80 010027X0 - 12.0
Fume outlet only 80 010026X0 +
1KWMA86U
-4.0
60
PIPE 1 m M/F 1KWMA89W 6.0
BEND 90° M/F 1KWMA88W 4.5
REDUCER 80/60
041050X0 5.0
TERMINAL fumes, wall with antiwind 1KWMA90A 7.0
50
PIPE 1 m M/F 041086X0 12
BEND 90° M/F 041085X0 9
REDUCER 80/50
041087X0 10
ATTENTION: CONSIDER THE HIGH PRESSURE LOSSES OF 50 and 60
ACCESSORIES, USE THEM ONLY IF NECESSARY AND AT THE LAST FUME
EXHAUST SECTION.
max 4 m
Ø80
max 4 m
Ø80
A
