Festo CPX-CMAX-C1-1 Brief Description

Festo CPX-CMAX-C1-1 2019-02a English
4

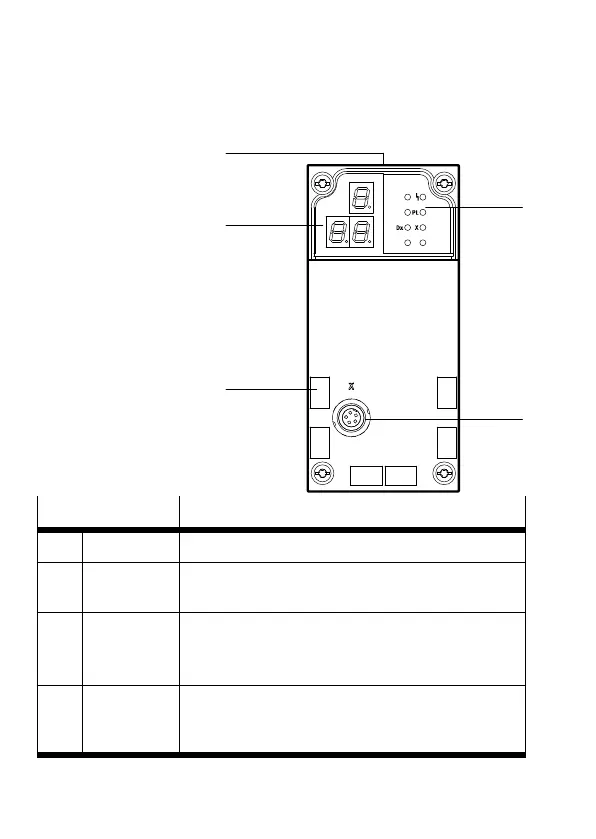

2 Connection and display components
1 Status LEDs
2 X: Axis connection
3 Identification labels
(accessories)
4 Display: 3-digit
display (see system
manual for the
CMAX)
5 Rating plate
seeside
1
3
4
5
2
Status LEDs Description
P
Error (red) CMAX error message
PL Power load
(green)
Load voltage supply for valves (V
VAL
)
Dx Display axis
(green/red)
If green is lit: Displays operating status
If red is lit: Displays malfunction
Off: No display for X axis
X MC axis
(green)
If green is lit: Positioning job completed (MC = 1)
Off: Positioning job active (MC = 0) or
initialisation
Normal operating status: PL lights up yellow,
P
does not light up.

Festo CPX-CMAX-C1-1 Specifications

General

Brand	Festo
Model	CPX-CMAX-C1-1
Category	Controller
Language	English
