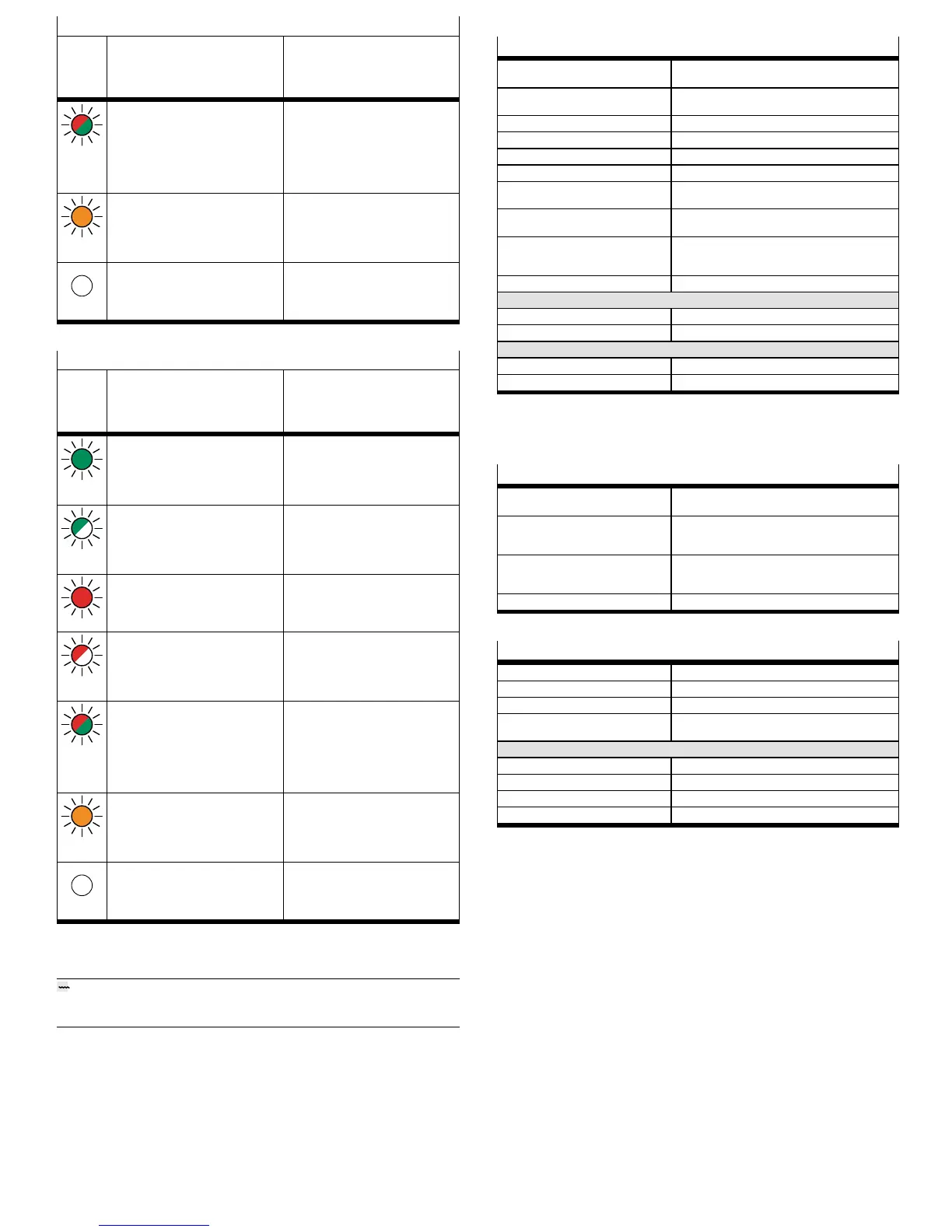

Module status [MS]
LED
(green,
red,
orange)
Meaning Remedy
Flashing
altern-
ately
red/green
The automation system CPX-E is in self-
test mode.
–
Lit up
orange
Bootloader –
Off
No logic power supply to the network
interface
Check logic supply.
Tab. 15 Module status [MS]
Network status [NS]
LED
(green,
red,
orange)
Meaning Remedy
Lit up
green
The automation system CPX-E is online
and has a network connection (normal
operating status).
–
Flashing
green
The automation system CPX-E is online
and has received an IP address but does
not have a configured network connection.
Check configuration of the automation
system CPX-E; it is possible that the auto-
mation system CPX-E is not assigned to a
master/scanner.
Lit up red
Communication has failed.
Non-permitted IP address set that is
already used in the network.
Correct IP address.
Flashing
red
One or more “I/O connections” are in the
“time-out state”.
Check the physical connection to the
master/scanner.
Flashing
altern-
ately
red/green
The automation system CPX-E is in self-
test mode.
–
Lit up
orange
Bootloader, if the LED[MS] is also lit up
orange è Network-specific LED indicators
–
Off
The automation system CPX-E is offline.
No IP address assigned or no IP address
received from DHCP server.
Check network connection.
Check IP addressing settings.
Tab. 16 Network status [NS]
12 Disposal
ENVIRONMENT!
Send the packaging and product for environmentally sound recycling in accord-
ance with the current regulations èwww.festo.com/sp.
13 Technical data
General technical data
General technical data
Automation system CPX-E
Description of automation system CPX-E
è 1.1 Further applicable documents
Dimensions
(Length × width × height)
1)
[mm] 124.3 × 75.9 × 82.5
Product weight
2)
[g] 288
Mounting position Vertical/horizontal
Ambient temperature [°C] –5…+60 (–5…+50)
3)
Storage temperature [°C] –20…+70
Air humidity
(non-condensing)
[%] 0…95
Degree of protection in accordance with
EN60529
IP20
Protection against electric shock
(Protection against direct and indirect
contact in accordance with IEC60204-1)
through the use of PELV circuits
(protected extra-low voltage)
Electromagnetic compatibility to EN61000-6-2/-4 and NE21
Module code/submodule code
CPX-E-CEC-C1-EP 222/102
CPX-E-CEC-M1-EP 222/103
Module identification
CPX-E-CEC-C1-EP E-CEC-C1-EP
CPX-E-CEC-M1-EP E-CEC-M1-EP
1) Including cover, not including linking element
2) Including linking element
3) for horizontal mounting position
Tab. 17 General technical data
Power supply
Operating voltage supply
U
EL/SEN
[VDC] 24_25 %
Intrinsic current consumption
at nominal operating voltage
24V from U
EL/SEN
[mA] typ. 150
Reverse polarity protection
24V U
EL/SEN
against
0V U
EL/SEN
Yes
Mains buffering time [ms] 20
Tab. 18 Power supply
Network-specific data
Protocol EtherNet/IP
1)
, EtherCAT
Transmission rate [Mbps] 10/100 (full duplex/half duplex)
Crossover detection Auto-MDI/MDI-X
Maximum cable length per
segment
[m] 100
2)
Cable specification
Cable type Ethernet twisted pair cable, shielded
Transmission class Category Cat5/Cat5e (linkclass)
Cable diameter [mm] 6…8
Wire cross section [mm
2
] 0.14…0.75; 22AWG
3)
1) based on the Ethernet protocol IEEE802.3
2) at a transmission rate of 100Mbps
3) Required for maximum connection length between network participants
Tab. 19 Network-specific data
