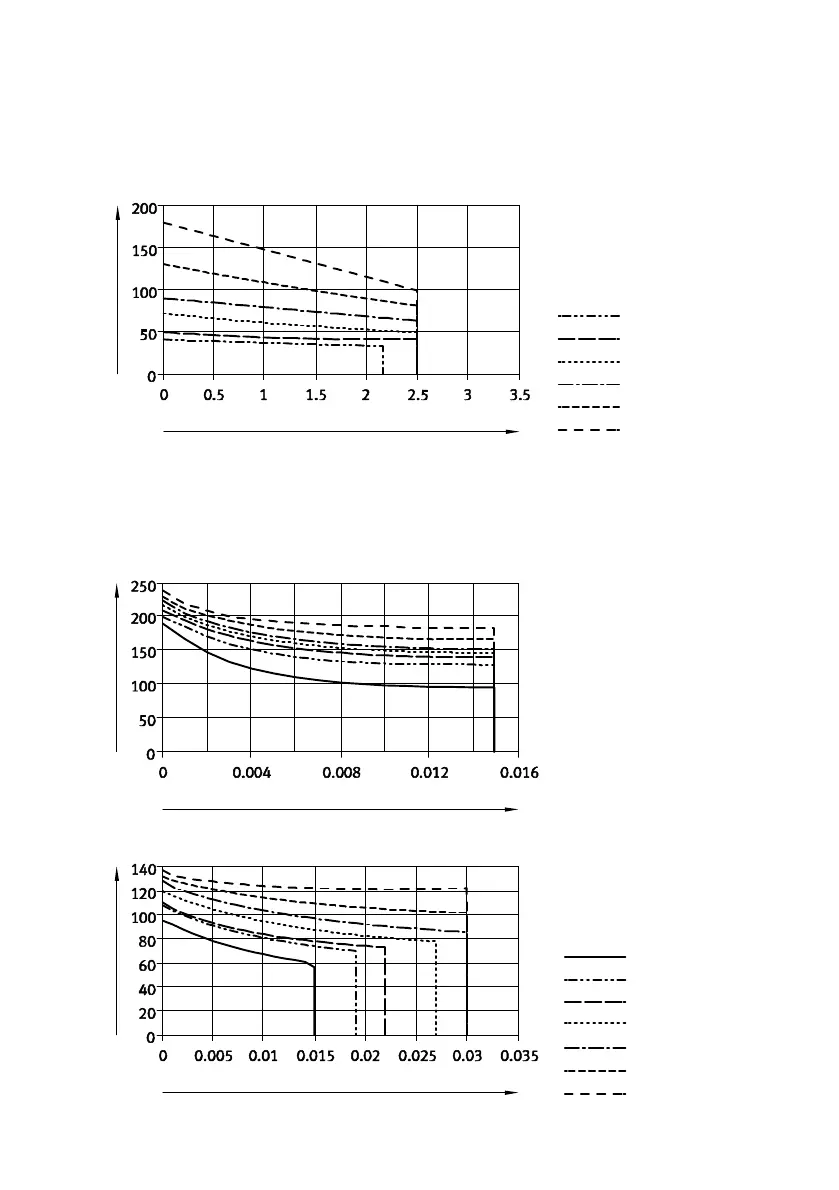

Switching frequency f as a function of mass moment of inertia J
Size 220
f [1/min]
J [kgm
2
]
3 indexing stations
4 indexing stations
6 indexing stations
8 indexing stations
12 indexing stations
24 indexing stations
Max. permissible cycle frequency f as a function of mass moment of inertia J
Size 65
f [1/min]
J [kgm
2
]
Size 90
f [1/min]
J [kgm
2
]
2 indexing stations
3 indexing stations
4 indexing stations
6 indexing stations
8 indexing stations
12 indexing stations
24 indexing stations
