Festo DHTG - Operating elements and connections

DHTG
4 Festo – DHTG – 2018-02e English

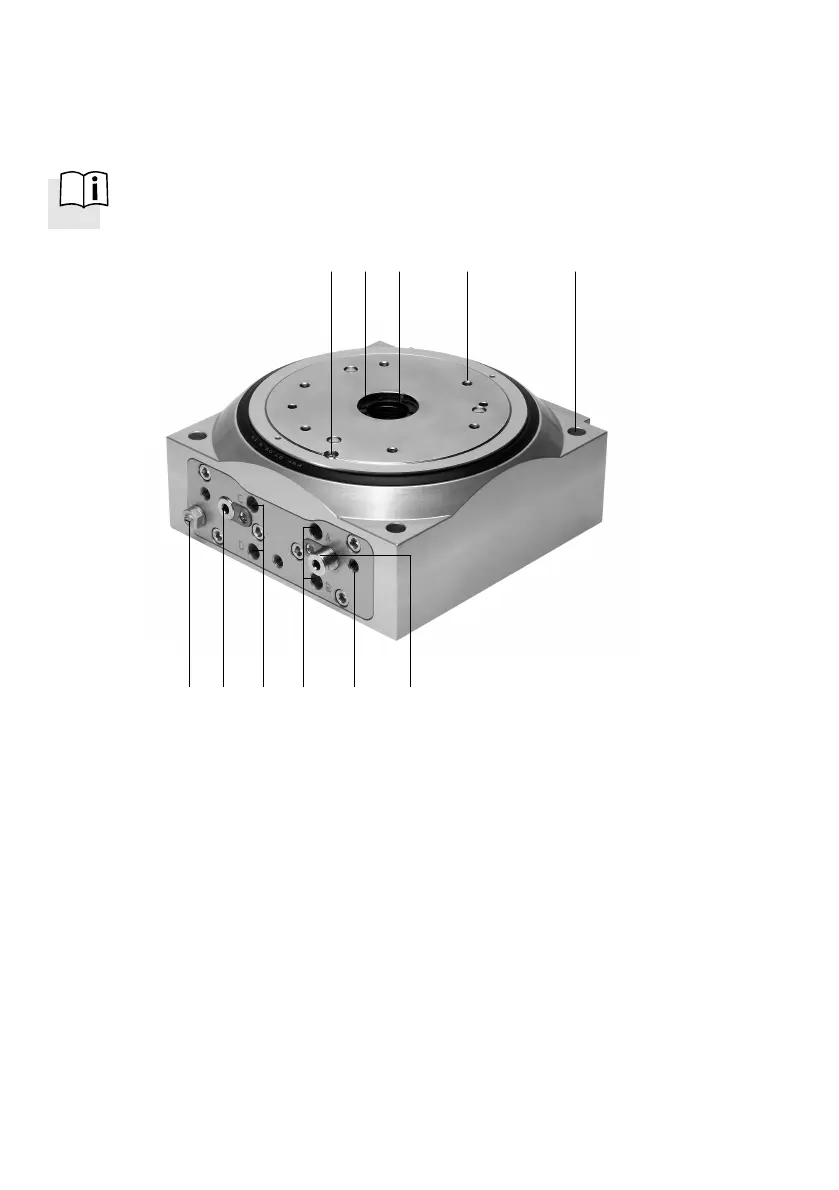

1 Operating elements and connections
For all available product documentation è www.festo.com/pk
123 5
6789
aJ
4
6
1 Retaining screw for table bearing
2 Threaded and pin hole for adapter
3 Through hole for power supply
4 Threaded and pin hole for plate
5 Centring/through hole and thread for
fastening
6 Adjusting screw for setting the cushioning
7 Threaded hole for sensor for position sensing
8 Supply port A and B for
clockwise/anti-clockwise rotation
9 Supply port C and D for reciprocating
operation (sealed on delivery)
aJ One-way flow control valve for speed
regulation
Fig. 1
