Festo DHTG - Characteristic curves

DHTG
18 Festo – DHTG – 2018-02e English
13 Characteristic curves

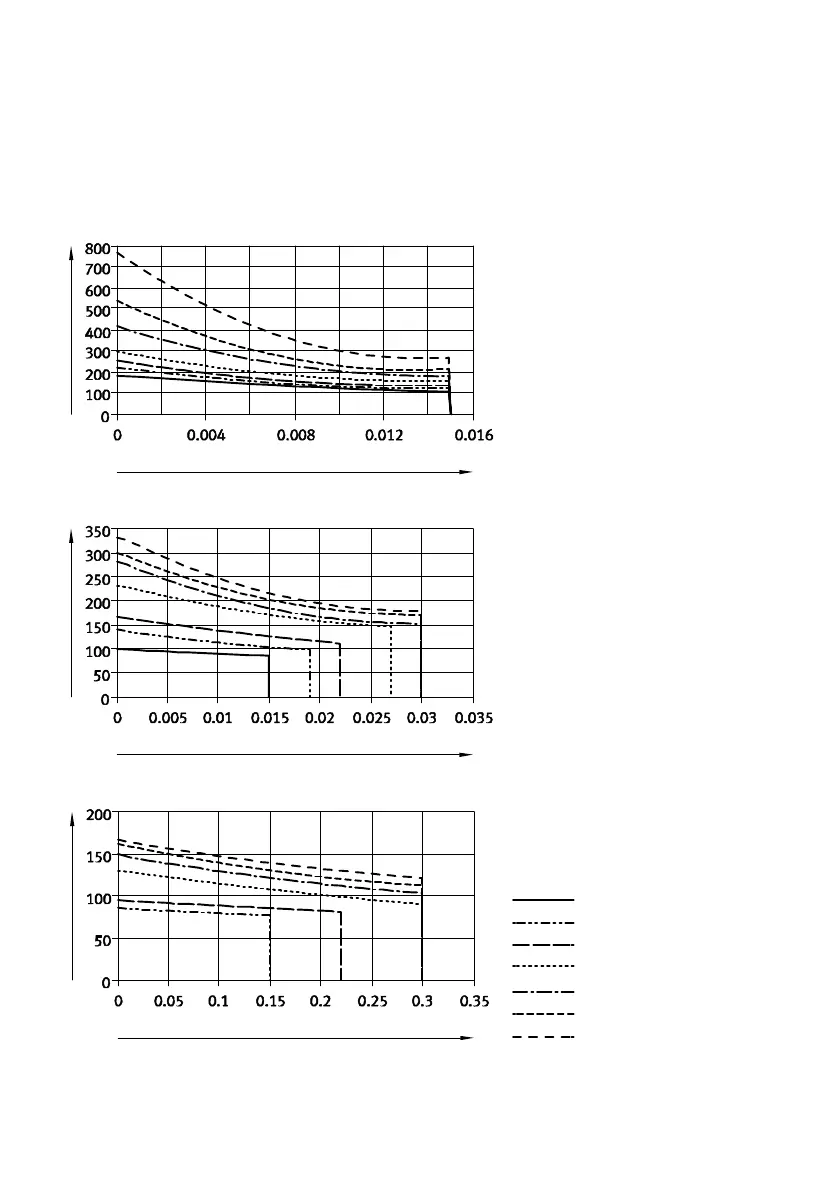

Switching frequency f as a function of mass moment of inertia J
Size 65
f [1/min]
J [kgm
2
]
Size 90
J [kgm
2
]
f [1/min]
Size 140
f [1/min]
J [kgm
2
]
2 indexing stations
3 indexing stations
4 indexing stations
6 indexing stations
8 indexing stations
12 indexing stations
24 indexing stations
