2.2 Type codes (ascertaining the features of a cylinder)
The precise features of the current cylinder with piston rod can be ascertained with the help of the rating plate on the
cylinder. The type designation is located directly beneath the Festo logo and describes the cylinder's features separated
by a hyphen (-).
Example:
DZF-32-100-A-P-A
161268 AN08
pmax. 10 bar
1
4
2
3
1 Type designation
2 Serial number
3 Technical information
4 Part number
The type designation on this rating plate provides the following information:
DZF Cylinder of the type DZF (double-acting)
32 Piston diameter 32 mm
100 Stroke 100 mm
A Male piston rod thread
P Elastic cushioning rings/pads at both ends
A Sensing option (magnetic piston)
Note
A list and description of all possible equipment features of the cylinder with piston rod can be found in the data sheet.
It is available on the Festo website (www.Festo.com).

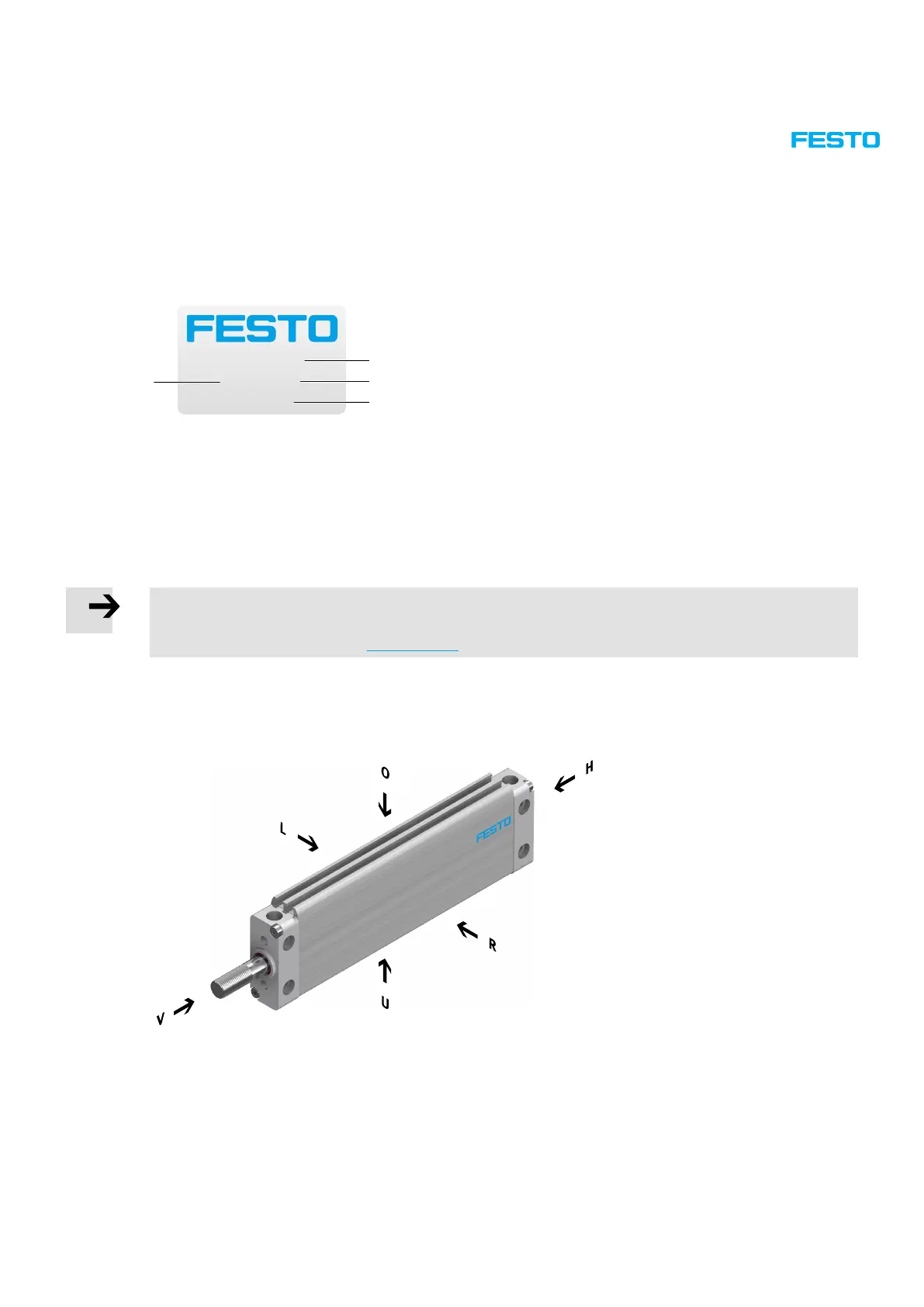

2.3 Orientation designations
This diagram provides an overview of the orientation designations for the cylinder with piston rod.
DZF-32-100-A-P-A
161268 AN08
pmax. 10 bar
Orientation:
Festo = product identication (rating
plate) as reference point
O = top
U = underneath
R = right
L = left
V = front
H = rear
