Adaptation to the circle cutter
The circle cutter can be used to create circular cuts
with a diameter between 120 and 3000 mm. The cir-
cle cutter can be installed from both sides on the
adaptation table.

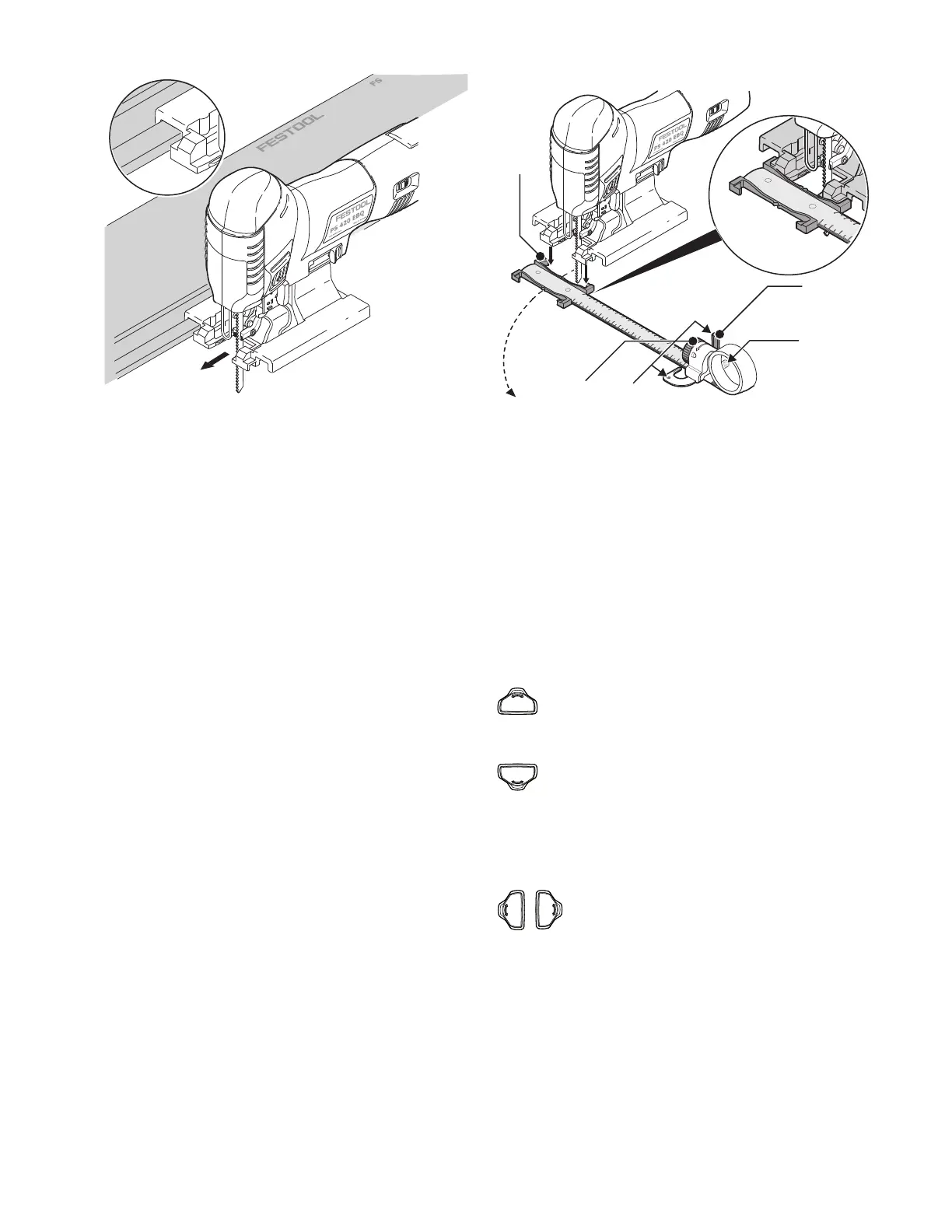

X Place the jigsaw with attached adaptation table
on the adapter [11-1] on the circle cutter.
X Insert the centring mandrel [11-2] in the hole
[11-4] on the circle cutter aligned with the saw
blade.
X Clamp the measuring tape to the circle cutter
using the rotary knob [11-5] .
Recommended when using the circle cutter:
X Cut in an anticlockwise direction.
X Work at a slow rate of advance.
X Set the pendulum stroke [1-12] to 0 - 1.
X Set the stroke rate [1-5] to 1 - 5.
L Store the centring mandrel in the depot [11-3] .
Systainer
Systainer
Many Festool products are shipped in a unique sys-
tem container, called "Systainer". This provides
protection and storage for the tool and accessories.
The Systainers are stackable and can be inter-
locked together. They also can be interlocked atop
Festool CT dust extractors.
To open the Systainer
To lock the Systainer
To connect two Systainers
Place one Systainer on the top of the other (Fig. [12
A] ).
The Systainers are connected and locked.
L A new generation Systainer is connectable on
top of a previous generation Systainer by the
four latches of the previous Systainer.
10
Turn the T-loc [12-1] to this position.
Turn the T-loc
[12-1] to this position.
Turn the T-loc
[12-1] to one of this posi-
tions (Fig. [12 B] ).
11-2
11-3
11-411-5
11-1
11
KS-PS 400
