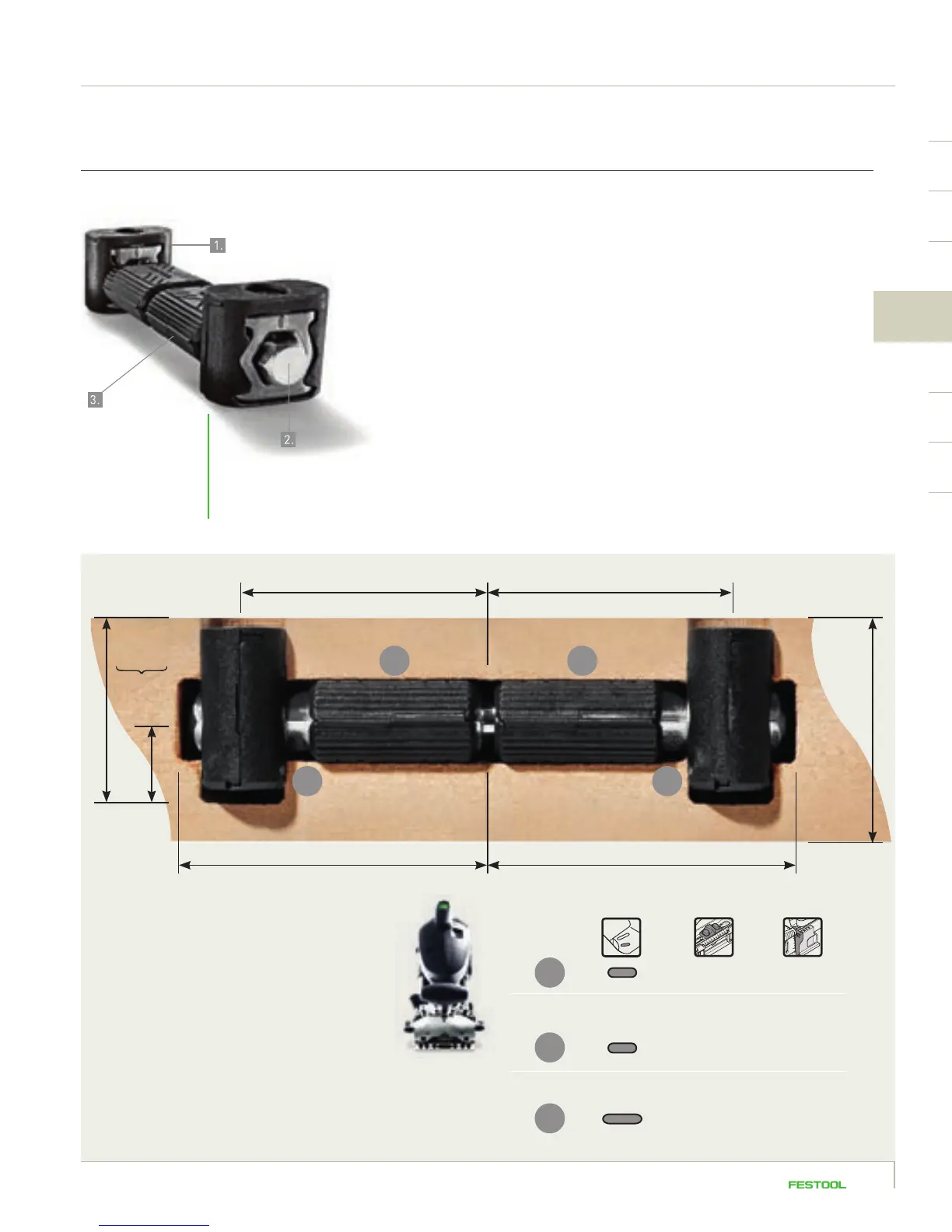

For flat joints, you need the following components from the
DOMINO corner and flat connector system:
Only suitable for joining timber or timber-like materials in furniture
construction (no lightweight building materials!) The DOMINO connector is
only a connecting element, not a load-bearing element. Observe minimum
routing depths and edge distances! For indoor use only!
Flat connector with enlarging clips around the transverse anchor –
specially designed for materials such as kitchen worktops.
1. Transverse anchors – here with additional widening. Prevents
the transverse anchor from drawing into soft materials (e.g. kitchen
worktops).
2. Double-headed bolt – can be used with one or two domino clips.
3. DOMINO connector covers – clipped around double-headed or
anchor bolts. Items included with double-headed or anchor bolts.
x + min. 12
min. 30
4040
y
x
5050
50 mm ~y/2
When working without enlarging clips around the transverse anchor:
x + min. 10 mm;
min. 25 mm
in total
40 mm
When working with enlarging clips around the transverse anchor:
x + min. 12 mm;
min. 30 mm
in total
40 mm
Hole width Routing depth Routing height
2016_FES_DOMINO_Book_GB-en.indb 67 03.03.16 12:13

Festool DOMINO Specifications

General

Motor Power	420 W
Dust Extraction Connection Diameter	27 mm
Power Source	Corded Electric
Cutting Depth	15 mm, 20 mm, 25 mm, 28 mm
Cutter Diameter	5 mm, 6 mm, 8 mm, 10 mm
