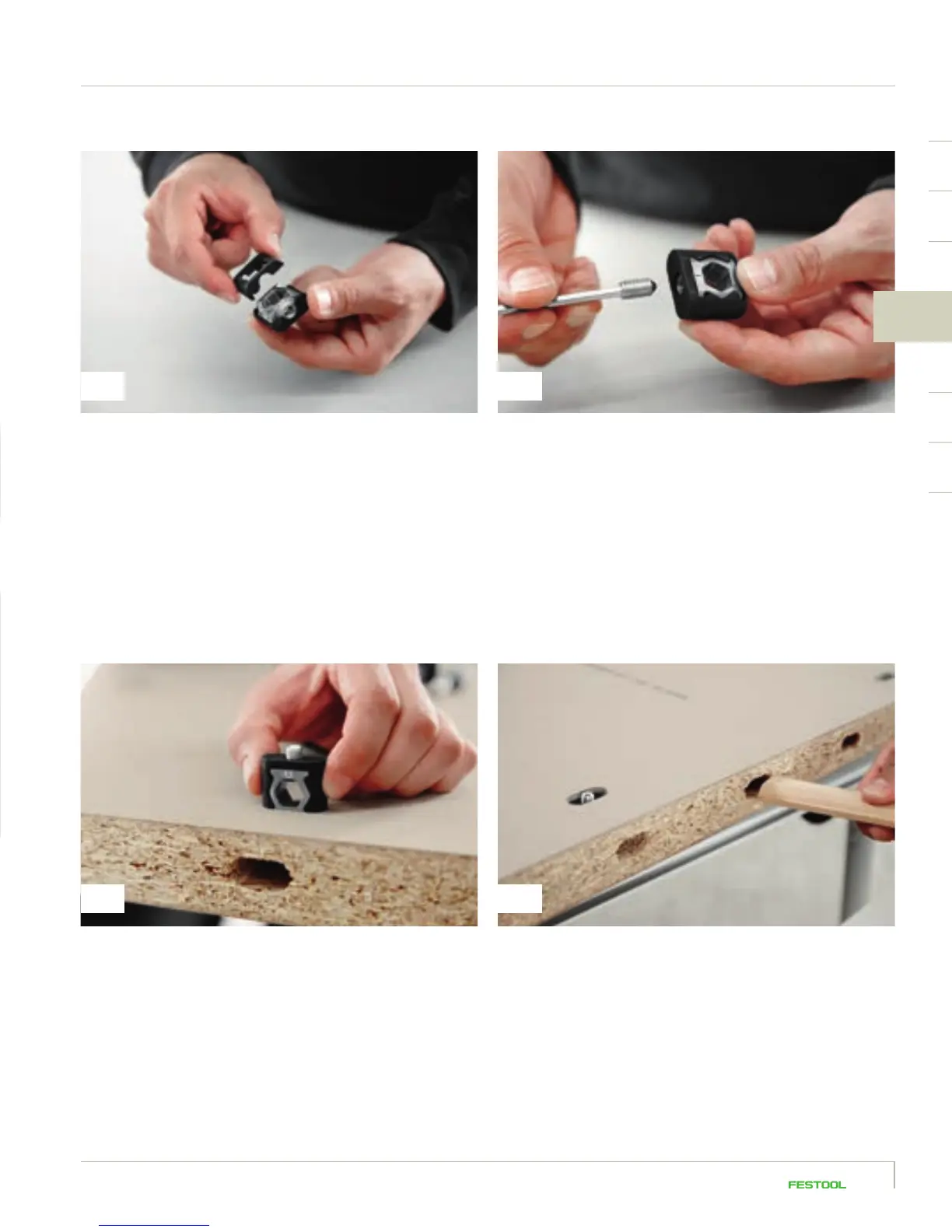

Insert the transverse anchors into the routed holes. If you have decided to use additional dominos in order
to ensure a flush connection and extra transverse load
transmission, insert these into the other routed holes.
Tighten the studs in the transverse anchor only so that the
studs stay in place, but the opening remains open for the
double-headed bolt.
The enlarging clips around the transverse anchors prevent
the anchors from drawing into soft materials (e.g. kitchen
worktops) when tightened. Clip the enlarging clips around
the transverse anchors for this purpose.
