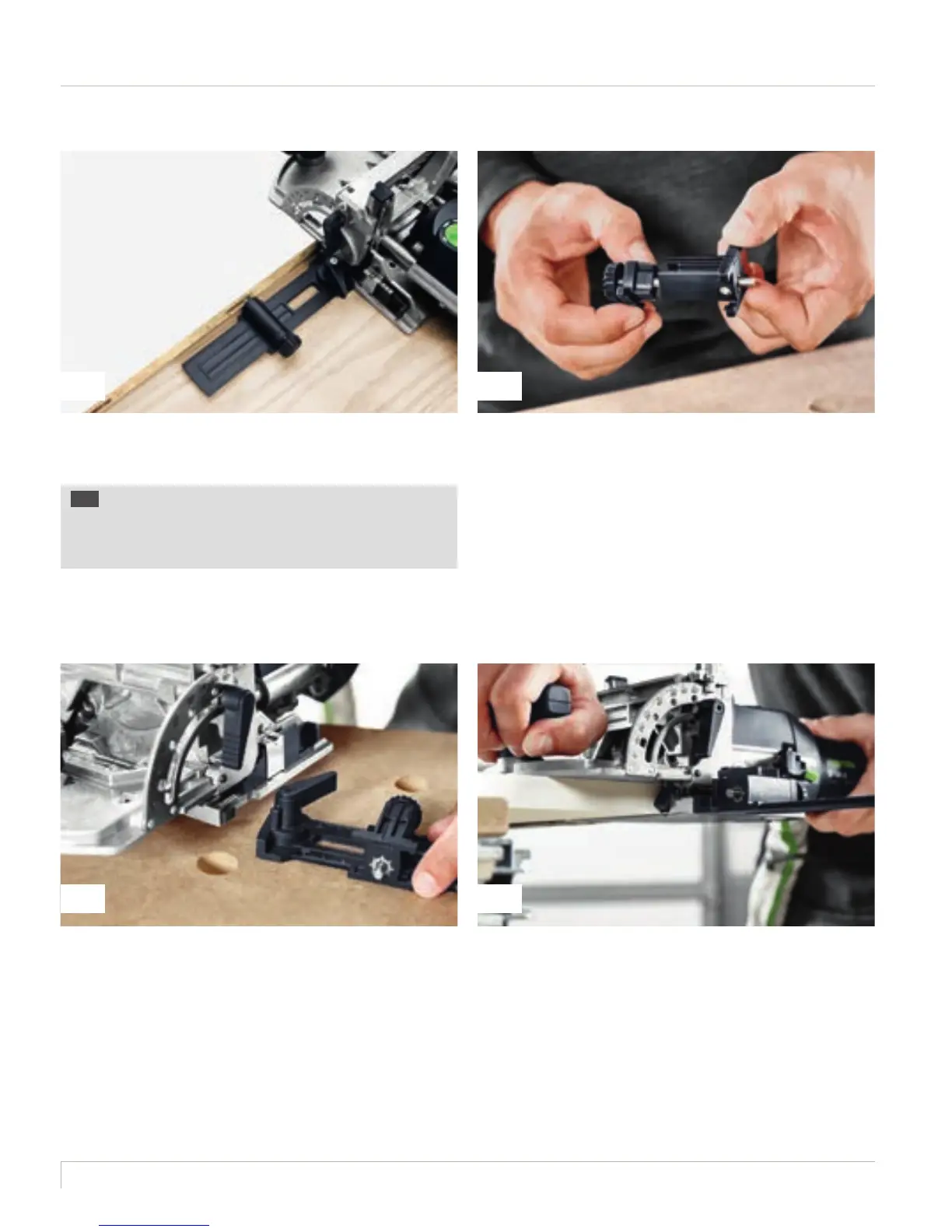

To fit the cross stop on the machine in question, turn the
clamp jaw on the stop pin so that it is set to the DF 500 or
DF 700 position (each machine is marked accordingly on
the front of the pin).
Mount the cross stop onto the joining machine according to
the operating instructions. In this example, we are processing
6 x 40 mm dominos.
Due to the material thickness of 19 mm, the domino cannot
be inserted into both workpiece parts (front and surface) with
20 mm on each side.
For this reason, a routed hole with a depth of 25 mm is created
(on the front side) for this butted joint. The other routed hole
(on the surface) is 15 mm deep, so that the total domino length
of 40 mm is processed.
Place the joining machine at the front edge of the workpiece
with the stop pin for the first routed hole, and route the hole
with the appropriate hole width.
With larger workpiece widths and larger hole distances, the
cross stop can be used to work easily with the stop pin system
instead of marking out holes.
TIP The cross stop can be used both for the DF 500 and
the DF 700 and allows for larger hole distances beyond
the stop pin system. Ensure that the stop is fitted onto the
machine in use.
