Festool DOMINO User Manual

9 1310 14
11 12
8382
4

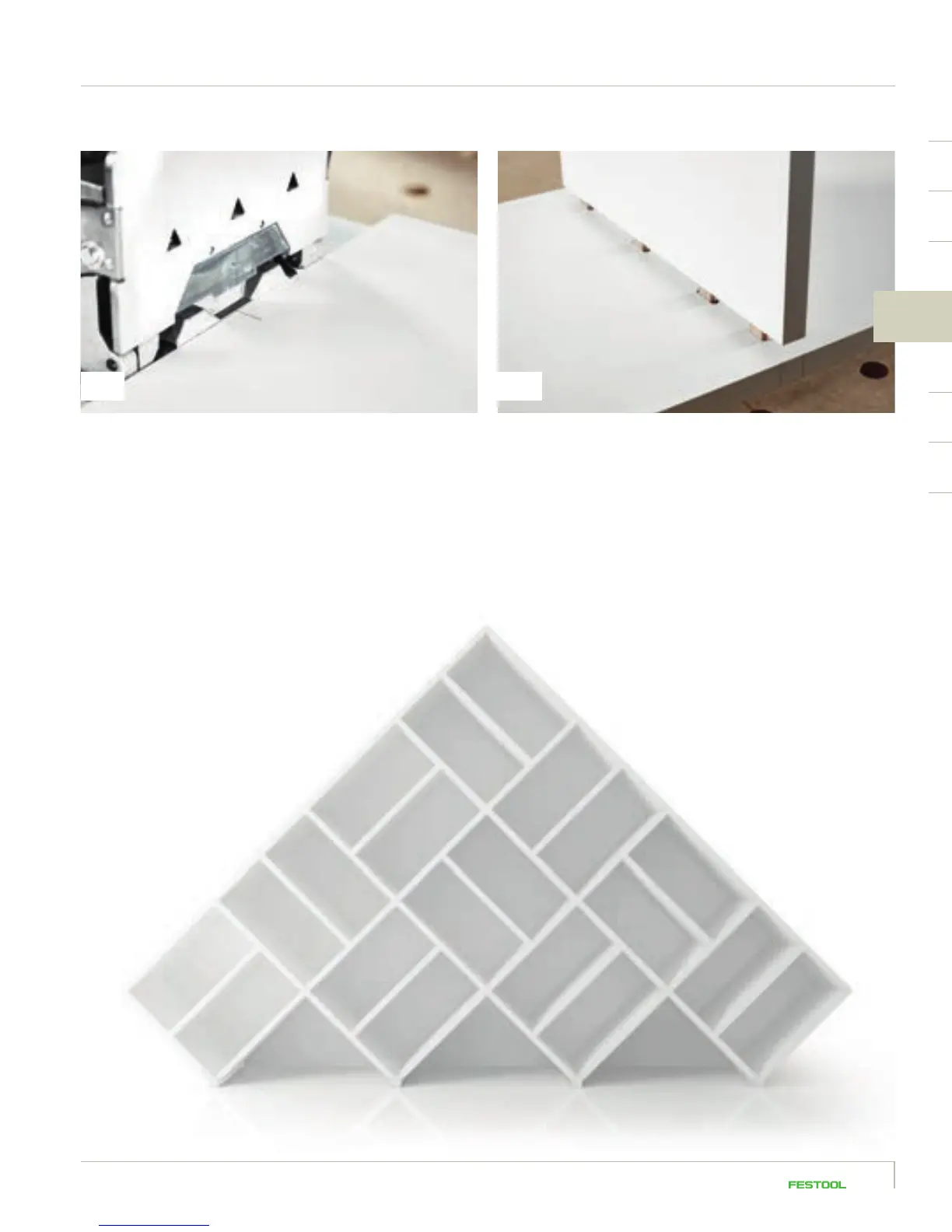

Proceed likewise for the second side part. Then insert the
domino in the routed holes and join your workpiece together,
applying glue to the joint.
Set the other holes using the scale in the viewing window,
which you align with the scribe marks. Set all holes here in the
panel edge with the narrow hole width – the domino will be
glued here first and will then fit in precisely.
2016_FES_DOMINO_Book_GB-en.indb 83 03.03.16 12:13

Festool DOMINO Specifications

General

Motor Power	420 W
Dust Extraction Connection Diameter	27 mm
Power Source	Corded Electric
Cutting Depth	15 mm, 20 mm, 25 mm, 28 mm
Cutter Diameter	5 mm, 6 mm, 8 mm, 10 mm
