Fetco CBS-1221 - Parts Diagrams

Go to fetco.com for the latest versions of all information Page 13 User Guide & Operator instructions P194Re0 November 2020
Parts Diagrams
ITEM Qt
y

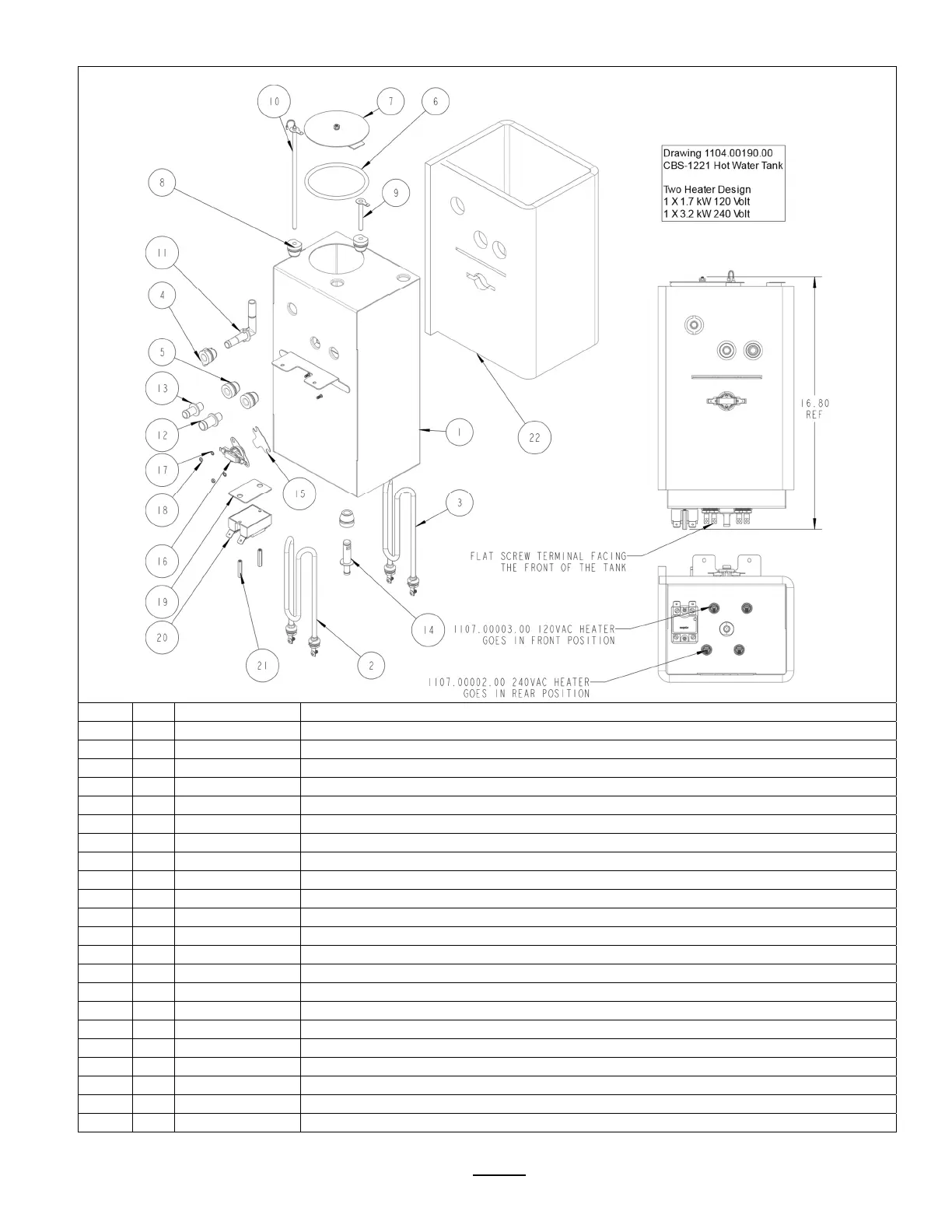

PART NO DESCRIPTION Hot Water Tank CBS-1221 Drawin
g
number 1104.00190.00
1 1 1114.00167.00 WELDMENT, TANK, CBS-1221
2 1 1107.00003.00 HEATER ASSY, IMMERSION 1700W/120VAC
3 1 1107.00002.00 HEATER ASSY, IMMERSION 3200W/240VAC
4 1 1024.00111.00 GROMMET, SILICONE, W/ POSITION TABS
5 3 1024.00050.00 GROMMET, SILICONE, 11.4mm ID
6 1 1024.00007.02 O-RING, DASH #344, TANK COVER
7 1 1102.00007.00 TANK COVER ASSEMBLY
8 2 1024.00007.00 GROMMET, SHORT, SILICONE, LEVEL AND TEMP PROBE
9 1 1112.00002.00 PROBE WELDMENT, WATER LEVEL 2.25" LONG
10 1 1102.00161.00 PROBE ASSEMBLY, TEMP. AND LLC, 8" LONG
11 1 1023.00362.00 FITTING VENT, ELBOW, .375" X .375", SELF POSITIONING
12 1 1023.00203.00 FITTING, STRAIGHT, GROMMET, .625"
13 1 1023.00167.00 FITTING, STRAIGHT, GROMMET, .500"
14 1 1023.00166.00 FITTING, COLD WATER INLET, GROMMET DESIGN
15 1 1003.00005.00 BRACKET, ONE SHOT THERMOSTAT
16 1 1053.00051.00 THERMOSTAT, SINGLE SHOT, 240V/45
A
17 2 1083.00009.00 WASHER, #6 SCREW , INTL TOOTH LOCKWASHER
18 2 1084.00010.00 NUT, HEX, #6-32, UNDERSIZED, ZINC PLATED
19 1 1003.00140.00
A
LUMINUM BRACKET FOR SSR
20 1 1052.00033.00 RELAY, SOLID STATE, 50A/480VAC, W/BUILD IN VARISTOR
21 2 1081.00042.00 STANDOFF, 1/4" HEX
22 1 1022.00112.00 TANK INSULATION, CBS-1221
