FHF ExResistTel - Device - Connection Diagram

11

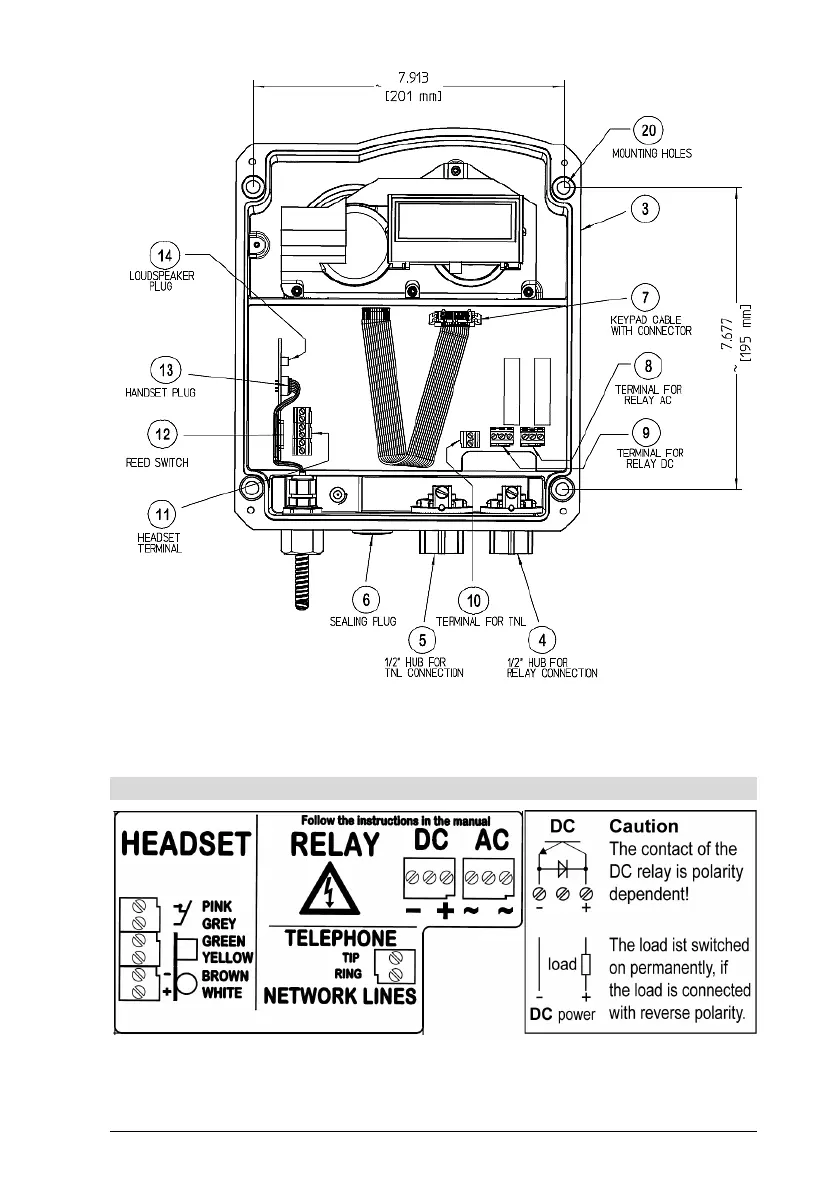

Figure 4 Inside view of telephone lower part and mounting holes
For making a drilling template please see dimensions.
Device – connection diagram
Follow the instructions on page 23 of this manual for configuring the used
relay.
Figure 6 Connection diagram
LOWER%PART%OF%
THE%TELEPHONE%
