7 Drawings and diagrams

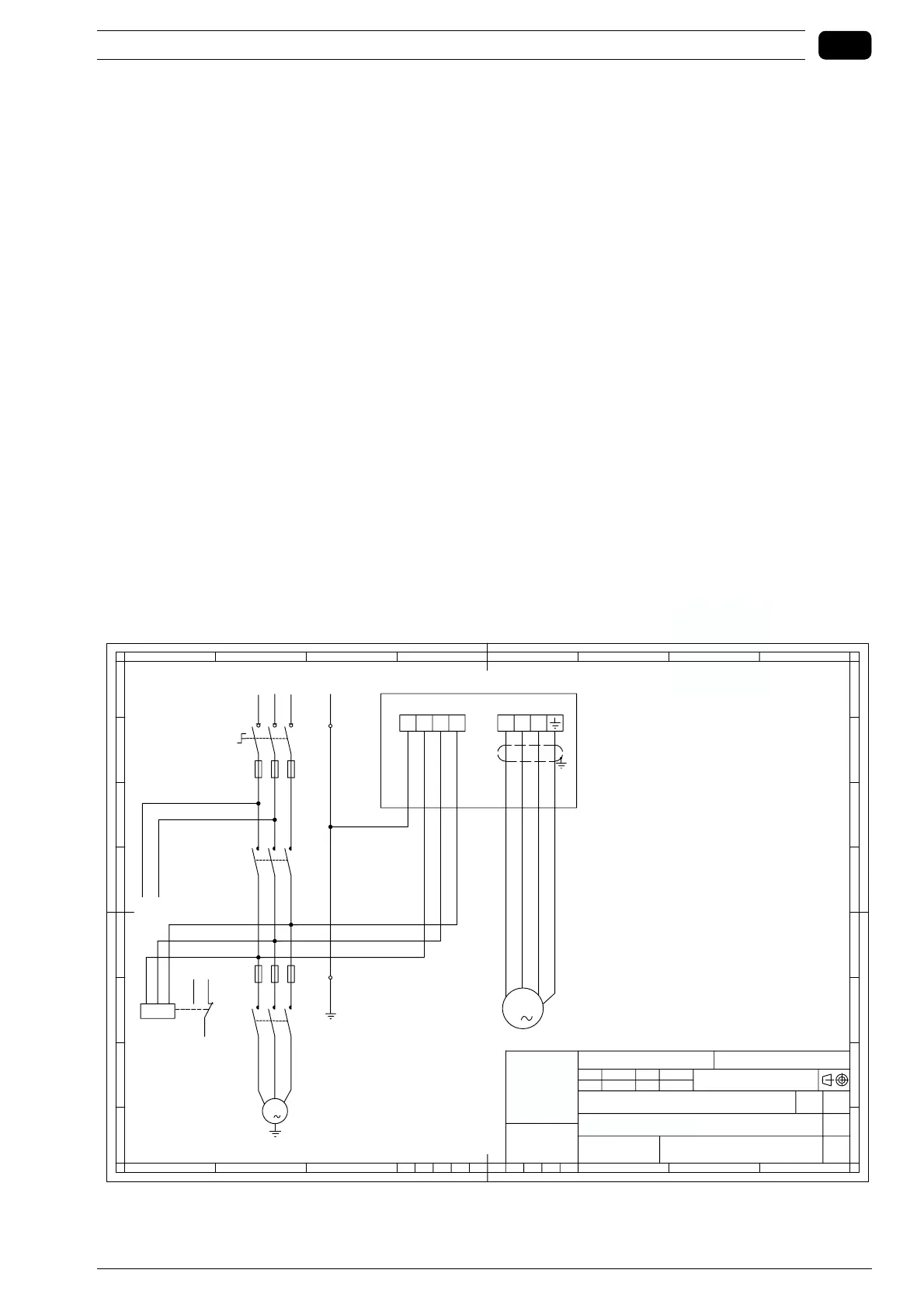

7.1 Wiring diagrams
KEY OF THE WIRING DIAGRAMS (versions DR)
QS: Main ON/OFF switch
FUV: Fan motor fuses 10.3x38 : aM 6A (100HP 400V)
Fan motor fuses 10.3x38 : aM 4A (75HP 400V)
Fan motor fuses 10.3x38 : aM 4A (100HP 230V)
Fan motor fuses 10.3x38 : aM 4A (75HP 230V)
MV: Fan motor
MC: Compressor motor
KR: Fan motor phases sequence relay
F1-F2: Fuses 5x20 1A (T)
F3: Fuse 5x20 1A (F)
F4: Fuse 5x20 800mA (T)
T: Transformer
K1: Compressor motor line contact maker
K2: Compressor motor delta contact maker
K3: Compressor motor star contact maker
K4: Fan motor contact maker
R1-R2-R3: Voltage restrictors (excluding 75HP at 400V 50/60Hz)
D: ECU
Y1-Y2: Solenoid valve
Y3-KTS: Condensate discharge solenoid valve
SE: Emergency push button
SR: Oil alarm reset button
SA: Air filter vacuum gauge
STV: Fan motor internal protection trip switch
SD: Oil separator tank pressure switch
BP: Pressure sensor
BT: Temperature sensor
RT: Compressor motor thermistors
7.2 Pneumatic diagrams
MAINTENANCE SCHEDULE
COMPRESSOR MODEL ____________________ SERIAL NO __________________
