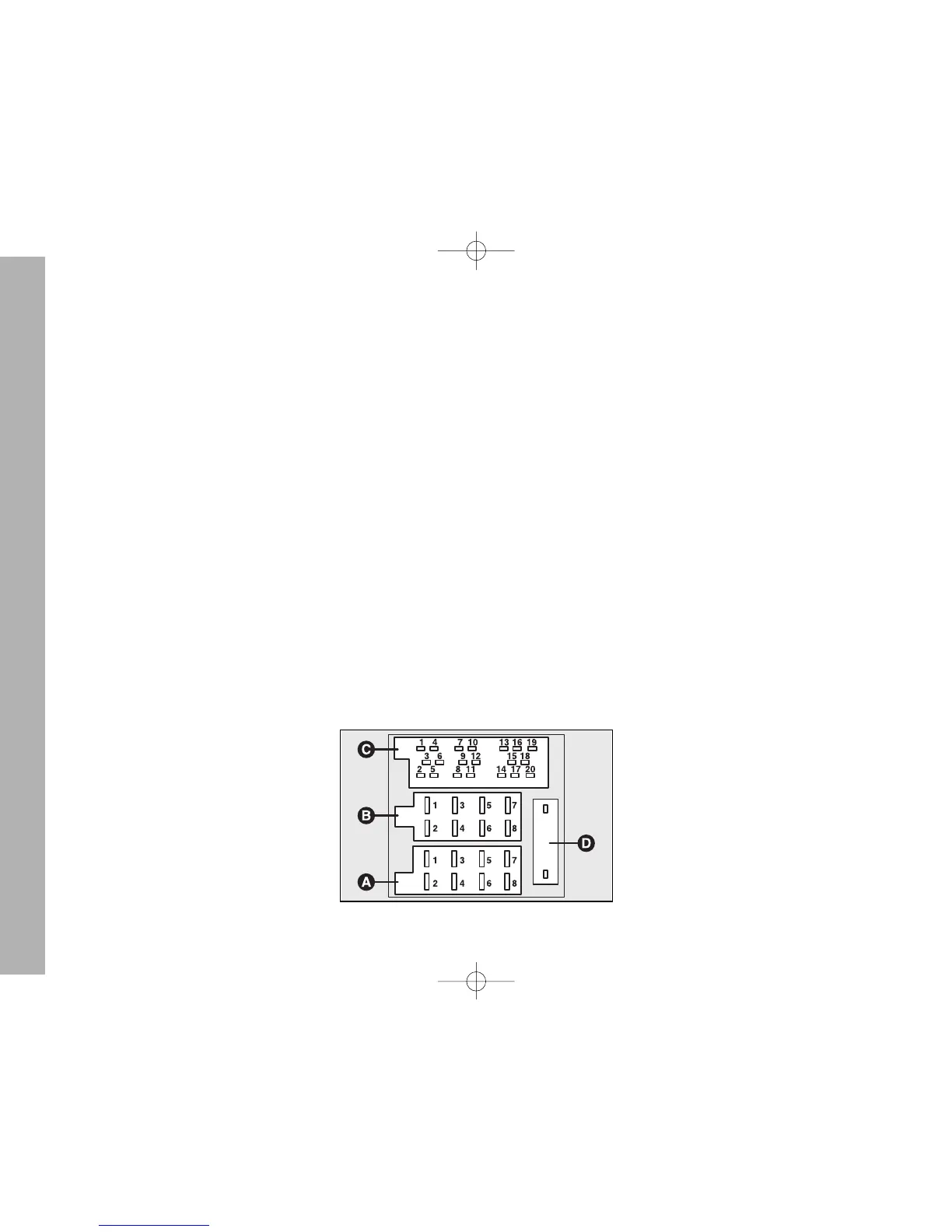

fig. 8
F0C0028m
38 Nero Testo 603.46.306 Radio Stilo gb
RADIO WITH CASSETTE PLAYER
38
PHONE INPUT
Connection presetting for hands-
free phone kit (through radio).
C7 Positive sound input for
external phone presetting
C8 Negative sound input for
external phone presetting
C9 MUTE signal from external
phone presetting
C10 Not connected
C11 Not connected
C12 Phone earth
CD CHANGER CONNECTION
C13 CDC bus line
C14 CD Changer data bus
C15 CD Changer +12V supply
voltage
C16 CD Changer switch voltage
C17 CDC bus earth
C18 Sound signal earth from CD
Changer
C19 LH CDC sound channel
C20 RH CDC sound channel
Additional connections
CONNECTIONS C-fig. 8
Line output connection preset-
ting for power amplifier (Booster) or
active speaker.
C1 Positive sound input for
external TMC module
C2 Negative sound input for
external TMC module
C3 MUTE signal input from
external TMC module
C4 Not connected
C5 Not connected
C6 Not connected
603.46.306 Radio Stilo GB 7-04-2005 8:54 Pagina 38
