RADIO WITH COMPACT DISC PLAYER
71 Nero- Testo 603.46.306 Radio Stilo gb
71
– 2 rear tweeters A-fig. 16, 4 Ohm
impedance and 40W power (5-door
and Multi Wagon versions)
– 2 rear full-range speakers A-fig.
15, 165 mm diameter, 4 Ohm
impedance and 40W power (3-door
versions)
– 1 box subwoofer C-fig. 17 set in
the boot, with 100W built-in amplifi-
er
Protection fuse
The radio has a 10A protection
fuse D-fig. 18.

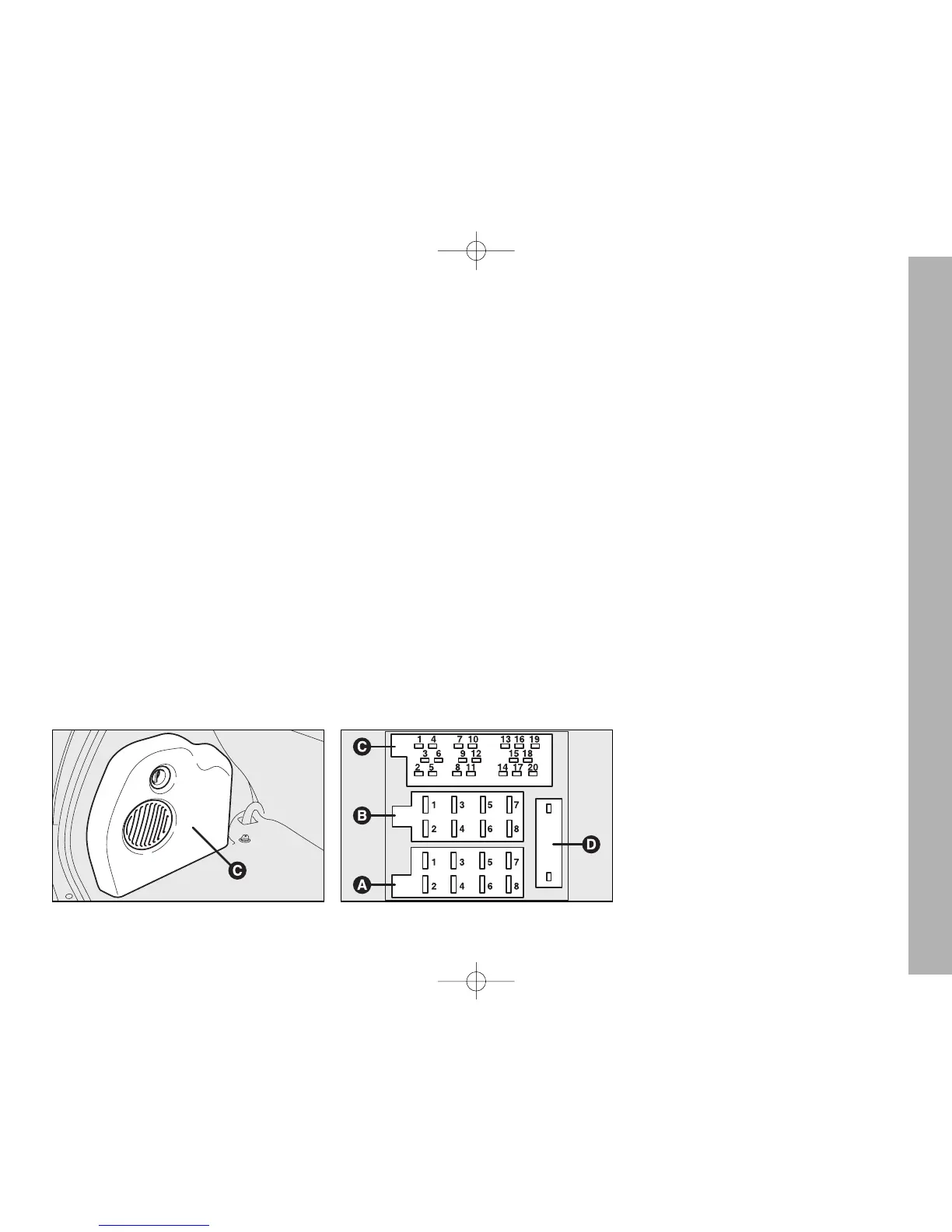

fig. 17
F0C0135m
fig. 18
F0C0028m
Power
CONNECTIONS
A-fig. 18
A1 CAN B line signal
A2 Amplified subwoofer pres-
ence signal
A3 CAN A line signal
A4 Connection to +12V switch-
ing on voltage (at car starting)
A5 Radio aerial connection
A6 Not connected
A7 Connection to +12V (perma-
nent) supply voltage
A8 Earth connection.
Speakers
CONNECTIONS
B-fig. 18
B1 Rear speaker
(right +)
B2 Rear speaker
(right –)
B3 Front speaker
(right +)
B4 Front speaker
(right –)
B5 Front speaker
(left +)
B6 Front speaker
(left –)
B7 Rear speaker
(left +)
B8 Rear speaker
(left –)
