13INSTALLATION - CONNECTING WIRES

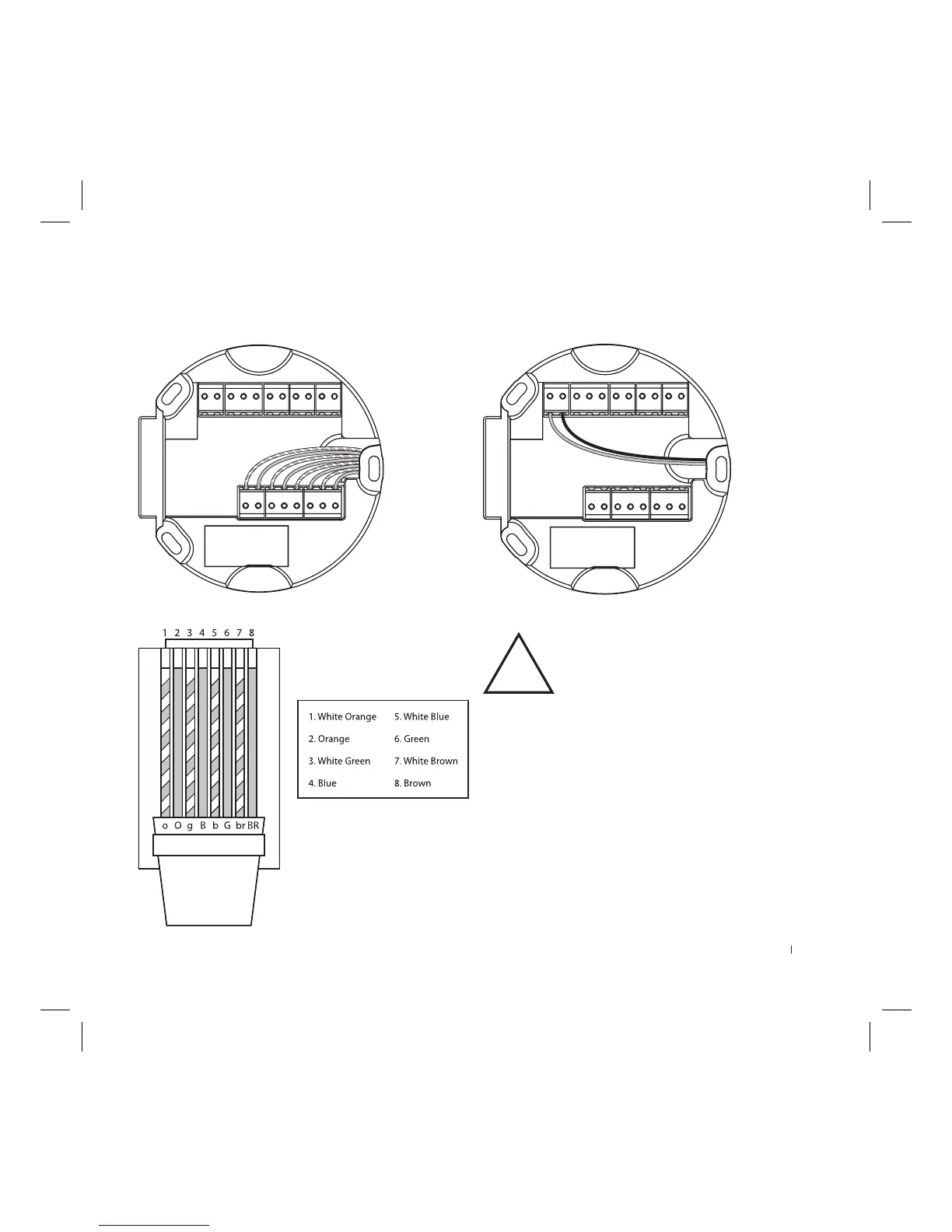

Connecting ethernet/POE cable:
ETH1-ETH8 inputs are related to specied numbers of wires in RJ-45
connector according to the T-568B standard as shown below.
Connecting 12V DC power supply:
Inputs for connecting an external 12V DC power supply. Please
double-check correct polarity of power supply.
CAUTION
Before connecting the power supply, or attaching the wires to de-
vice terminals, make sure that the power supply and installation
complies with the limits of current and voltage.
Use only Class II or double insulated power supplies and periph-
eral devices which provide operating in SELV (Safety Extra Low
Voltage) circuits.
o O g B b G br BR
12V
GND
!
