14 INSTALLATION - CONNECTING WIRES

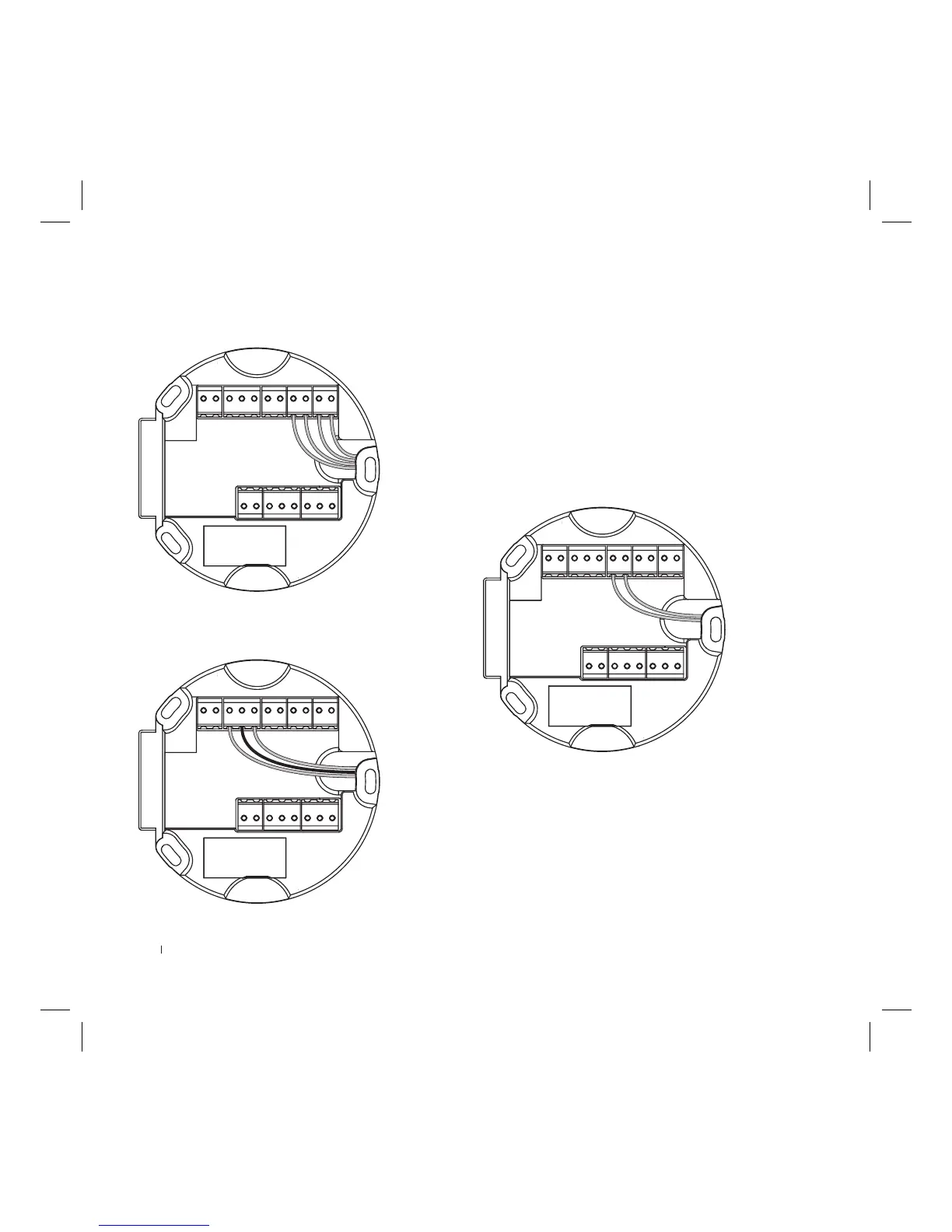

Connecting relays:
Congurable relay outputs 30V/1A. Outputs are not designed for
long-term supplying of external devices. Contacts are not connect-
ed to the ground and can be connected with any polarity.
R2 R2R1 R1
Connecting buttons for relays:
Congurable dry contact logic inputs designed to be operated by
reed sensors, switches, and relay outputs.
N1
GND
N2
Connecting tamper switch to external system:
Anti-sabotage input, used for connecting to the external alarm
system. Normally opened contacts close after installing the
external, on-wall part of the device. Contacts are not con-
nected to the ground and can be connected with any polarity.
Parameters: max. 12VDC/50mA.
TMP
TMP
To nd more information about potential use cases of each type of
connection see “Use cases“ on page 26.
