Wireless ADSL Router User Manual
15
membership in a multicast group. The ADSL ATU-R supports both IGMP version 1
(IGMP-v1) and IGMP-v2. Select None to disable it. This function is most for IPTV.
Note:
In the Web configuration page, when you change the parameters, it is not working
immediately. It’s only temporary. If you want to save the settings of this parameters
permanently, click Save at the bottom of the Web page. If you change one parameter,
other parameters will not change.

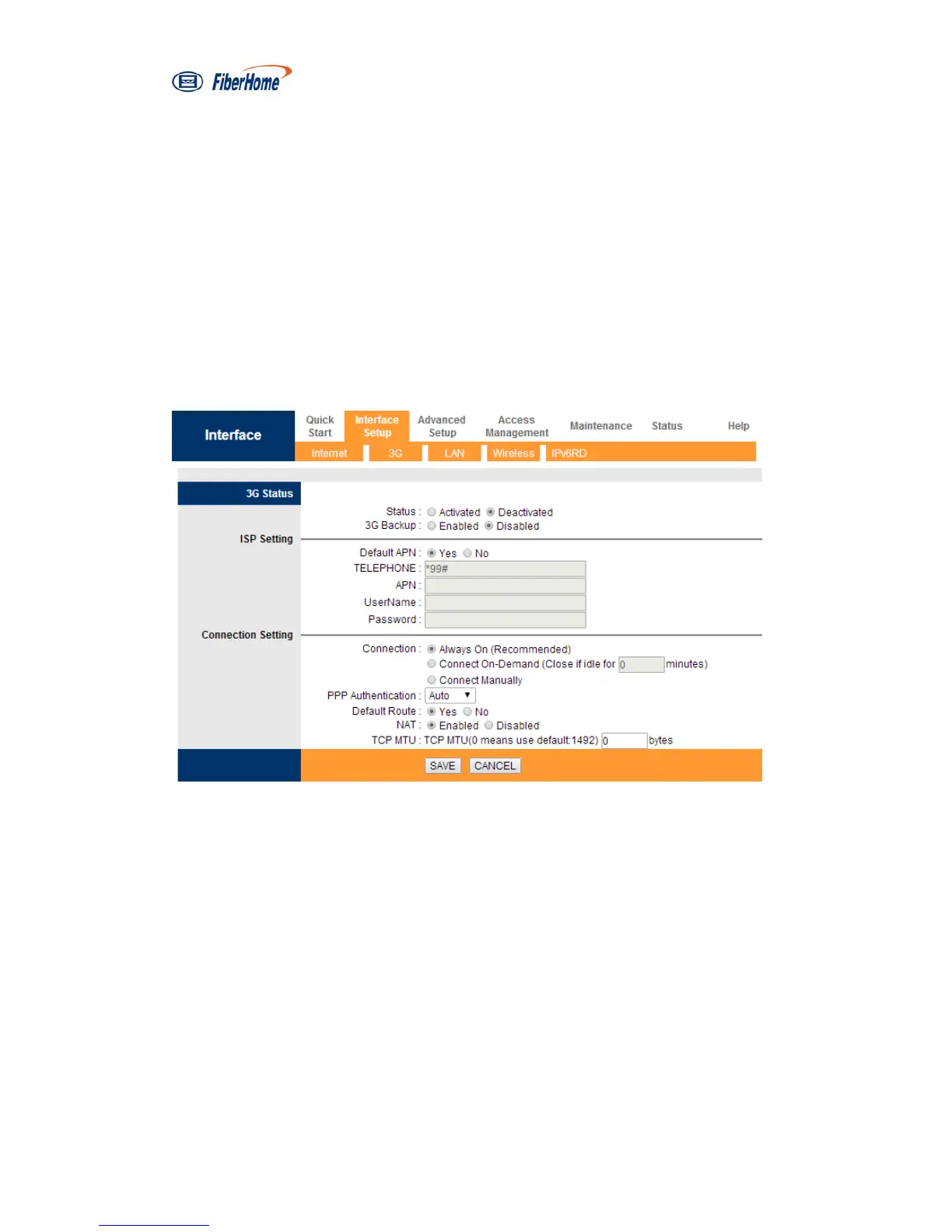

5.4. 3G Setting
From home page, you can find 3G option on the above router configuration page. Clip
3G. In this page you can set 3G work model and status.
5.4.1. 3G Status
3G status can activate to use 3G USB data link card to access to Internet.
3G Backup allows 3G USB data link card as a backup of DSL.
5.4.2. ISP Setting
Set ISP configuration of 3G USB data link card.
5.4.3. Connection Setting
Set connection parameters.
Support 3G USB dongle type:
WCDMA:Huawei :EC122 E261,E1750,E173,E303,E367,
Alcatel:X500, Prolink: PHS101, PHS100, PHS300; TW: WU260, ZTE MF190;,
CDMA2000:T-linking TWA-137A+ and more…
5.5. LAN setting
From home page, you can find Interface setup option on the above router configuration page.
Click LAN. In this page, you can use DHCP (Dynamic Host Configuration Protocol) to control
