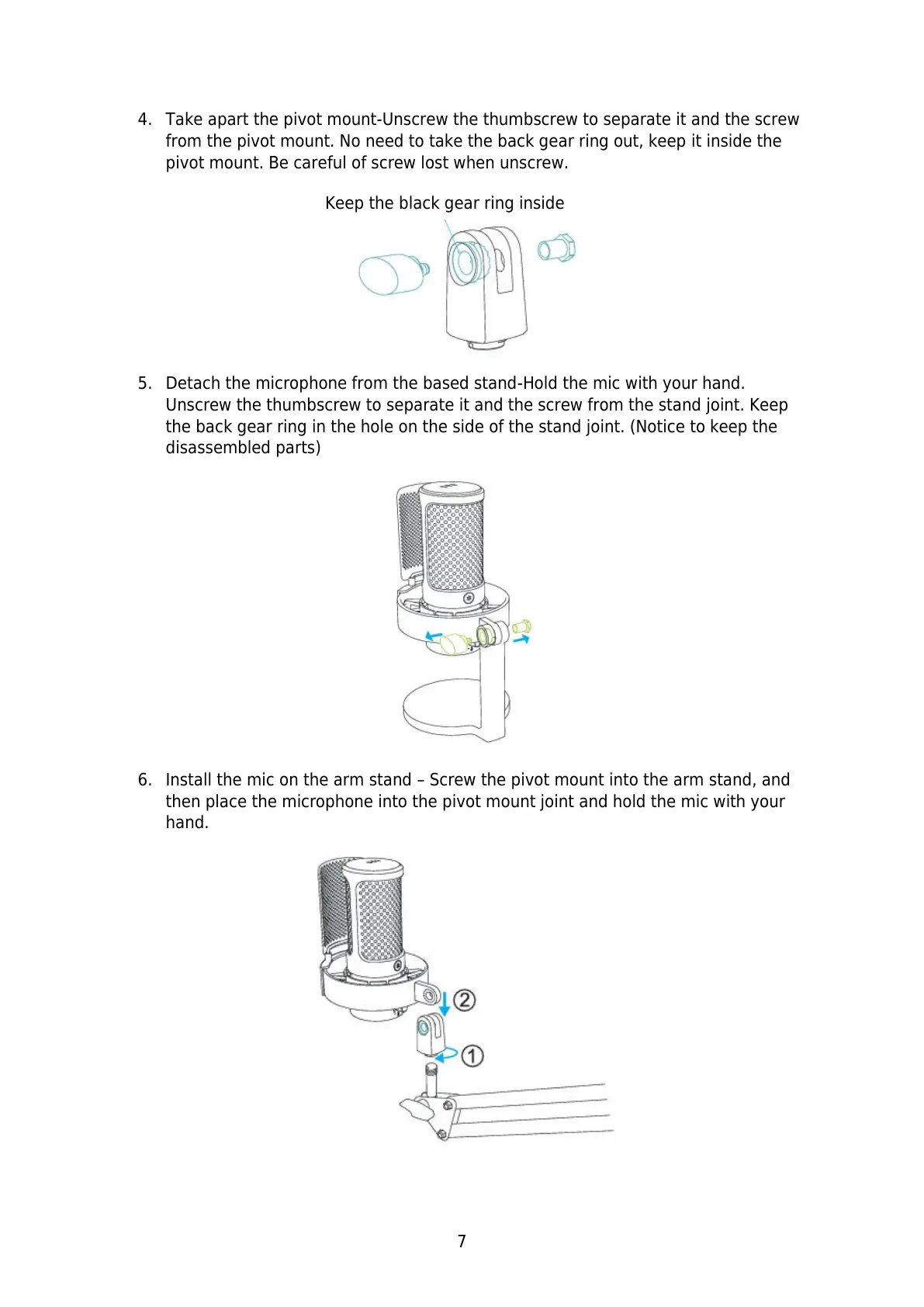

4. Take apart the pivot mount-Unscrew the thumbscrew to separate it and the screw
from the pivot mount. No need to take the back gear ring out, keep it inside the
pivot mount. Be careful of screw lost when unscrew.
5. Detach the microphone from the based stand-Hold the mic with your hand.
Unscrew the thumbscrew to separate it and the screw from the stand joint. Keep
the back gear ring in the hole on the side of the stand joint. (Notice to keep the
disassembled parts)
6. Install the mic on the arm stand – Screw the pivot mount into the arm stand, and
then place the microphone into the pivot mount joint and hold the mic with your
hand.
Keep the black gear ring inside
