OWNERS MANUAL 19
ADDITIONAL INFORMATION
CHANGING THE MOVEMENT LIMITS
G Changing of the movement limits must left to be made by authorized service personnel. Do not
never drive the lift motor to the mechanical limits because the transmission may be damaged.
Shall be made if new limits of movements
are needed or in case of changing the
potentiometer or the pc-board, if the old
EEPROM has not been changed from the
old pc-board to the new one.
Programming goes as follows:
1. If possible, move chair and backrest to their approx. middle positions.
2. Short-circuit 6-pin connector (all pins together) at the chair-pc-board just next to the processor
circuit (special short-circuit piece available). If there is also Fimet F1 E unit attached to the chair,
the other flat cable must first be detached.
3. Press the
PROG
-switch and keep it down
4. Activate security switch at the bottom edge of the pcb-board and release it. (keep
PROG
still
pressed))
5. Press any switch at the foot control. Now Beep, Beep, Beep sound should be heard. Release
PROG
-switch and foot control.
6. Chair goes now downwards (it can only be stopped at the security switch or at the mains
switch).
7. Press the
USER
-switch at the desired lowest limit. Now the chair start going upwards.
LIFT: (chair moves)
Lower limit ⇒ press
USER
Upper limit ⇒ press
USER
Lower limit ⇒ press
USER
TILT: (backrest moves)
Lower limit ⇒ press
USER
Upper limit ⇒ press
USER
Lower limit ⇒ press
USER

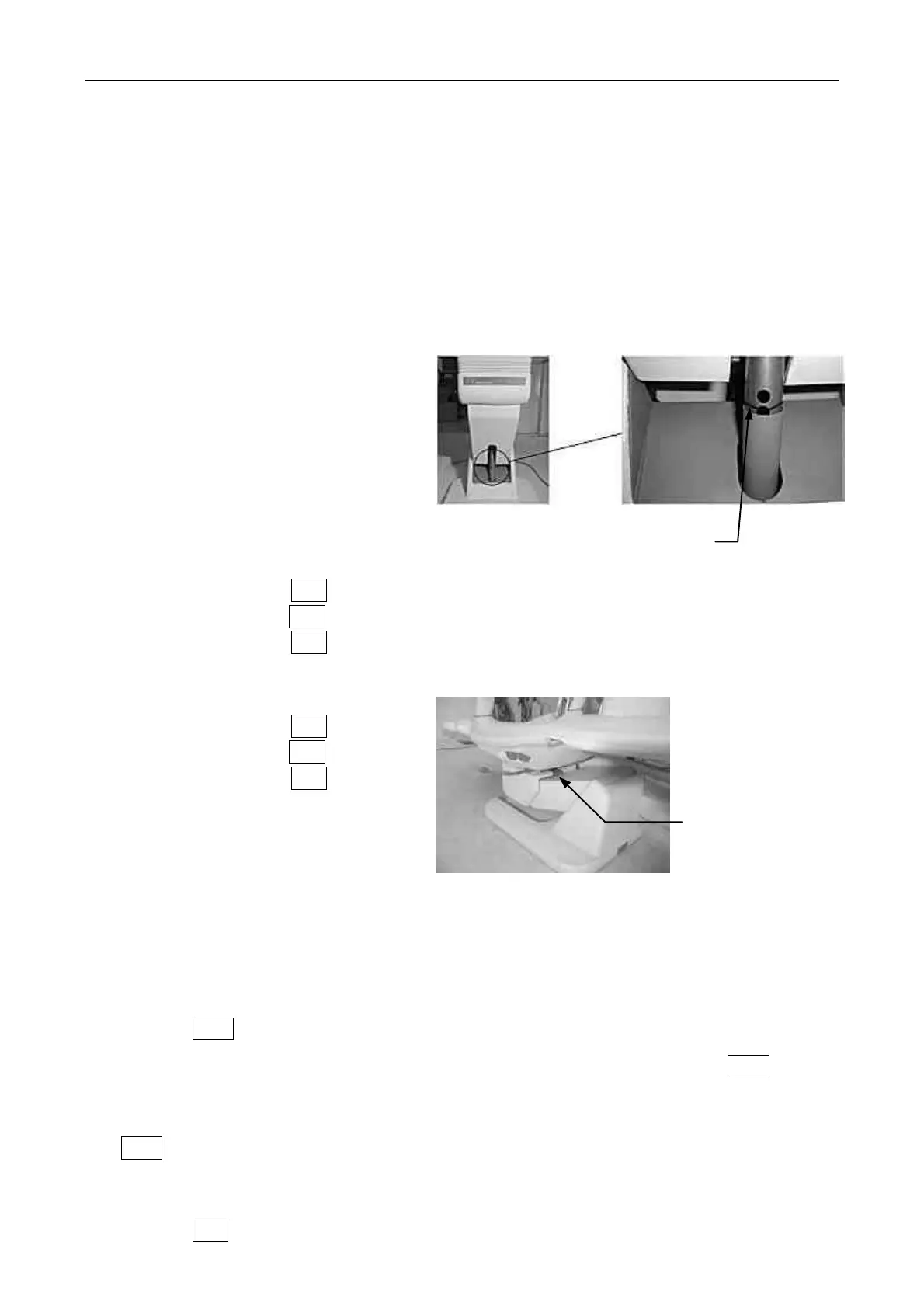

Upper limit when metal
ring comes visible
Lower limit
when plastic
strip reaches the urethane
part of the base
