OWNERS MANUAL 21
12. Re-assembly the chair in opposite order than dismantle. Pay extra attention for assembling the
security switch and check its behavior again when the chair is fully assembled again.
GIVING THE RIGHT TRANSMISSION CODE TO THE FOOT
OR HAND CONTROL
To be made after changing the foot control or the hand control, after changing chair’s main pc-board
or after changing EEPROM circuit in main pc-board.
1. Press
PROG
-button in chair’s back panel and keep it pressed during points 2 and 3
2. Activate security switch and release it. (Lift back panel from the chair’s rear. The “0” should be
blinking on the display).
3. Press any button from foot control and release it after ”Beep, Beep, Beep” sound.

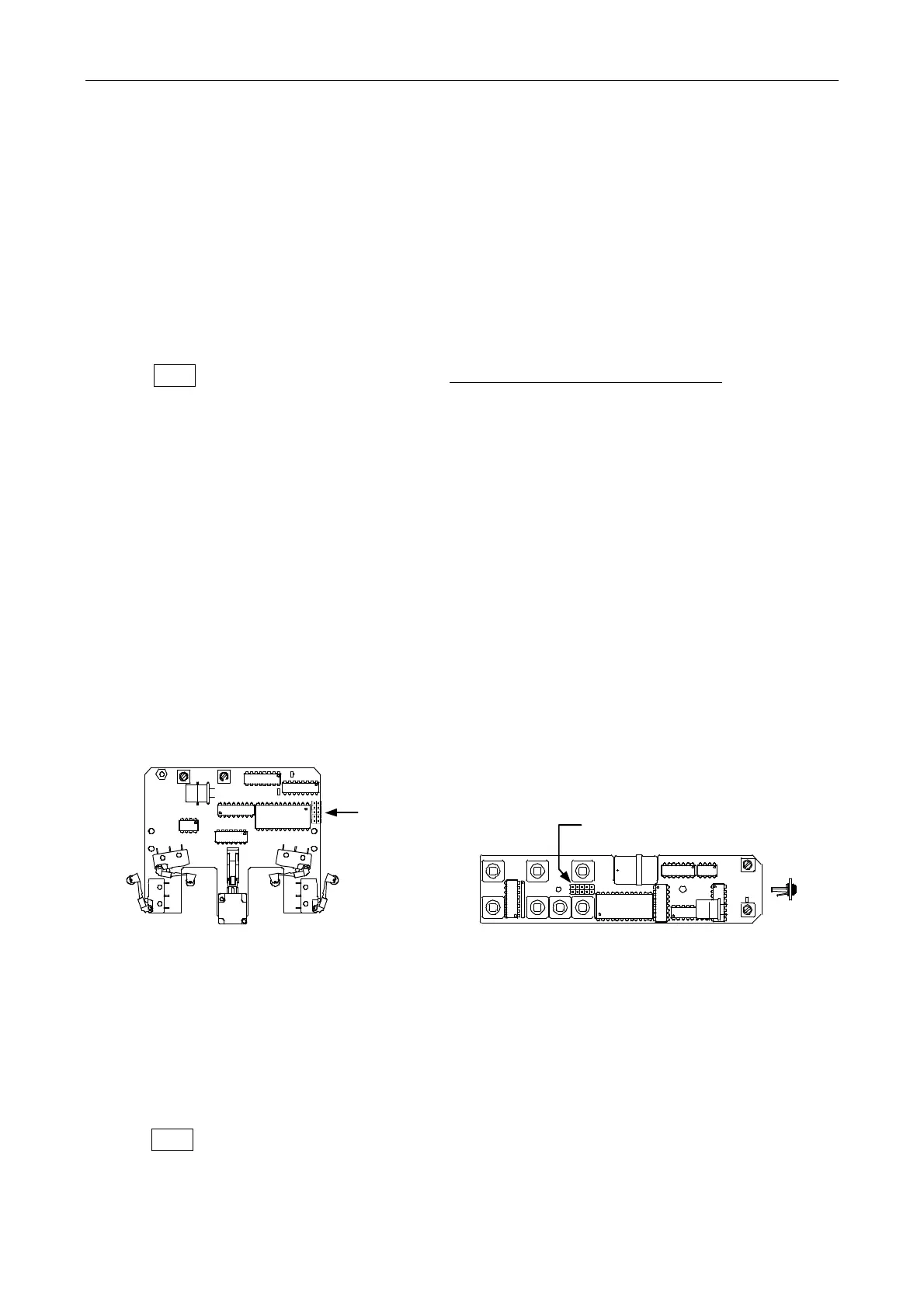

In case of bringing a new remote control (hand or foot) to the system, make sure that they have the
same ”hard-coding”, in other words, that the jumper in 10-pin jumper block of both remote controls
is in the same place.
CODING THE FOOT AND HAND CONTROL
To be made when afterwards accuired hand control is wanted to control same chair with foot
control.
The simpliest method is to open both controls and organize short circuit pieces at the same way
In most cases, opening of the foot control can be avoided, because the code is written in the bottom
of it. The code can be for example“2-3”, which means that there is two short circuit pieces used in
places 2 and 3. (Refer to the picture above.)
If there is no marking, the following procedure can take place instead of opening the foot control:
1. Open the hand control
2. Remove short circuit pieces from the 10 pin connector
3. Push
PROG
-button down from the hand control and keep it pushed
4. With a screwdriver make a short circuitry between 1-1, 2-2,...5-5
5. Put the short circuit piece in that place where the chair makes a ”Beep” sound
If there are 2 short circuit pieces at the foot control, the above mentioned doesn’t work. In this case:
1
2
3
4
5
