INSTALLATION LOAD CELL
- Available to use Max.8pcs of the same Load cell of ( 300Ω criterion )
- It should be horizontal to ground
- In case of Installing over 2pcs of load cell,Connect each line in parallel and
Insert a precise variable resistor under 50Ω in EX + line.
Andd minimize a output deviation of a load cell.
It may occur a weight error according to several deviation of a load cell.
- It may occur a weight error accoding to a temperture variation of load cell
- Please don`t weld(electospark) at the place where a load cell and equipments were installed,
However,Please devide the power into a connector of load cell in inevitable case

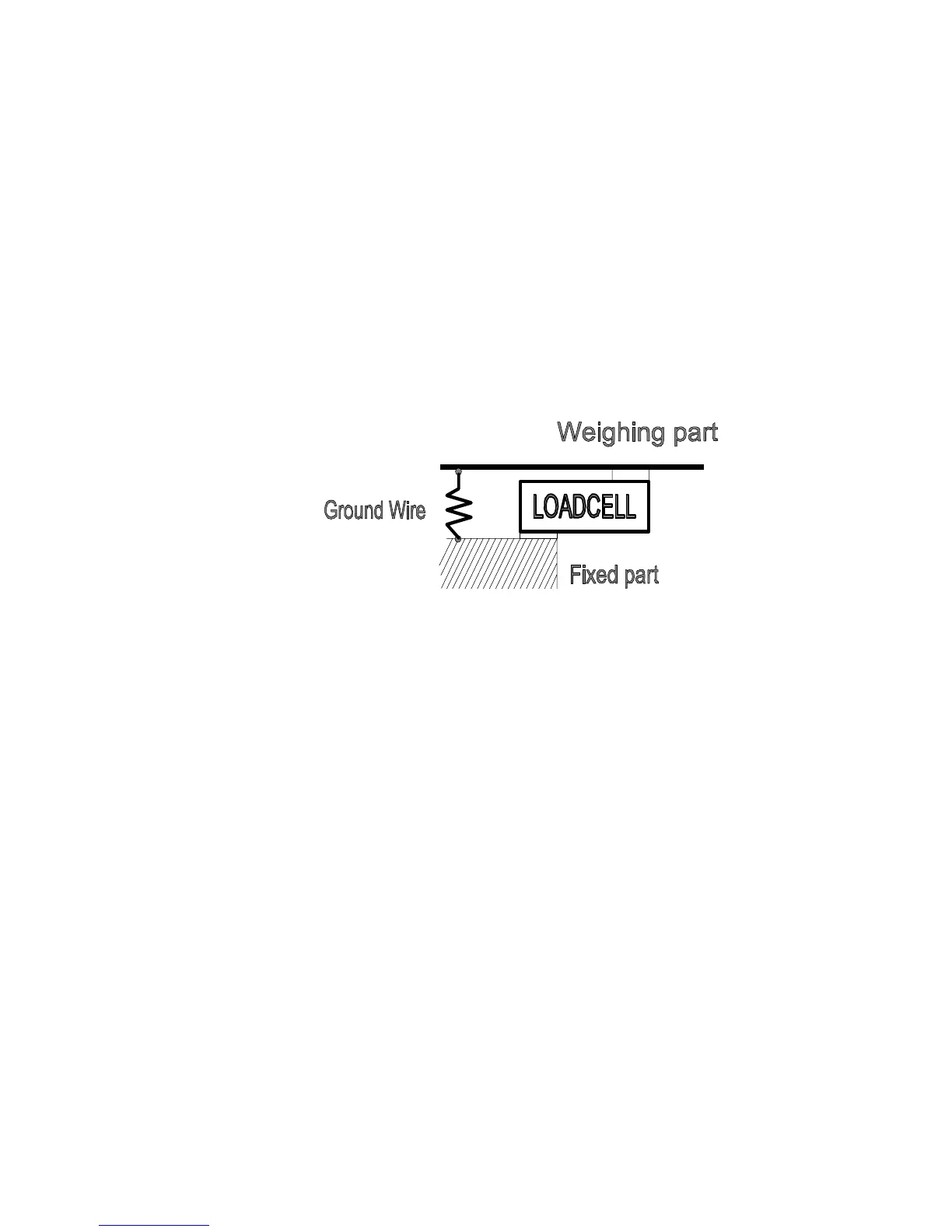

- Please connect the above and below construction of a load cell to the weighing part
Weighing a products electrosparks may be occurred.
1-3. FEATURES
- A compact Appearance by DIN regulations ( DIN 192 x 96 Panel Insertion )
- Easy to set up, change,confirm several values by the numeral key.
- Improved a convenience and precision of operating by Message Function.
- Can display a various information by F1,F2,F3 key for the end-user.
- Can make several key function use or disuse.(SETUP F10 Reference)
- Back up of Weight even electrospark case (SETUP F02 Reference)
- The permit or prohibition function of Calibration (ADJUST NO 10 Switch)
- Watch-Dog timer guards for self-diagnostics.
- Set up to Max. 1/20,000 display resolution
- Function available to change the unit value such as
kg, ton , lb ,g
( In case of Serial Interface & Printer )
- Available to change the function of the external input terminal (SETUP F16 Reference)
- Various option Functions for customer`s satisfaction such as RS-422/485, Current Loop,
Analog out, BCD Input/Output and so on.
- RS-232C Serial Interface & Printer was installed basically
- Avilable to print by either Serial Interface or Centronics Parallel Interface
