FINE MECHATRONICS FS8000

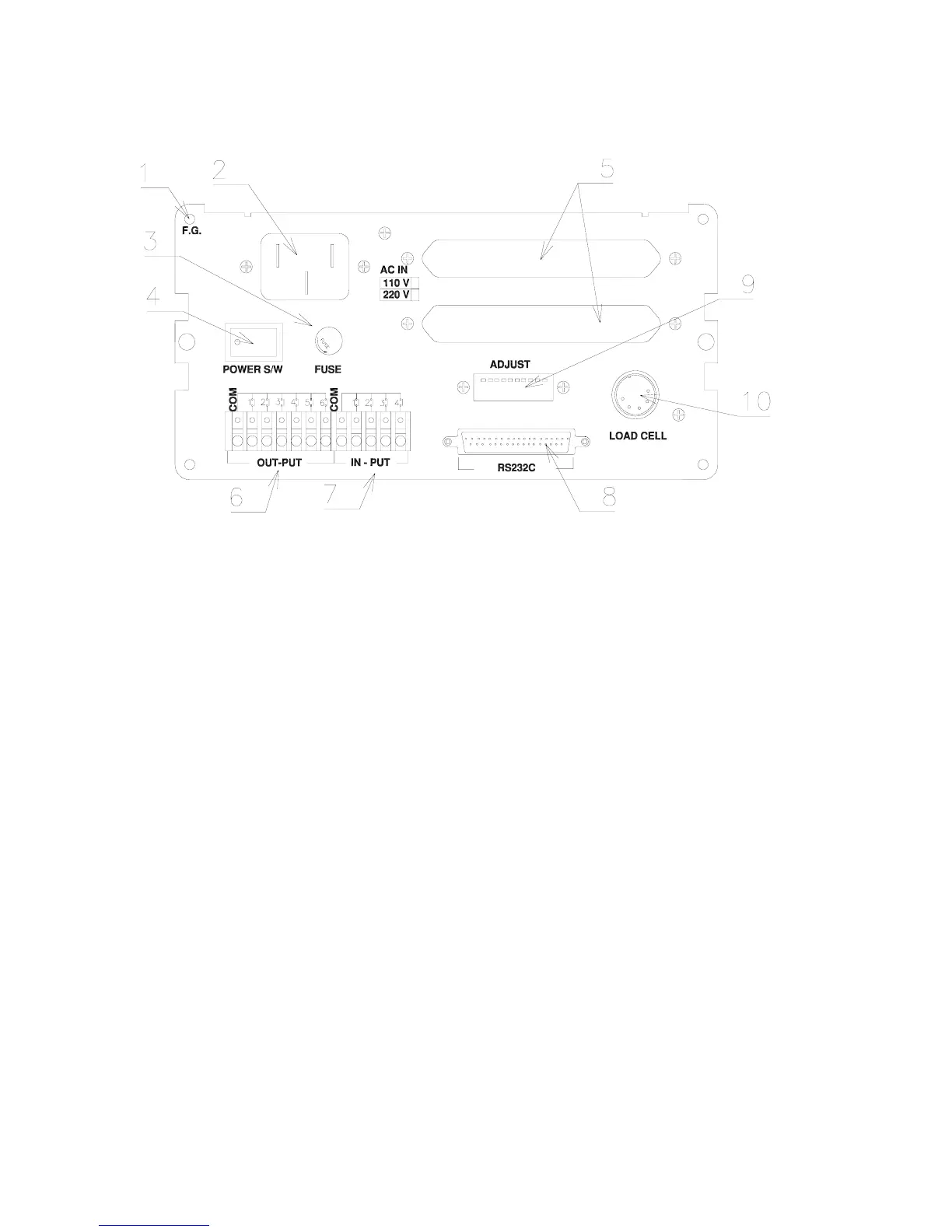

1-5. REAR-SIDE PANEL

1. F.G. :

Please earth it for safe.

2. AC IN : Available to change AC110/220V with multiple.

Before setting up,please confirm the power voltage.

Please change the connect terminal of 110V/220V after opening the cover

If you need to change. (It was setted with

AC220V at the first)

3. FUSE : please use the standard approved .

(FUSE) AC250V, 0.3A (a glass tube with small type)

4. POWER S/W) ON/OFF

It will be safe to use it after 10minuate for a precise measurements

5. DATA OUT (OPTION BOARD) :

Serial Communication.RS422, BCD OUTPUT, Analog Voltage,

Electric Currnet(Analog Out) 0-10V or 4-20mA, Print Out
