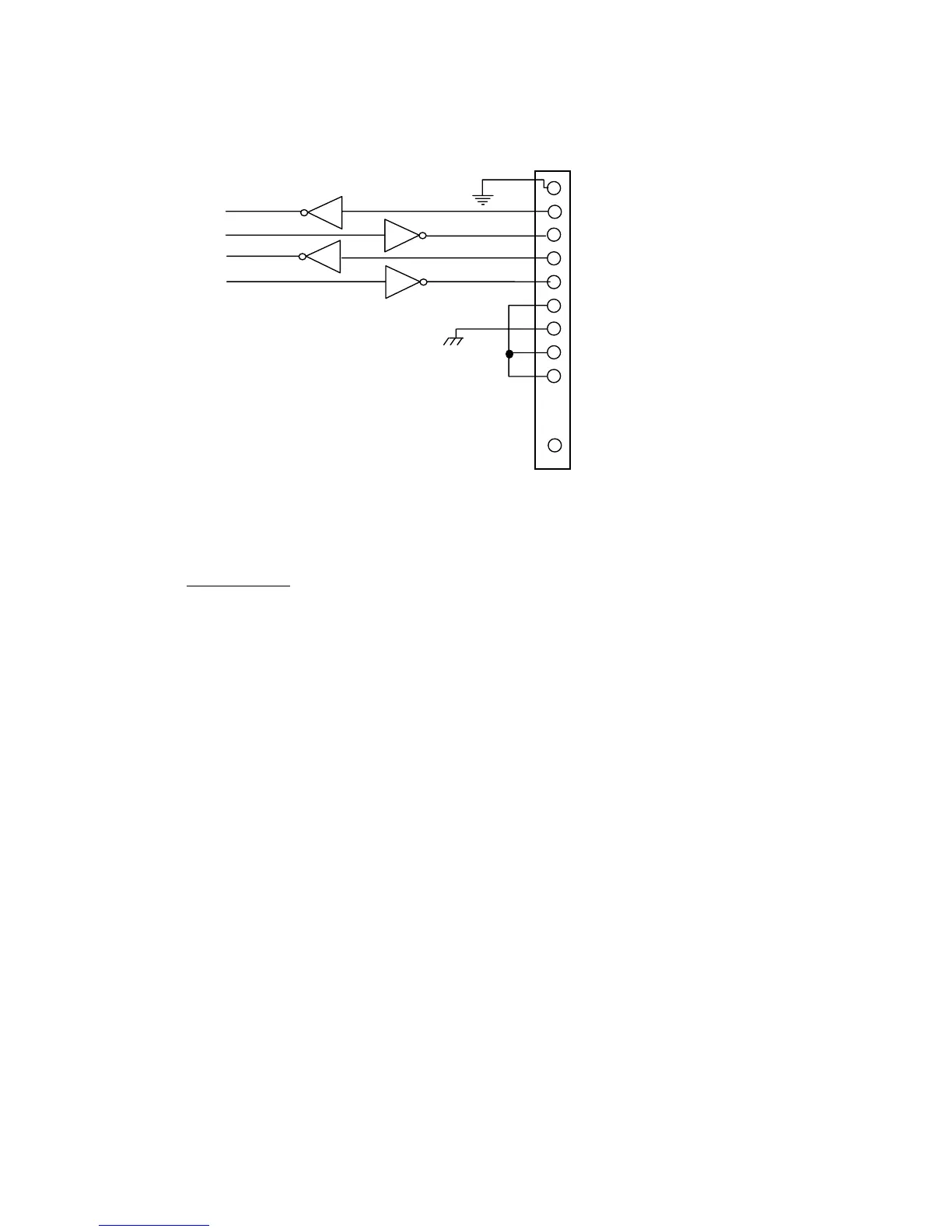

▩ RS-232C Circuit (25PIN -Type Female Connector)
▣ Receive Program example (Personal Computer)
In case of setting of F30-00, F31-00, F32-00, F33-00, F34-00
Basic Program
10 OPEN "COM1: 300, E, 7, 1, DS, CS" AS # 1
20 INPUT #1, A$, B$, C$
30 PRINT A$, B$, C$
40 GOTO 20
1 FG
2 RXD (from TXD)
3 TXD (to RXD)
4 CTS (from RTS)
5 RTS (to CTS)
6
7
8
20
.
25
RXD
TXD
CTS
RTS
