► CONNECTOR: CHAMP 57-40500(Ampheonol) (Female)
► TTL OPEN-COLLECTOR OUTPUT
► HOLD INPUT should be connected with OPEN COLLECTOR TYPE or Switch Earth.
► And OUTPUT DATA will hold while HOLD INPUT
Weight DATA
BUSY
► Signal Logic  Weight BCD DATA OUTPUT → Positive)/Negative .
 POLARITY OUTPUT → “ ― ” = L
 OVER → “ OVER ” = L
 BUSY → “ BUSY ” = L
 BCD HOLD → “ HOLD ” = L (INPUT)

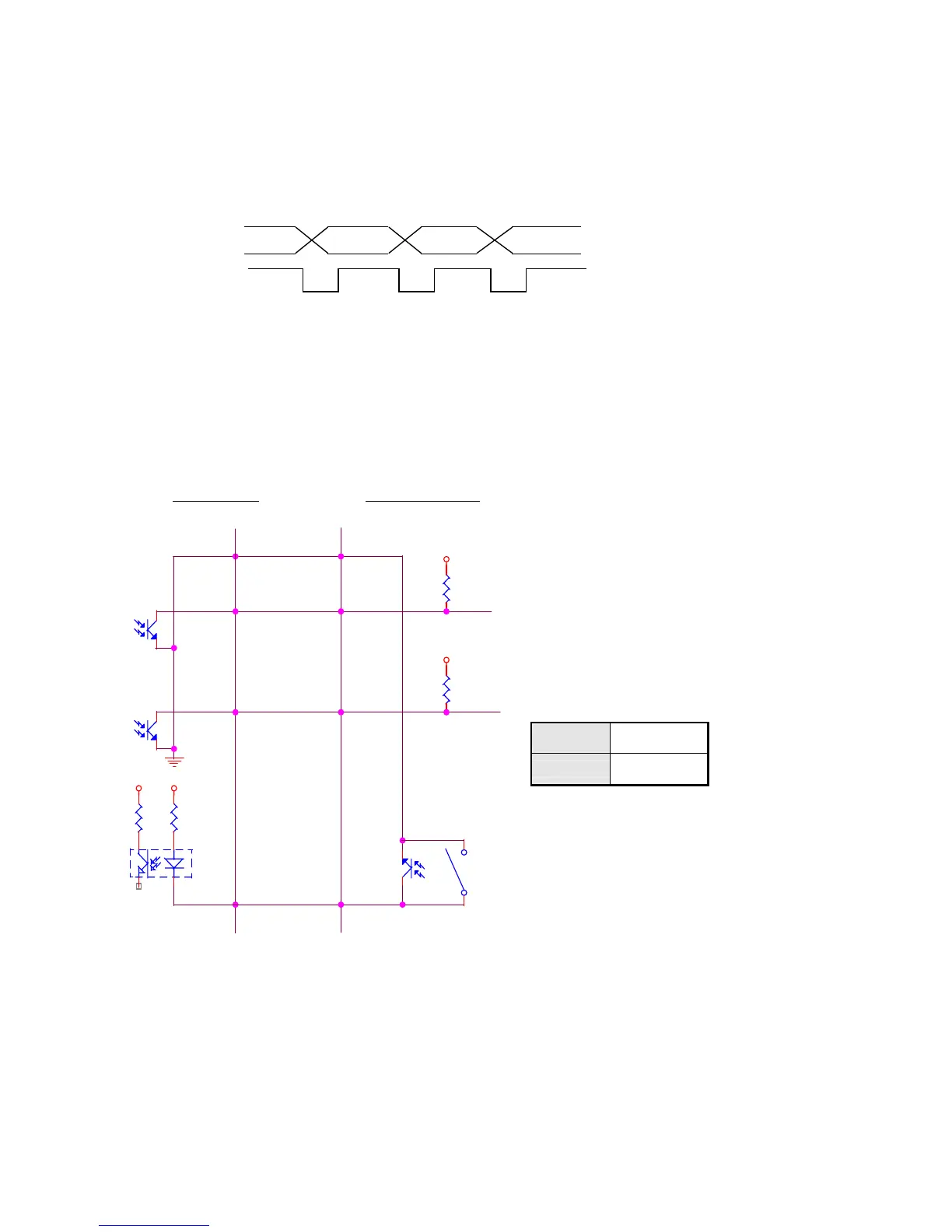

▩ BCD OUTPUT CIRCUIT
INPUT
► OUTPUT CIRCUIT IS OPEN COLLECTOR TYPE
► If output demand TTL LEVEL ,insert full up - resistance to a borad of BCD OPTION
► When inserting a fullup resistance ,please change 5v ∼ 30V in 37,39 NO
Resistance and Voltage .
5V = 1 kΩ , 10V = 2 kΩ , 15V = 2.7kΩ , 24V = 5 kΩ
Voltage 30V max.
Current 30mA max.
Inner Circuit Other equipment
FULLUP RESISTANCE
OUTPUT
vcc
+V
+V
+12V
COMMON(GND)
21
4 3
13 13
1 3
1 2 1 2
1 21 2
