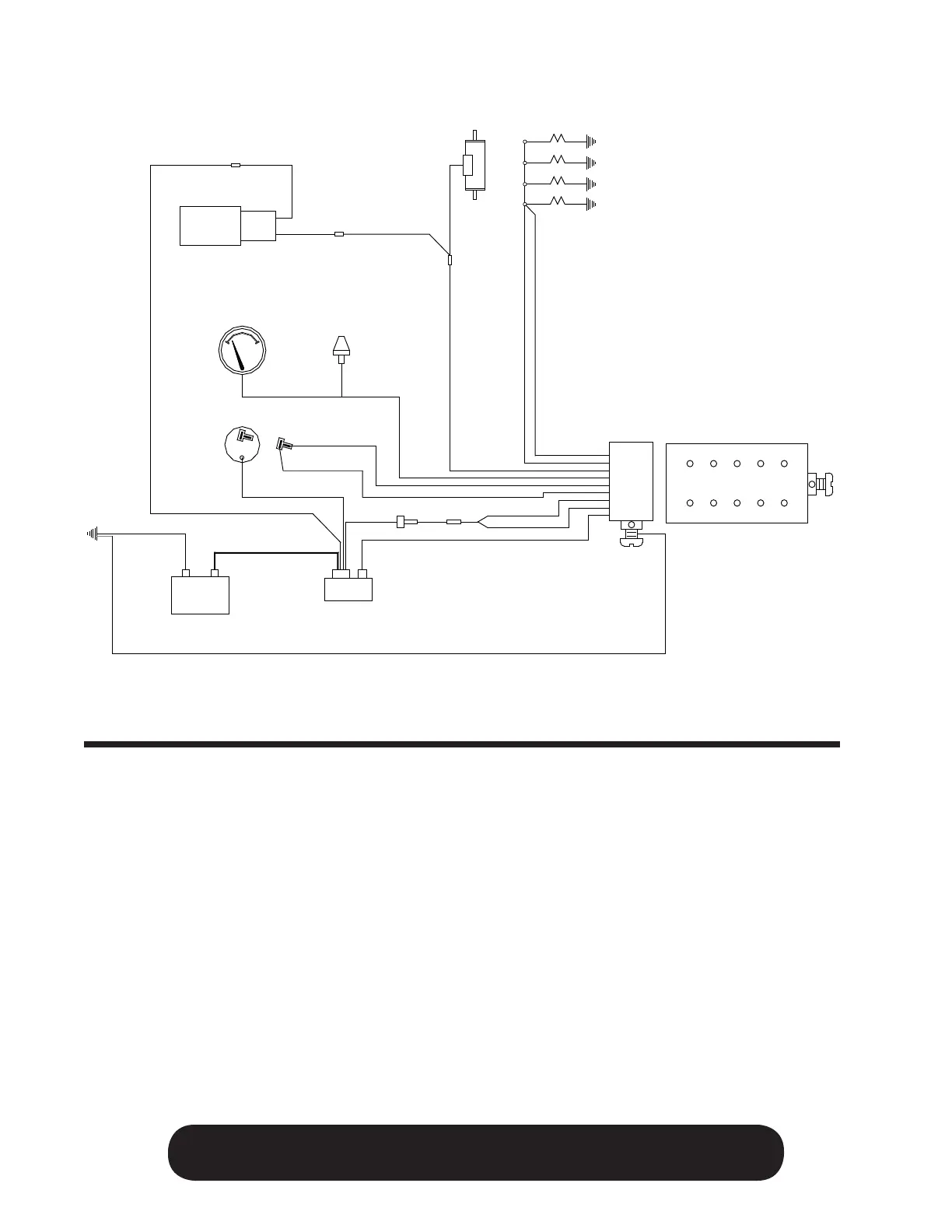

ENGINE WIRING
Part Number Description No. Req’d
031457B Wiring Harness 1
055568 Temperature Switch 1
004934 Oil Switch 1
002256-12 Battery (12-Volt) 1
031031 Battery Cable 1
000241 Ground Strap 1
080103 Fuel Pump 1
031458-01 Shutdown Solenoid 1
170028 Fuse w/Holder 1
005561 Electrical Housing 1
023602 Electrical Housing Plug 1
50
30
STARTER
BATTERY
ALTERNATOR
GLOW PLUGSFUEL PUMP
TEMPERATURE
GAUGE
OIL
SWITCH
BATTERY CABLE
GROUND
STRAP
12 Ga. BLUE
BROWN
WHITE
YELLOW
GREEN
BLACK
ORANGE
RED
12 Ga. BLACK
BROWN
BLUE
RED
54 321
10 9 8 7 6
Orange Brown Green Blue Red
Blue Black Green Yellow Red
Black
12 Ga.
16 Ga.
12 Ga.
16 Ga.
RED
GREEN
BLUE
SHUT DOWN
SYSTEM
BLUE
WHITE
38
WHEN ORDERING PARTS, BE SURE TO STATE
SERIAL NUMBER OF MACHINE
