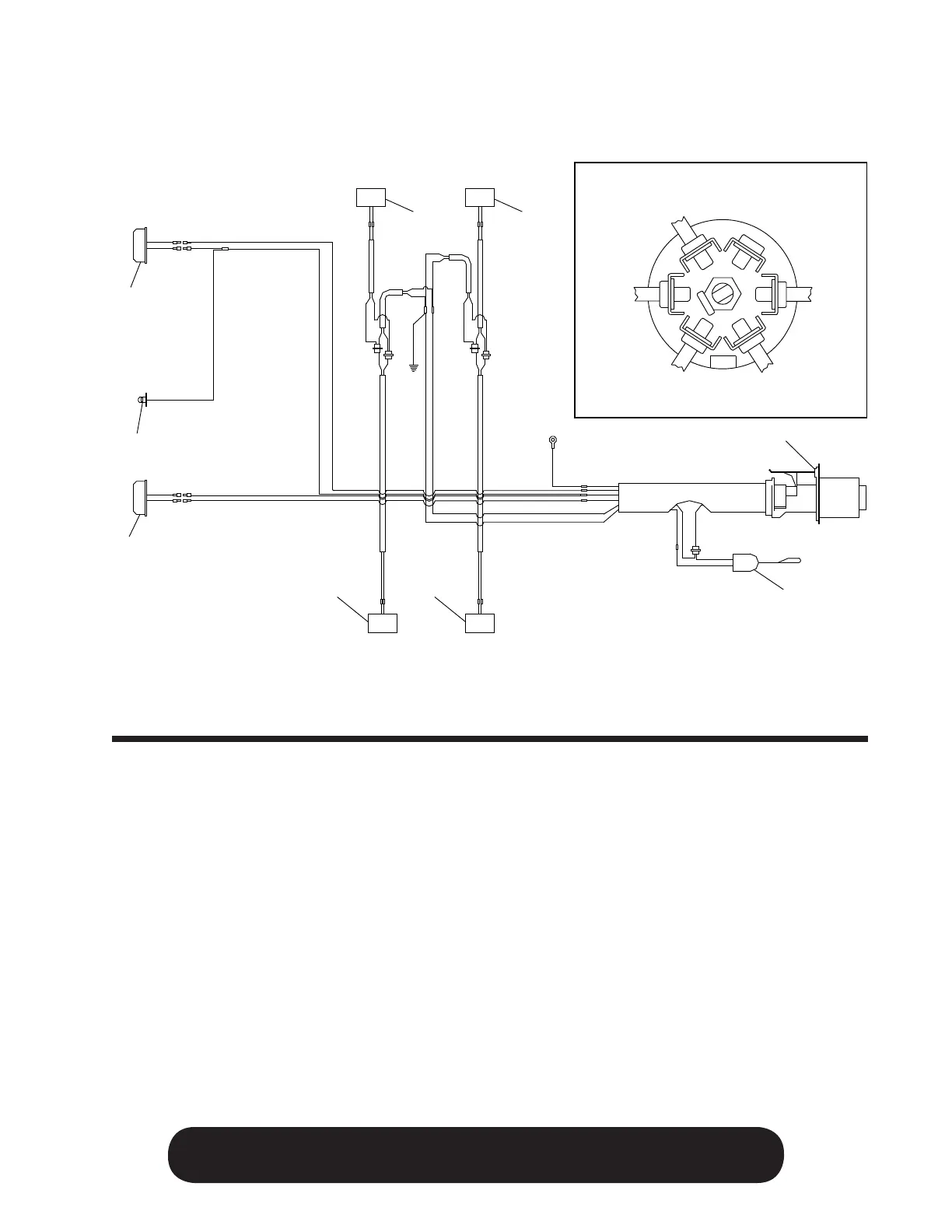

TRAILER WIRING
Ref. No. Part Number Description No. Req’d
055650 Trailer Wiring Harness 1
1 075592 7-Blade RV Style Trailer Plug 1
2 023424 Breakaway Switch 1
190029 Chain 5
005016 “S” Hook 2
005017 Snap 1
3 031222 Left-Hand Brake Assembly 1
4 031222 Right-Hand Brake Assembly 1
5 005137 Taillight-Left Hand Side 1
005137-A Lens, Taillight 1
6 005138 Taillight-Right Hand Assembly 1
005137-A Lens, Taillight 1
7 005436 License Plate Light 1
004720 License Plate Bracket 1
BROWN
RED
RED
BLACK
WHITE
BLACK
GREEN
YELLOW
STARTER
BLACK
BROWN
BROWN
YELLOW
BROWN
1
2
4
3
5
7
6
3
4
WHITE BLACK
WHITE WHITE BLACK
BLACK BLACK
NOT USED
RIGHT
TURN
(GREEN)
ELECTRIC BRAKES
(BLACK)
GROUND
(WHITE)
LEFT
TURN
(YELLOW)
TAIL LIGHTS
(BROWN)
TRAILER PLUG
