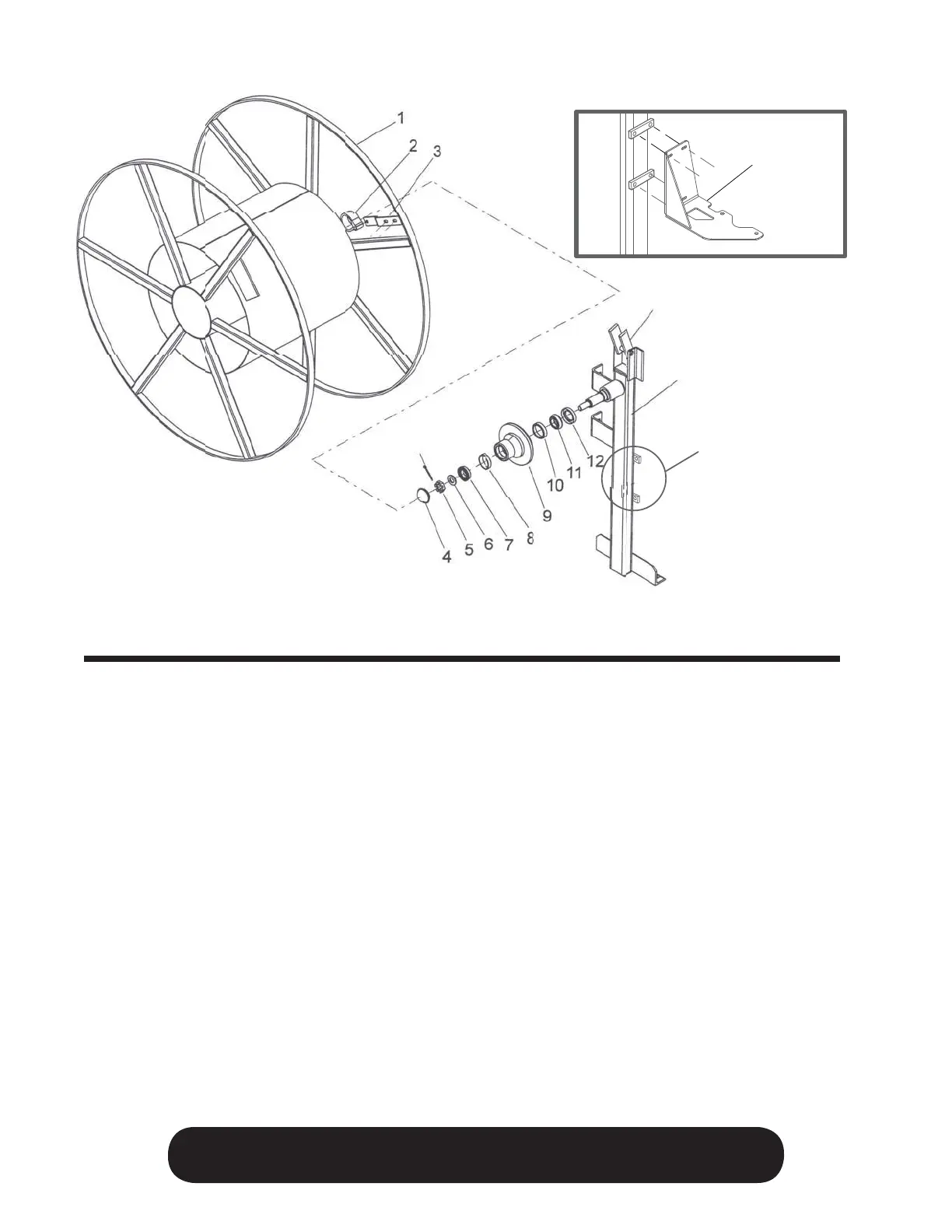

HOSE REEL ASSEMBLY
Ref. No. Part Number Description No. Req’d
055716 Hose Reel Assembly:
1 055714 Hose Reel Drum 1
2 055725 Drum Brake 1
3 F302-0004-03 Brake Arm 1
4 WL1504 Dust Cap 1
5 WLSN-750 Spindle Nut 1
6 WLSW-751 Spindle Washer 1
7 WLLM11949 Outer Cone 1
8 WLLM11910 Outer Cup 1
9 WLH-15-450E Hub Assembly 1
WLSTN-509 Lug Nuts 4
10 WLLM67010 Inner Cup 1
11 WLLM67048 Inner Cone 1
12 WLSL-150 Seal 1
13 F302-0008 Hose Reel Bracket 1
14 055713 Hose Reel Mount 1
15 055715-01 Hose Reel Lock 1
16 WLSCP-100 Cotter Pin 1
055715-02 Hose Filter Guard Bar 1
See View A
View A
13
14
15
16
46
WHEN ORDERING PARTS, BE SURE TO STATE
SERIAL NUMBER OF MACHINE
