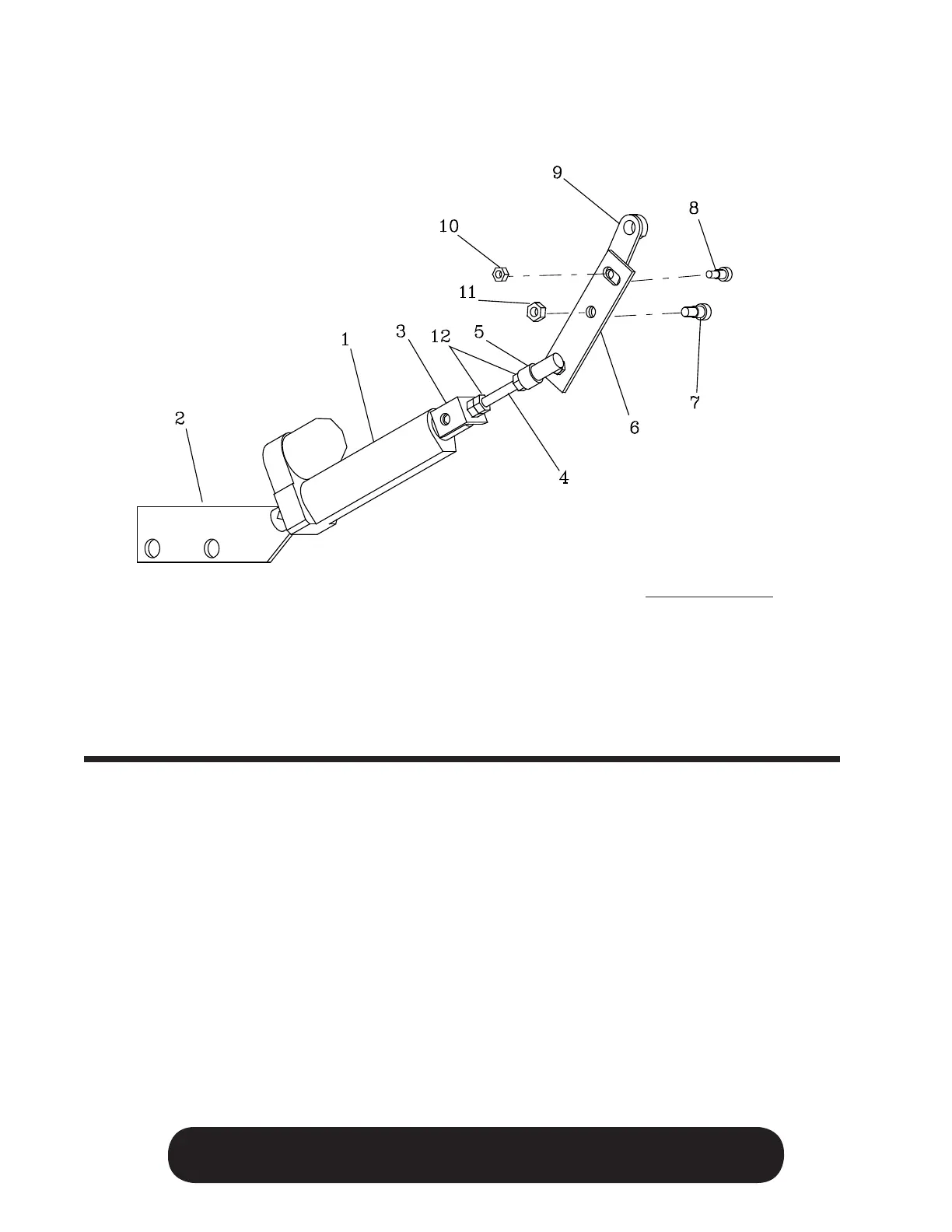

ELECTRIC THROTTLE
Ref. No. Part Number Description No. Req’d
1 023814 Electric Throttle 1
2 055691-02 Engine Base Mount 1
3 F302-0007 Adjusting Rod Arm Mount 1
4 055695-02 Adjusting Rod 1
5 012193 Ball Joint 1
6 055691-01 Throttle Pivot Arm 1
7 055693 Pivot Shoulder Bolt 1
8 055692 Sliding Shoulder Bolt 1
9 KU16271-57150 Fuel Injector Arm 1
10 Y#10L #10-24 Lock Nut 1
11 Y04L ¼-20 Lock Nut 1
12 Y04FJ ¼-28 Jam Nut 2
Wire Connection
White to Black
Black to Red
40
