FIOCCHETTI ECT-F TOUCH - Control Panel ECT-F TOUCH; Description of Control Board

13
Graph

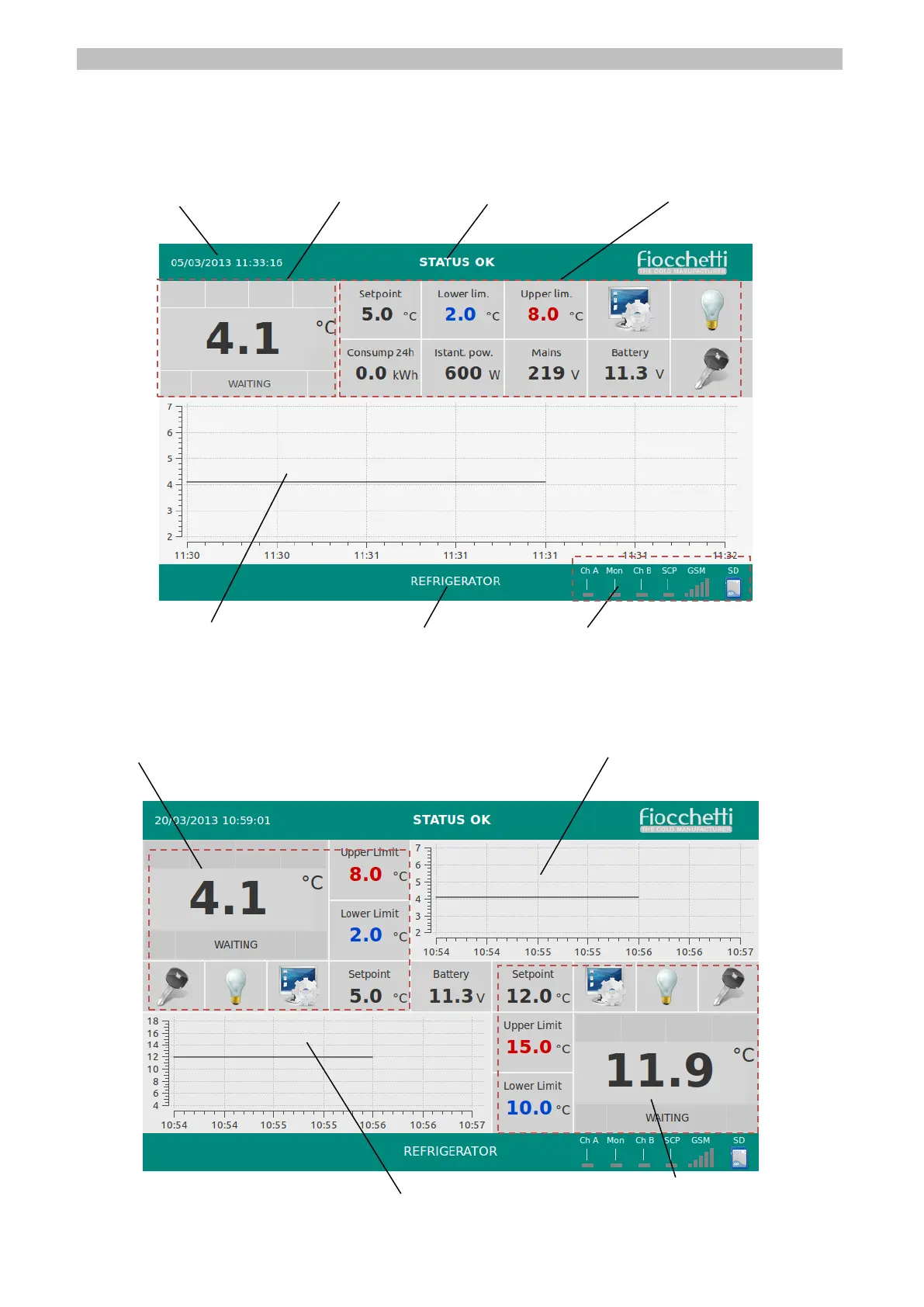

INFO 1 Panel
Equipment name
5 CONTROL PANEL ECT-F TOUCH
5.1 DESCRIPTION CONTROL BOARD ECT-F TOUCH
Equipment with one chamber
Equipment with two chambers
INFO Panel 1
st
chamber Graph 1
st
chamber
Graph 2
nd
chamber INFO Panel 2
nd
chamber
INFO 2 Panel
Equipment status
STATUS Panel
Date/Hour
Figure 6
Figure 7
